Toyota Granvia-Hybrid 2023 — Console Box & Bracket
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 55396-08030 | BRACKET, CONSOLE MOUNTING, NO.4 | 1 | |
Note:AXLH4# Production:2022-11 – 2026-05 | |||
| 55395-08020 | BRACKET, CONSOLE MOUNTING, NO.3 | 1 | |
Note:AXLH4# Production:2022-11 – 2026-05 | |||
| 55398-08030 | BRACKET, CONSOLE MOUNTING, NO.6 | 1 | |
Note:AXLH4# Production:2022-11 – 2026-05 | |||
| 55434-08080-C0 | PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | 1 | |
Note:AXLH40..L,P,X Production:2022-11 – 2026-05 Spec:BLACK,TRIM0#,2#,4# | |||
| 55443-08040 | KNOB, INSTRUMENT PANEL BOX DOOR | 1 | |
Note:AXLH4#..L,P,V Production:2022-11 – 2026-05 | |||
| 55445-08140-C0 | TRAY, INSTRUMENT PANEL | 1 | |
Note:AXLH40..L,P,X Production:2022-11 – 2026-05 Spec:BLACK,TRIM0#,2#,4# | |||
| 55620-08110-E0 | HOLDER ASSY, INSTRUMENT PANEL CUP | 1 | |
Note:AXLH40..P Production:2022-11 – 2025-09 Spec:WOLF WOOD,TRIM0#,2#,4# | |||
| 55625-08050 | TRAY, INSTRUMENT PANEL CUP HOLDER | 1 | |
Note:AXLH4#..L,P,V Production:2022-11 – 2026-05 | |||
| 58280-08050-C0 | BOOT ASSY, SHIFT LEVER | 1 | |
Note:AXLH40..P Production:2022-11 – 2026-05 Spec:BLACK,TRIM0#,2#,4# | |||
| 90467-08186-C3 | CLIP(FOR CONSOLE BOX) | 1 | |
Note:AXLH40..P Production:2022-11 – … Spec:BLACK,TRIM0#,2#,4# | |||
| 58816-08090-C0 | INSERT, CONSOLE BOX, FRONT NO.1 | 1 | |
Note:AXLH40..P Production:2022-11 – … Spec:BLACK,TRIM0#,2#,4# | |||
| 90467-05171 | CLIP, CONSOLE BOX INSERT, FRONT | 6 | |
Note:AXLH40 Production:2022-11 – 2023-09 Spec:LH | |||
| 90467-05171 | CLIP, CONSOLE BOX INSERT, FRONT | 7 | |
Note:AXLH40 Production:2022-11 – 2023-10 Spec:RH | |||
| 58817-08090-C0 | INSERT, CONSOLE BOX, FRONT NO.2 | 1 | |
Note:AXLH40..P Production:2022-11 – … Spec:BLACK,TRIM0#,2#,4# | |||
| 58821-08130-E0 | PANEL, CONSOLE, UPPER | 1 | |
Note:AXLH40..P Production:2022-11 – 2025-09 Spec:WOLF WOOD,TRIM0#,2#,4# | |||
| 58822-08080 | PANEL, CONSOLE, UPPER REAR | 1 | |
Note:AXLH4#..L,P,V Production:2022-11 – 2026-05 | |||
| 58831-08100 | GARNISH, CONSOLE UPPER PANEL, FRONT | 1 | |
Note:AXLH4#..L,P,V Production:2022-11 – 2026-05 | |||
| 58833-08140 | GARNISH, CONSOLE UPPER PANEL, NO.1 | 1 | |
Note:AXLH4#..L,P,V Production:2022-11 – 2026-05 | |||
| 58901-08050-C0 | BOX SUB-ASSY, CONSOLE, REAR | 1 | |
Note:AXLH40..L,P,X Production:2022-11 – 2026-05 Spec:BLACK,TRIM0#,2#,4# | |||
| 58913-08050-C0 | PANEL, BOX, NO.3 | 1 | |
Note:AXLH40..L,P,X Production:2022-11 – 2026-05 Spec:BLACK,TRIM0#,2#,4# | |||
| 58916-08100-C0 | MAT, BOX BOTTOM | 1 | |
Note:AXLH40..P Production:2022-11 – … Spec:BLACK,TRIM0#,2#,4# | |||
| 58959-60060 | CUSHION, CONSOLE COMPARTMENT DOOR | 2 | |
Note:AXLH4# Production:2022-11 – 2026-05 | |||
| 58991-08060 | BRACKET, CONSOLE BOX MOUNTING, UPPER | 1 | |
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … | |||
| 90467-C0047-C0 | CLIP | 1 | |
Note:AXLH40..P,X Production:2022-11 – … Spec:BLACK,TRIM0#,2#,4# | |||
| 58996-08040 | BRACKET, CONSOLE BOX MOUNTING, NO.2 | 1 | |
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … | |||
| 90183-06032 | standard | — | |
| 90167-C0004 | standard | — | |
| 90467-C0048 | standard | — | |
| 90467-C0087 | standard | — | |
| 90119-C0107 | standard | — | |
Replacements:91673-80616 (fitment: unknown) | |||
| 90159-C0022 | standard | — | |
| 90167-C0021 | standard | — | |
| 93560-54014 | standard | — | |
| 90467-05170 | standard | — | |

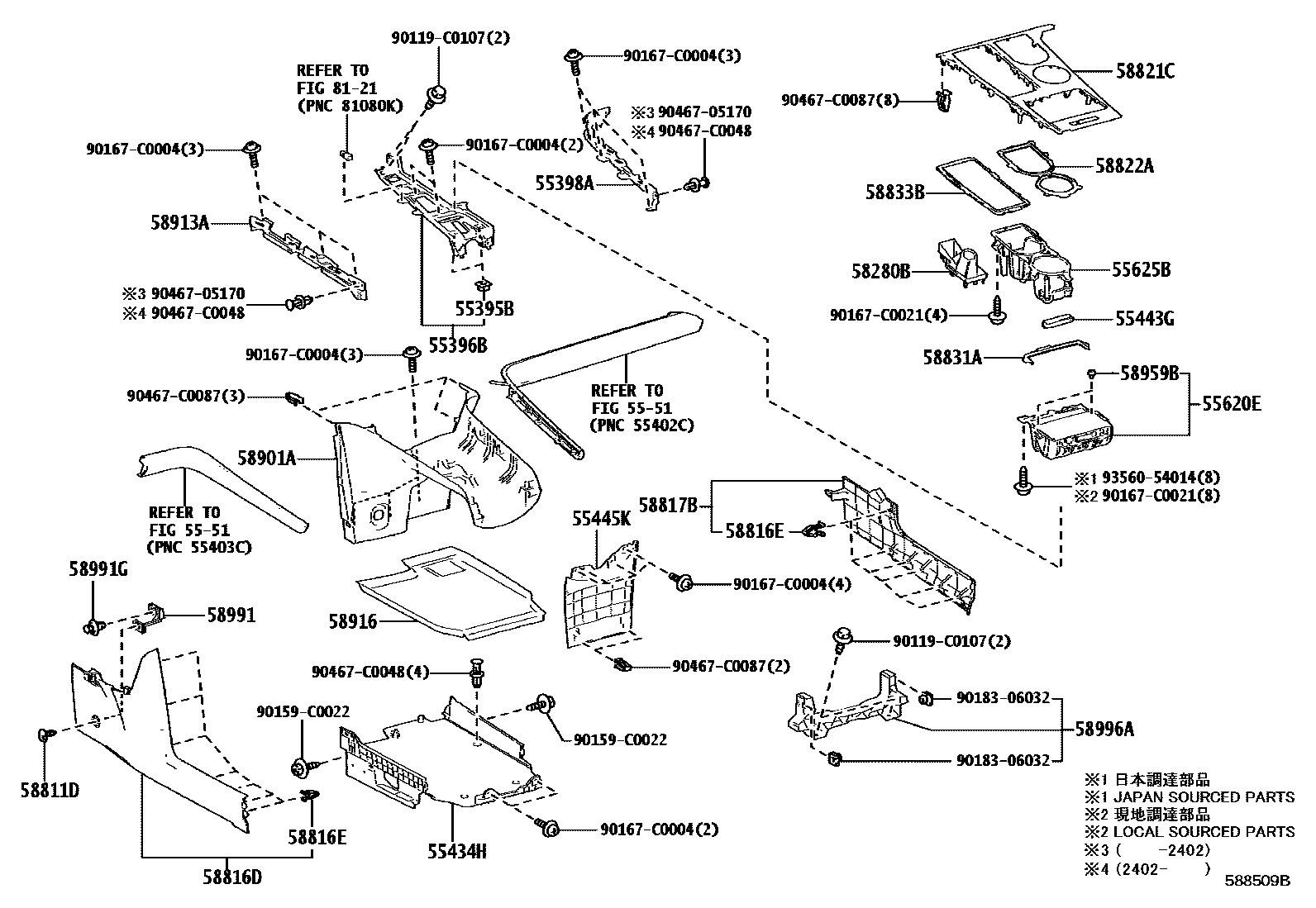

Diagram
34 parts
