Open RegionYearModelModelCode Details
General 2023 GRANVIA HYBRID AXLH40L-QNXPHC
Catalog: TOYOTA202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Color Code: 221 Trim Code: LA20 Production: 202211-999999 Model Short: AXLH40L-QNXPHC Region: OTHER Native Region: GR

Toyota Granvia-Hybrid 2023 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84921-07030-C1 KNOB, POWER SEAT SWITCH, RH 1
Note:AXLH4#..P,V,W Production:2022-11 – 2026-05 Spec:BLACK,TRIM2#,4#
84923-08090-C0 SWITCH, REAR POWER SEAT, NO.1, RH 1
Note:AXLH40..P Production:2023-03 – 2024-04 Spec:BLACK,TRIM2#,4#
— Part does not apply to this vehicle configuration. C9277 —
— Part does not apply to this vehicle configuration. C8412 —
84922-07050-C1 SWITCH, FRONT POWER SEAT, RH 1
Note:AXLH4#..P,V,W Production:2022-11 – … Spec:BLACK
84921-0R020-C0 KNOB, POWER SEAT SWITCH, LH 1
Note:AXLH4#..P,V,W Production:2022-11 – 2026-05 Spec:BLACK,TRIM2#,4#
84921-0R010-C0 KNOB, POWER SEAT SWITCH, LH 1
Note:AXLH4#..P,V,W Production:2022-11 – 2026-05 Spec:BLACK,TRIM2#,4#
84922-08060-C0 SWITCH, FRONT POWER SEAT, LH 1
Note:AXLH4#..P,V Production:2022-11 – 2026-05 Spec:BLACK,TRIM2#,4#
89710-08020 COMPUTER ASSY, POSITION CONTROL 1
Note:AXLH40..L,P,X Production:2022-11 – 2024-04
84921-07040-C1 KNOB, POWER SEAT SWITCH, RH 1
Note:AXLH4#..P,V,W Production:2022-11 – 2026-05 Spec:BLACK,TRIM2#,4#
85532-0R120 SOCKET, USB CHARGER, NO.3 1
Note:AXLH40..P Production:2023-03 – 2024-04
84923-08100-C0 SWITCH, REAR POWER SEAT, NO.1, LH 1
Note:AXLH40..P Production:2023-03 – 2024-04 Spec:BLACK,TRIM2#,4#
— Part does not apply to this vehicle configuration. 89714B —
— Part does not apply to this vehicle configuration. 89714C —
— Part does not apply to this vehicle configuration. 84923K —
— Part does not apply to this vehicle configuration. 84923J —
— Part does not apply to this vehicle configuration. 85532G —
— Part does not apply to this vehicle configuration. 84920M —
93560-54012 standard —
90167-C0016 standard —
Replacements:93560-54012 (fitment: unknown)

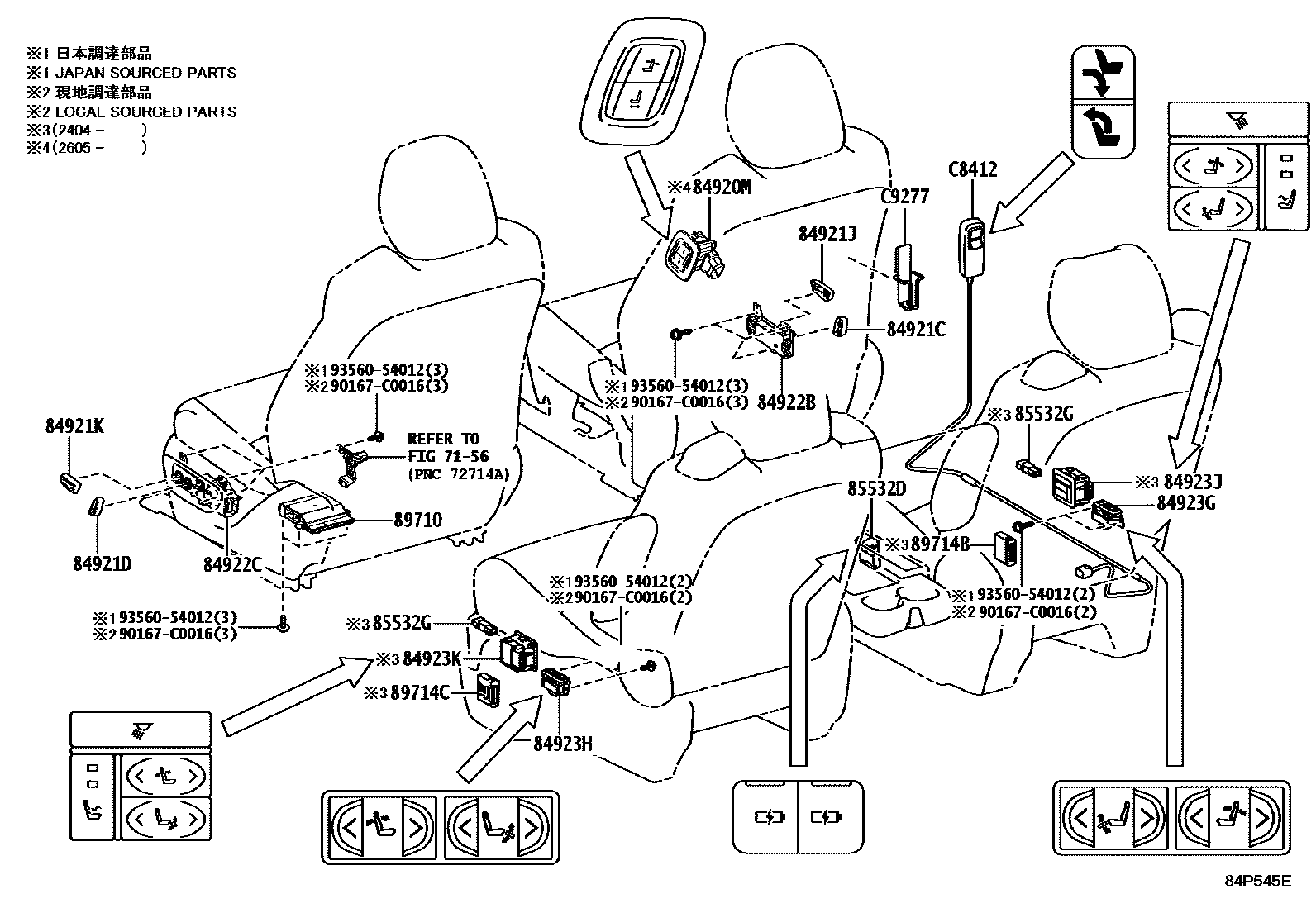

Diagram

12 parts
Toyota Granvia-Hybrid 2023 — Switch & Relay & Computer
