Open RegionYearModelModelCode Details
General 2023 GRANVIA HYBRID AXLH40L-QNXXHC
Catalog: TOYOTA202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Color Code: 089 Trim Code: LA41 Production: 202211-999999 Model Short: AXLH40L-QNXXHC Region: OTHER Native Region: GR

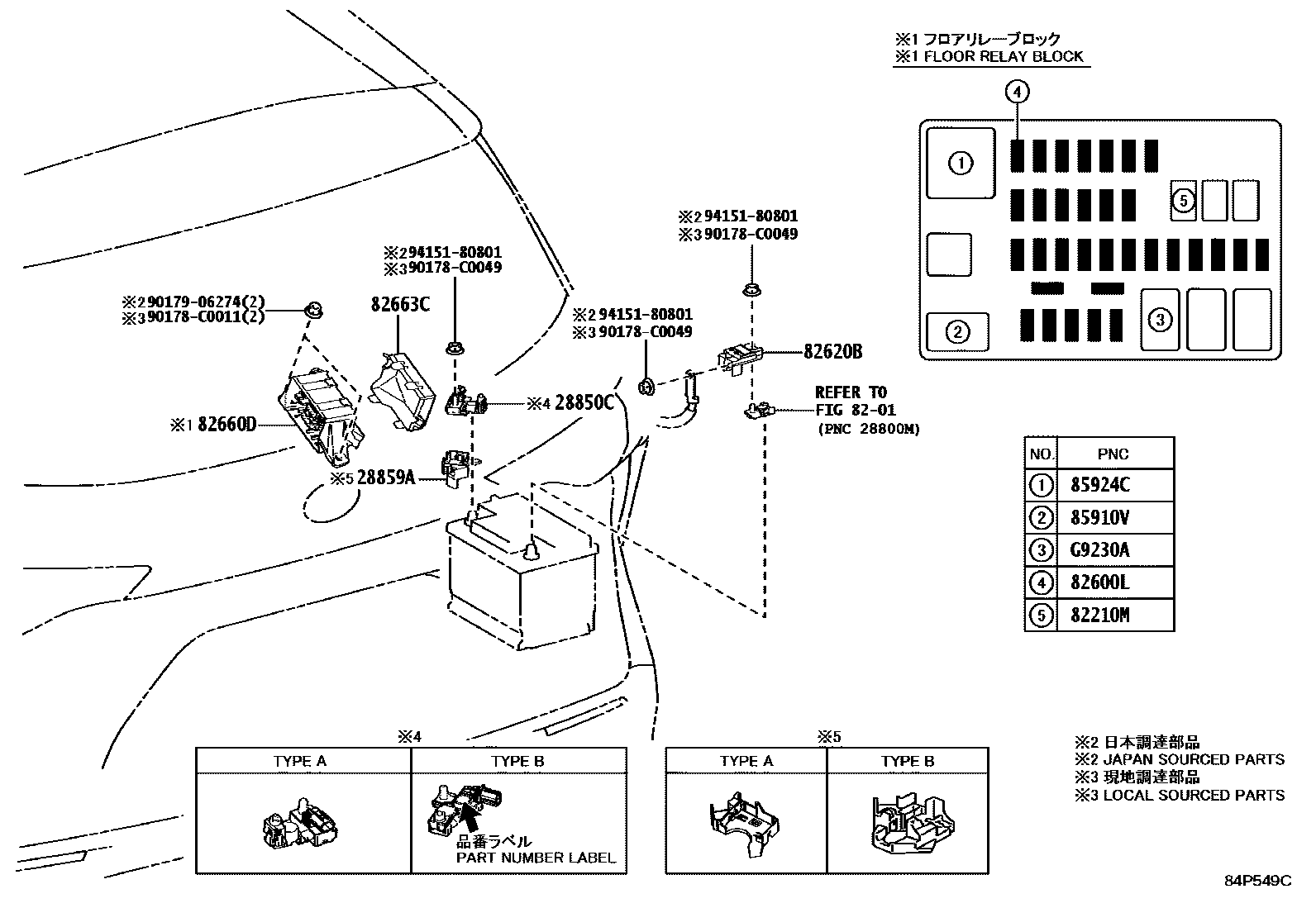

Toyota Granvia-Hybrid 2023 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
82741-08110 BLOCK ASSY, RELAY 1
Note:AXLH4#..E,V,W,X Production:2022-11 – …
82620-08090 BLOCK ASSY, FUSIBLE LINK 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – …
90987-02031 RELAY, IGCT 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – …
90987-T2005 RELAY, SEAT HEATER 1
Note:AXLH4#..P,V,W,X Production:2022-11 – … Replacements:90987-02027 (fitment: unknown)
90987-02027 RELAY, BATTERY FAN, NO.1 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, BATTERY FAN, NO.1 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90080-82050 LUGGAGE ROOM FUSE 1
Note:AXLH4#..E,W,X Production:2022-11 – … Replacements:90982-09020 (fitment: unknown) Spec:7.5A,MINI FUSE,BROWN,(L) Spec Note:7.5A,MINI FUSE,BROWN,(Local made)
90080-82051 LUGGAGE ROOM FUSE 1
Note:AXLH4#..E,W,X Production:2022-11 – … Replacements:90982-09021 (fitment: unknown) Spec:10A,MINI FUSE,RED,(L) Spec Note:10A,MINI FUSE,RED,(Local made)
90080-82052 LUGGAGE ROOM FUSE 1
Note:AXLH4#..E,W,X Production:2022-11 – … Replacements:90982-09022 (fitment: unknown) Spec:15A,MINI FUSE,BLUE,(L) Spec Note:15A,MINI FUSE,BLUE,(Local made)
90080-82053 LUGGAGE ROOM FUSE 1
Note:AXLH4#..E,W,X Production:2022-11 – … Replacements:90982-09023 (fitment: unknown) Spec:20A,MINI FUSE,YELLOW,(L) Spec Note:20A,MINI FUSE,YELLOW,(Local made)
90080-82054 LUGGAGE ROOM FUSE 1
Note:AXLH4#..E,W,X Production:2022-11 – … Replacements:90982-09025 (fitment: unknown) Spec:30A,MINI FUSE,GREEN,(L) Spec Note:30A,MINI FUSE,GREEN,(Local made)
90080-82055 LUGGAGE ROOM FUSE 1
Note:AXLH4#..E,W,X Production:2022-11 – … Replacements:90982-09024 (fitment: unknown) Spec:25A,MINI FUSE,(L) Spec Note:25A,MINI FUSE,(Local made)
90982-09020 LUGGAGE ROOM FUSE 1
Note:AXLH4#..E,V,W,X Production:2022-11 – … Spec:7.5A,MINI FUSE,BROWN,(J) Spec Note:7.5A,MINI FUSE,BROWN,(Japan made)
90982-09021 LUGGAGE ROOM FUSE 1
Note:AXLH4#..E,V,W,X Production:2022-11 – … Spec:10A,MINI FUSE,RED,(J) Spec Note:10A,MINI FUSE,RED,(Japan made)
90982-09022 LUGGAGE ROOM FUSE 1
Note:AXLH4#..E,V,W,X Production:2022-11 – … Spec:15A,MINI FUSE,BLUE,(J) Spec Note:15A,MINI FUSE,BLUE,(Japan made)
90982-09023 LUGGAGE ROOM FUSE 1
Note:AXLH4#..E,V,W,X Production:2022-11 – … Spec:20A,MINI FUSE,YELLOW,(J) Spec Note:20A,MINI FUSE,YELLOW,(Japan made)
90982-09024 LUGGAGE ROOM FUSE 1
Note:AXLH4#..E,V,W,X Production:2022-11 – … Spec:25A,MINI FUSE,(J) Spec Note:25A,MINI FUSE,(Japan made)
90982-09025 LUGGAGE ROOM FUSE 1
Note:AXLH4#..E,V,W,X Production:2022-11 – … Spec:30A,MINI FUSE,GRN,(J) Spec Note:30A,MINI FUSE,GRN,(Japan made)
90982-08294 FUSIBLE LINK 1
Note:AXLH4#..E,V,W,X Production:2022-11 – … Spec:40A,FEMALE,GRN,58V
90982-08295 FUSIBLE LINK 1
Note:AXLH4#..E,V,W,X Production:2022-11 – … Spec:30A,FEMALE,PNK,58V
90982-08304 FUSIBLE LINK 1
Note:AXLH4#..E,V,W,X Production:2022-11 – … Spec:60A,TERM.:FEMALE,YEL
28859-F0261 HOLDER, BATTERY CURRENT SENSOR 1
Note:A25..AXLH4# Production:2022-11 – 2026-05 Spec:TYPE A
28859-F0340 HOLDER, BATTERY CURRENT SENSOR 1
Note:A25..AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:TYPE B
28850-0Z020 SENSOR ASSY, BATTERY STATE 1
Note:A25..AXLH4# Production:2022-11 – 2026-05 Spec:TYPE B,P/N288500Z020
28850-F2010 SENSOR ASSY, BATTERY STATE 1
Note:A25..AXLH4# Production:2022-11 – 2026-05 Spec:TYPE B,P/N28850F2010
28850-K0010 SENSOR ASSY, BATTERY STATE 1
Note:A25..AXLH4# Production:2022-11 – 2026-05 Spec:TYPE A
82663-08130 COVER, RELAY BLOCK LOWER, NO.4 1
Note:AXLH4#..E,V,W,X Production:2022-11 – …
94151-80801 standard —
90178-C0049 standard —
90179-06274 standard —
90178-C0011 standard —

Diagram

31 parts
Toyota Granvia-Hybrid 2023 — Switch & Relay & Computer
