Toyota Granvia-Hybrid 2023 — Cylinder Block
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90250-C0010 | PIN, STRAIGHT(FOR CRANKCASE) | 2 | |
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:L=14,OD=6 | |||
| 90250-10113 | PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | 2 | |
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:L=22,OD=10,(J) Spec Note:L=22,OD=10,(Japan made) | |||
| 90250-C0012 | PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | 2 | |
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Replacements:90250-10113 (fitment: unknown) Spec:L=22,OD=10,(L) Spec Note:L=22,OD=10,(Local made) | |||
| 90341-18023 | PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK) | 1 | |
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 | |||
| 90250-C0010 | PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET) | 2 | |
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 | |||
| 90430-18008 | GASKET(FOR CLYINDER BLOCK) | 1 | |
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 | |||
| 15708-25010 | NOZZLE SUB-ASSY, OIL, NO.1 | 4 | |
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(J) Spec Note:(Japan made) | |||
| 15708-F2010 | NOZZLE SUB-ASSY, OIL, NO.1 | 4 | |
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(L) Spec Note:(Local made) | |||
| 15709-25010 | NOZZLE SUB-ASSY, OIL, NO.2 | 4 | |
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(J) Spec Note:(Japan made) | |||
| 15709-F2010 | NOZZLE SUB-ASSY, OIL, NO.2 | 4 | |
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(L) Spec Note:(Local made) | |||
| 90105-10582 | standard | — | |
| 90105-C0423 | standard | — | |
| 90105-C0424 | standard | — | |
| 90110-C0001 | standard | — | |
| 90110-06040 | standard | — | |

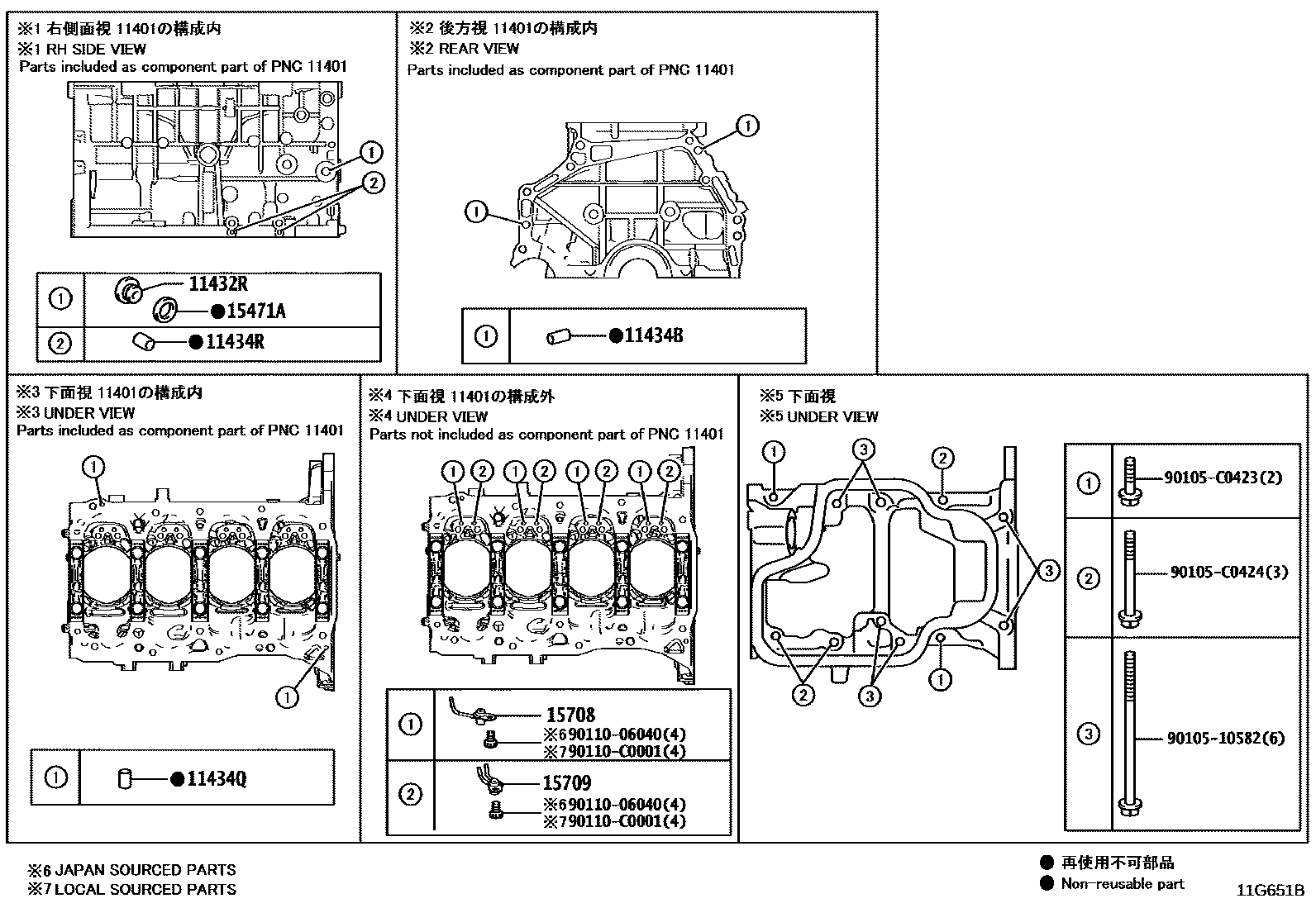

Diagram
15 parts
