Toyota Granvia-Hybrid 2023 — Console Box & Bracket
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 58915-08080 | PANEL, BOX BOTTOM | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 | |||
| 58995-08040 | BRACKET, CONSOLE BOX MOUNTING, NO.1 | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 | |||
| 58832-08060 | GARNISH, CONSOLE UPPER PANEL, REAR | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 | |||
| 58904-08110-C0 | PANEL SUB-ASSY, CONSOLE REAR END, NO.2 | 1 | |
Note:AXLH40..L Production:2022-11 – 2026-05 Spec:BLACK,TRIM0#,1#,2#,4# | |||
| 58815-08050 | CARPET, CONSOLE BOX | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 | |||
| 58920-08120-B4 | ARMREST ASSY, REAR CONSOLE | 1 | |
Note:AXLH40..L,P Production:2022-11 – 2024-04 Spec:NEUTRAL WARM GRAY,TRIM2# | |||
| 58920-08130-B1 | ARMREST ASSY, REAR CONSOLE | 1 | |
Note:AXLH40..L,P Production:2022-11 – 2024-04 Spec:NEUTRAL WARM GRAY,TRIM2# | |||
| 58844-08090-C0 | BEZEL, CONSOLE BOX | 1 | |
Note:AXLH40..L Production:2022-11 – 2026-05 Spec:BLACK,TRIM0#,2#,4# | |||
| 58923-08050-C0 | PANEL, CONSOLE REAR END | 1 | |
Note:AXLH40..L Production:2022-11 – 2026-05 Spec:BLACK,TRIM0#,2#,4# | |||
| 58925-08030-C0 | POCKET, CONSOLE BOX, REAR | 1 | |
Note:AXLH40..L Production:2022-11 – 2026-05 Spec:BLACK,TRIM0#,2#,4# | |||
| 58816-08100-C0 | INSERT, CONSOLE BOX, FRONT NO.1 | 1 | |
Note:AXLH40..L,P,X Production:2022-11 – 2026-05 Spec:BLACK,TRIM0#,2#,4# | |||
| 58912-08040-C0 | PANEL, BOX SIDE, NO.2 | 1 | |
Note:AXLH40..L,P,X Production:2022-11 – 2026-05 Spec:BLACK,TRIM0#,2#,4# | |||
| 58817-08100-C0 | INSERT, CONSOLE BOX, FRONT NO.2 | 1 | |
Note:AXLH40..L,P,X Production:2022-11 – 2026-05 Spec:BLACK,TRIM0#,2#,4# | |||
| 58911-08040-C0 | PANEL, BOX SIDE, NO.1 | 1 | |
Note:AXLH40..L,P,X Production:2022-11 – 2026-05 Spec:BLACK,TRIM0#,2#,4# | |||
| 58810-08280-C1 | BOX ASSY, CONSOLE | 1 | |
Note:AXLH40..L,P Production:2022-11 – 2024-04 Spec:BLACK/DARK GRAY,TRIM2# | |||
| 90467-C0087 | standard | — | |
| 90467-C0088 | standard | — | |
| 90468-08048 | standard | — | |
| 90167-C0004 | standard | — | |
| 90467-C0048 | standard | — | |
| 90119-C0107 | standard | — | |
Replacements:91673-80616 (fitment: unknown) | |||
| 90167-C0021 | standard | — | |
| 90183-06032 | standard | — | |
| 90467-05170 | standard | — | |

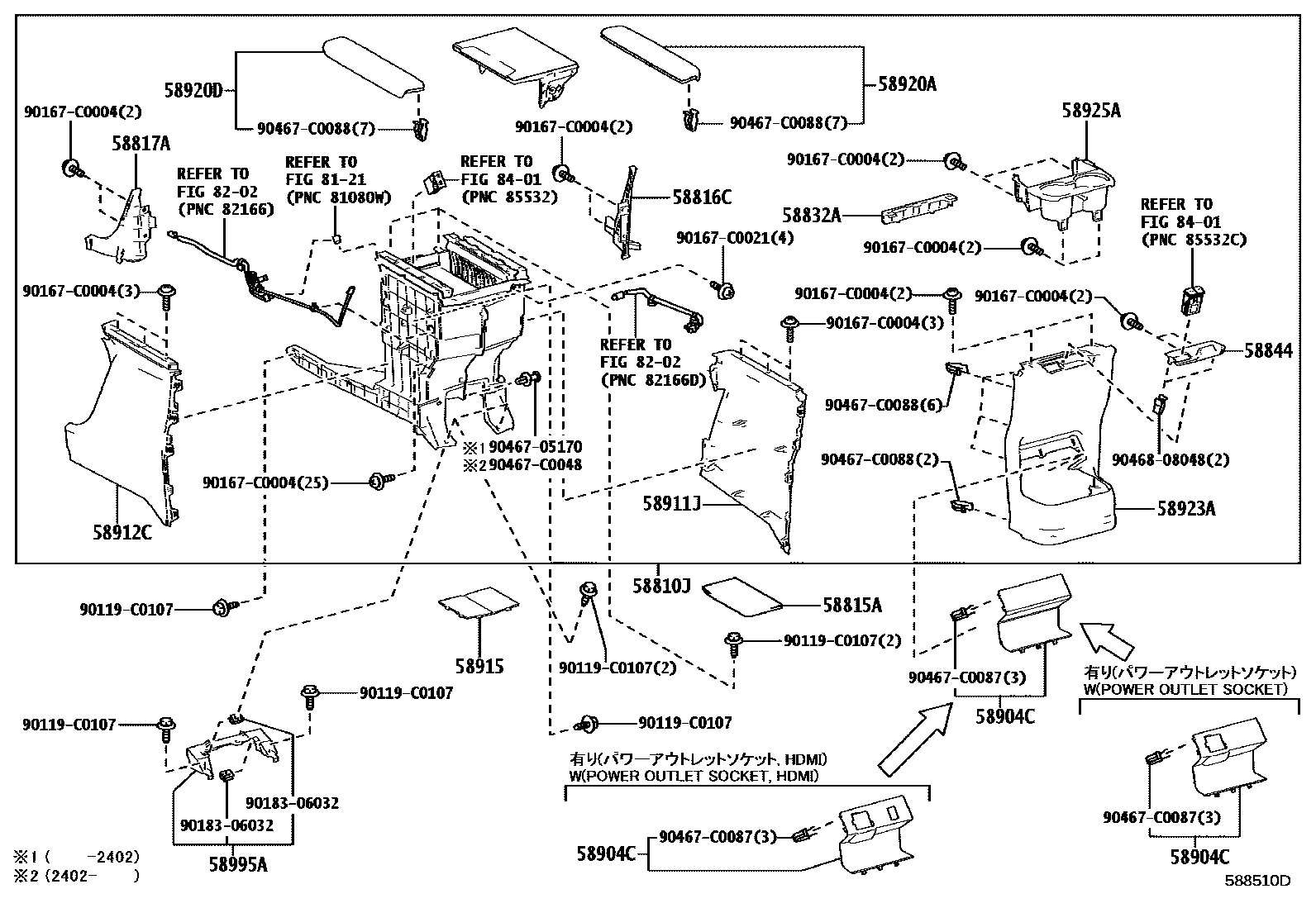

Diagram
24 parts
