Toyota Corolla 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84250-02E90 | SWITCH ASSY, STEERING PAD | 1 | |
Note:NRE210..ENTRY Production:2021-01 – … | |||
| 84308-02170 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:MZEA11,ZWE211;NRE210..ENTRY,MID Production:2019-08 – 2023-04 | |||
| 84652-07150 | SWITCH ASSY, WINDSHIELD WIPER | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 8924B-07010 | SENSOR, STEERING | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 84610F | — |
| — | Part does not apply to this vehicle configuration. | 84610D | — |
| — | Part does not apply to this vehicle configuration. | 84523 | — |
| 84319-07010 | HOUSING, STEERING WHEEL SWITCH | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 84329-07010 | SWITCH, TURN SIGNAL | 1 | |
Note:NRE210..ENTRY,MID Production:2019-08 – … | |||
| 84450-06060 | SWITCH ASSY, IGNITION OR STARTER | 1 | |
Note:NRE210..ENTRY Production:2019-08 – 2023-05 | |||
| 84052-06010 | SWITCH ASSY, UN-LOCK WARNING | 1 | |
Note:NRE210..ENTRY Production:2019-08 – 2023-05 | |||
| 90159-C0010 | standard | — | |
| 90159-50265 | standard | — | |

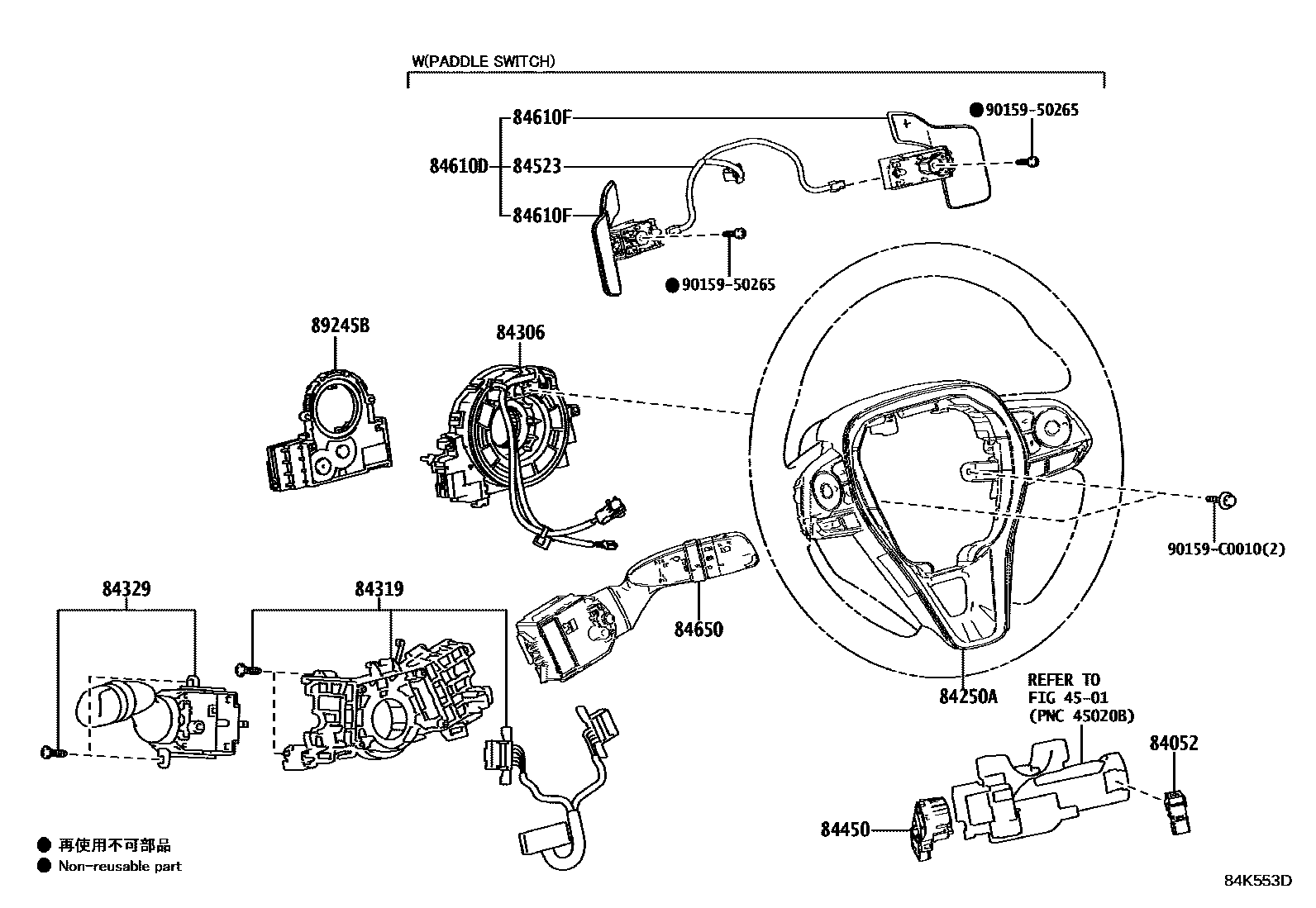

Diagram
10 parts
