Toyota Avalon-China 2025 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84250-07180-C0 | SWITCH ASSY, STEERING PAD | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … Spec:BLACK,TRIM1#,2#,4# | |||
| — | Part does not apply to this vehicle configuration. | 89235A | — |
| 84652-07150 | SWITCH ASSY, WINDSHIELD WIPER | 1 | |
Note:MXXH50;AXXH52..G;MXXA50..B,E Production:2024-07 – … | |||
| 8924B-02060 | SENSOR, STEERING | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| — | Part does not apply to this vehicle configuration. | 89227 | — |
| 84319-07010 | HOUSING, STEERING WHEEL SWITCH | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| 84329-07010 | SWITCH, TURN SIGNAL | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| 84140-07150 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| 84308-0R090 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:MXXH50;AXXH52..G;MXXA50..B,E Production:2024-07 – … | |||
| 90159-C0010 | standard | — | |

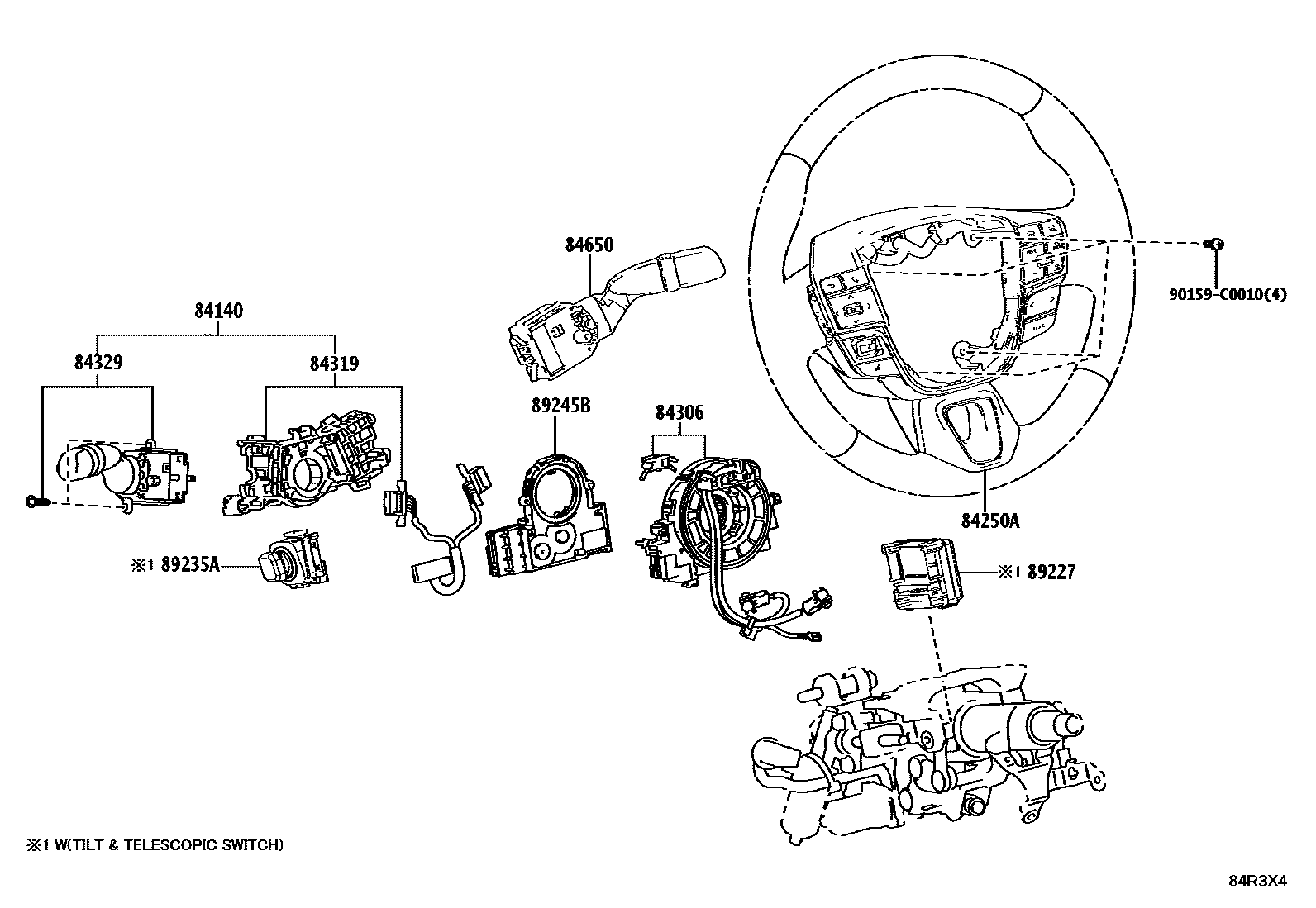

Diagram
8 parts
