Toyota Avalon-China 2025 — Interior Lamp
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 81080P | — |
| — | Part does not apply to this vehicle configuration. | 81080S | — |
| — | Part does not apply to this vehicle configuration. | 81080T | — |
| — | Part does not apply to this vehicle configuration. | 81080U | — |
| 812A0-YK010 | LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| 81340-0E020 | LAMP ASSY, VANITY | 2 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| 81360-YK020-C0 | LAMP ASSY, SPOT | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50..B,E,G Production:2024-07 – … Spec:BLACK,TRIM1#,2#,4# | |||
| 81330-0E020 | LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| 81230-0E040 | LAMP ASSY, COURTESY | 2 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| 812A0-YK010 | LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| 81081-YK010 | LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.5 | 2 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| 81081-YK010 | LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.6 | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| 81080-0A080 | LAMP SUB-ASSY, INTERIOR ILLUMINATION | 1 | |
Note:MXXA50,MXXH50..B,E Production:2024-07 – … | |||
| 81081-YK010 | LAMP ASSY, GLOVE BOX | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||

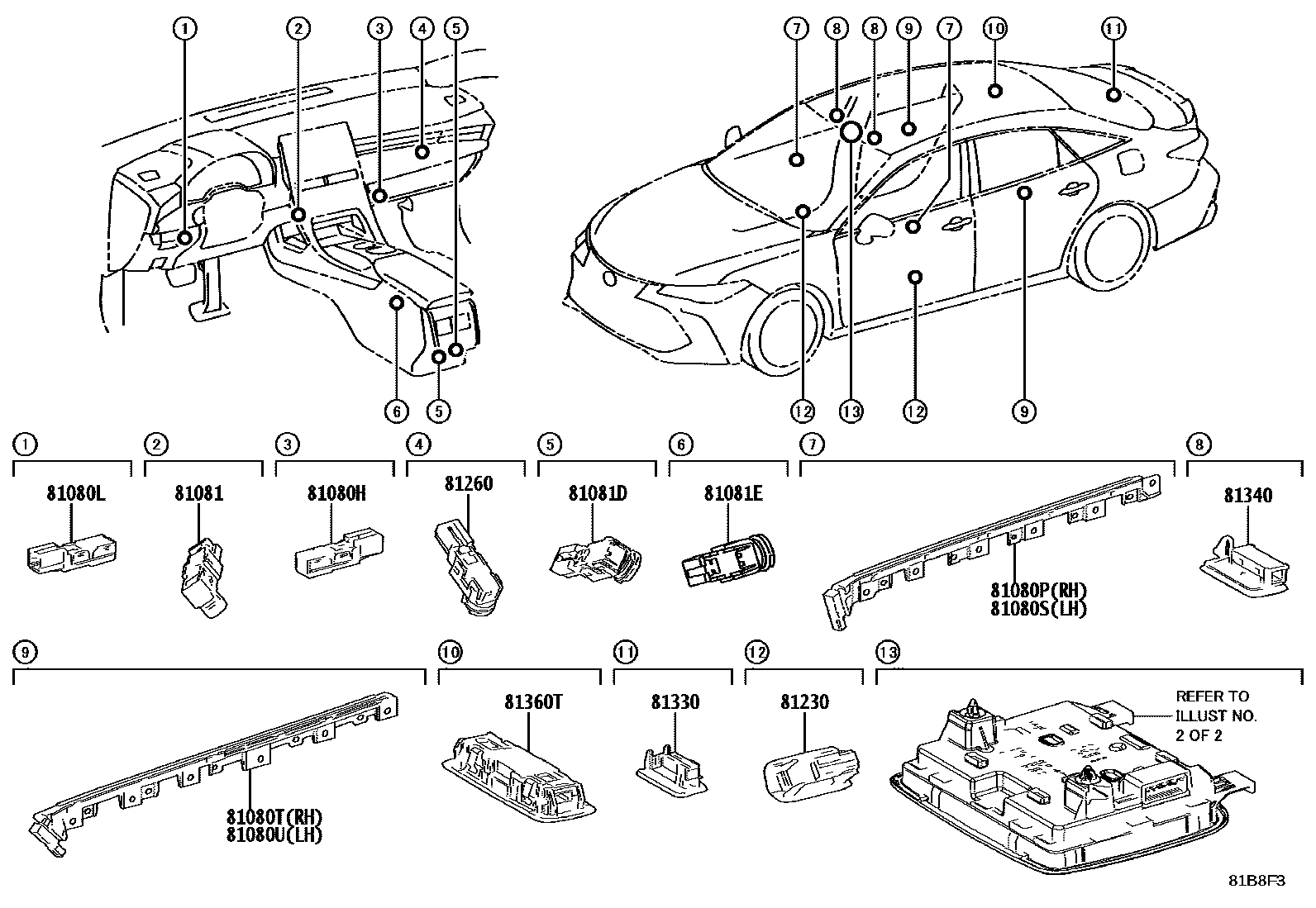

Diagram
10 parts
