Toyota Avalon-China 2021 — Console Box & Bracket
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 58825-07040 | POCKET, CONSOLE BOX | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 | |||
| 58810-07171-C8 | BOX ASSY, CONSOLE | 1 | |
Note:AXXH50..B;AXXA50,MXXA50..B,E Production:2021-06 – 2022-03 Spec:BLACK,TRIM2# | |||
| 58860-07040 | REGISTER ASSY, CONSOLE BOX | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 | |||
| 58862-07030 | DUCT, CONSOLE BOX, NO.2 | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 | |||
| 58863-07030 | DUCT, CONSOLE BOX, NO.3 | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 | |||
| 58875-07010 | SPACER, CONSOLE BOX | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 | |||
| 58923-07050-C0 | PANEL, CONSOLE REAR END | 1 | |
Note:AXXA50;AXXH50,MXXA50..B,G,Q Production:2021-06 – 2023-03 Spec:BLACK,TRIM2#,4# | |||
| — | Part does not apply to this vehicle configuration. | 58982B | — |
| — | Part does not apply to this vehicle configuration. | 58985B | — |
| — | Part does not apply to this vehicle configuration. | 58987A | — |
| 58949-07030 | SPRING, CONSOLE BOX MOUNTING BRACKET | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 | |||
| 58964-33040 | STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 | |||
| 58966-07060 | PIN, CONSOLE COMPARTMENT DOOR STOPPER | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 | |||
| 58981-07030 | RETAINER, CONSOLE COMPARTMENT DOOR HINGE | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 | |||
| 58984-07020-C1 | RETAINER, UPPER CONSOLE | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 Spec:BLACK,TRIM2# | |||
| 58815-07050 | CARPET, CONSOLE BOX | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 | |||
| 58908-07040 | LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 | |||
| 58985-07020 | RETAINER, CONSOLE BOX | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2022-07 | |||
| 58912-07050-C0 | PANEL, BOX SIDE, NO.2 | 1 | |
Note:AXXA50,AXXH50,MXXA50..B,G,Q Production:2021-06 – 2023-03 Spec:BLACK,TRIM2#,4# | |||
| 58911-07040-C0 | PANEL, BOX SIDE, NO.1 | 1 | |
Note:AXXA50,AXXH50,MXXA50..B,G,Q Production:2021-06 – 2023-03 Spec:BLACK,TRIM2#,4# | |||
| 58835-07100 | ORNAMENT, CONSOLE BOX | 1 | |
Note:AXXH50..B;AXXA50,MXXA50..B,E Production:2021-06 – 2023-03 | |||
| 58920-07051-C2 | ARMREST ASSY, REAR CONSOLE | 1 | |
Note:MXXA50;AXXA50..E;AXXH50..B,G,Q Production:2021-06 – 2023-03 Spec:BLACK/BLACK,TRIM2# | |||
| — | Part does not apply to this vehicle configuration. | 55524A | — |
| 90467-C0087 | standard | — | |
| 90467-05171 | standard | — | |
| 90167-C0004 | standard | — | |
| 90119-C0107 | standard | — | |
Replacements:91673-80616 (fitment: unknown) | |||
| 90467-C0088 | standard | — | |
| 90467-05172 | standard | — | |
| 90167-C0020 | standard | — | |
Replacements:93567-55020 (fitment: unknown) | |||

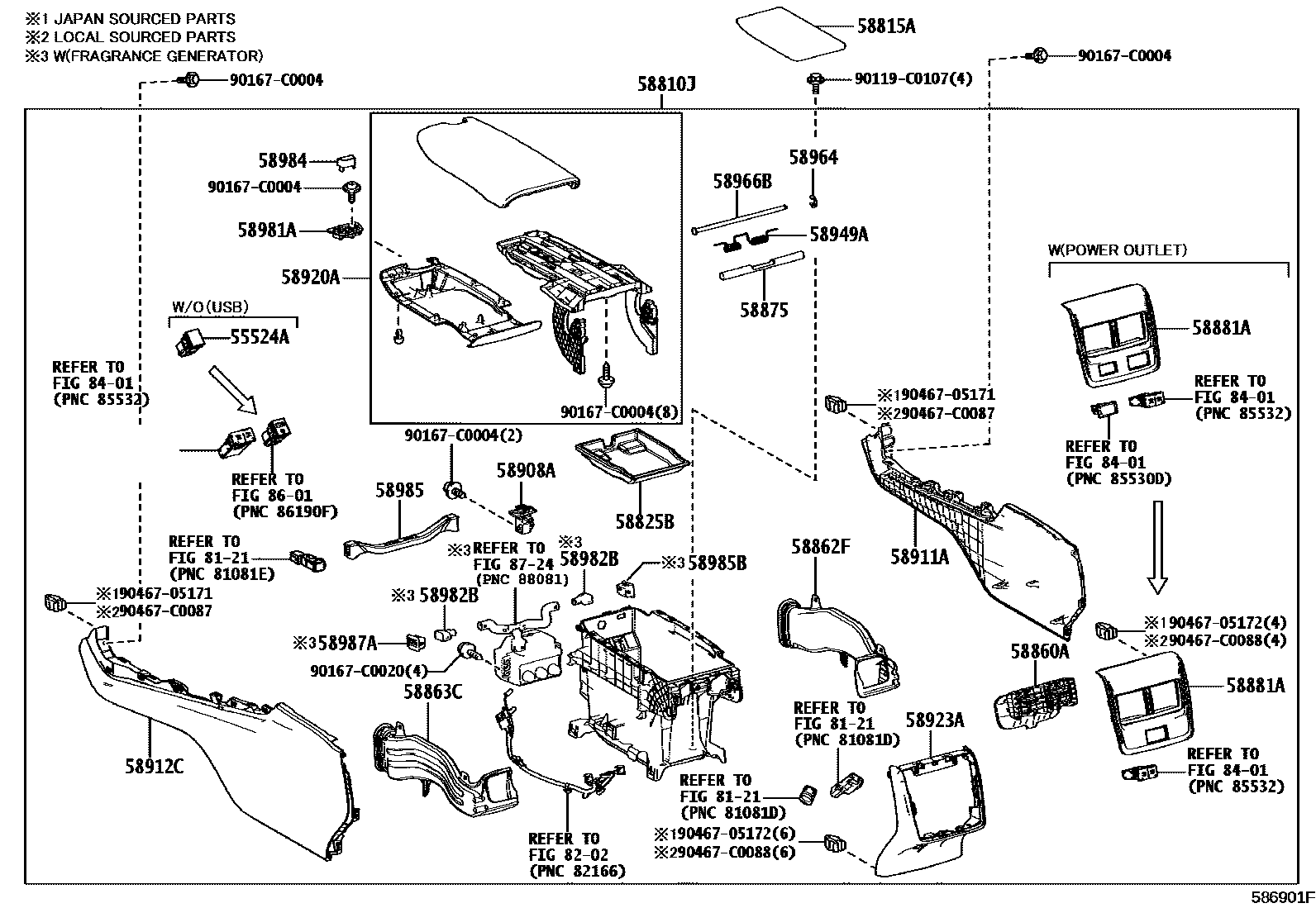

Diagram
26 parts
