Toyota Avalon-China 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 86210A | — |
| 83320-07020 | GAGE ASSY, FUEL SENDER | 1 | |
Note:AXXA50,MXXA50 Production:2021-06 – 2023-03 | |||
| — | Part does not apply to this vehicle configuration. | 88162 | — |
| — | Part does not apply to this vehicle configuration. | 89747F | — |
| — | Part does not apply to this vehicle configuration. | 88172 | — |
| — | Part does not apply to this vehicle configuration. | 89461 | — |
| — | Part does not apply to this vehicle configuration. | 82620B | — |
| 90982-09023 | FUSE, FUSE BLOCK | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09025 | FUSE, FUSE BLOCK | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 Spec:30A,MINI FUSE,GRN | |||
| 28850-F0030 | SENSOR ASSY, BATTERY STATE | 1 | |
Note:A25,M20..AXXA50,MXXA50 Production:2021-06 – 2023-03 | |||
| 28859-F0150 | HOLDER, BATTERY CURRENT SENSOR | 1 | |
Note:A25,M20..AXXA50,MXXA50 Production:2021-06 – 2023-03 | |||
| 90178-C0049 | standard | — | |
| 90178-C0076 | standard | — | |
| 90119-C0307 | standard | — | |
| 90119-C0531 | standard | — | |

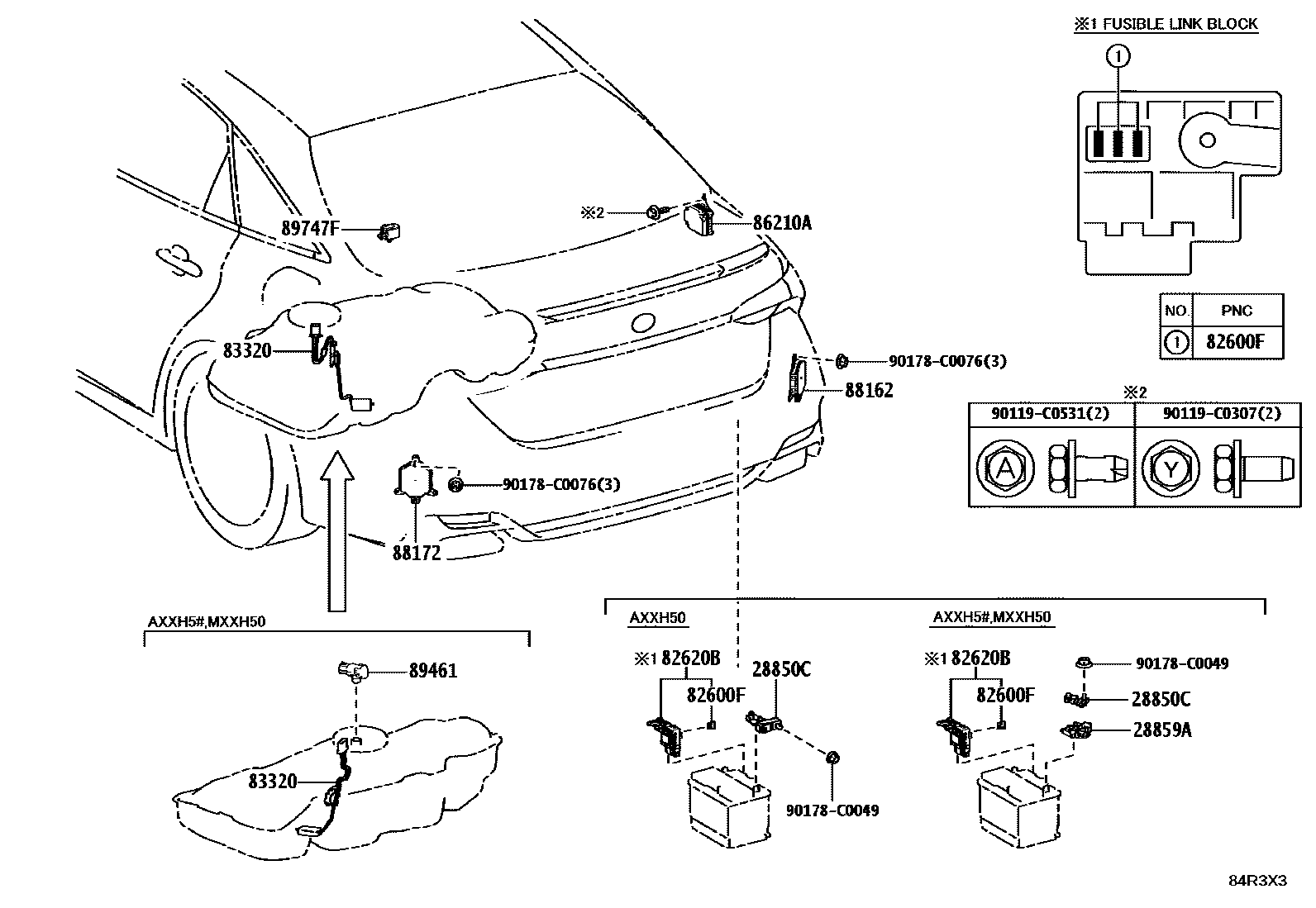

Diagram
9 parts
