Toyota Avalon-China 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89535-07020 | COMPUTER, TRANSMISSION CONTROL | 1 | |
Note:MXXA50 Production:2021-06 – 2022-03 | |||
| 89419-12011 | SENSOR, SHIFT STROKE | 1 | |
Note:MXXA50 Production:2021-06 – 2023-03 | |||
| 89422-33040 | SENSOR, WATER TEMPERATURE | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 | |||
| — | Part does not apply to this vehicle configuration. | 89451A | — |
| 84540-12240 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:MXXA50 Production:2021-06 – 2023-03 | |||
| 89467-F4010 | SENSOR, AIR FUEL RATIO | 1 | |
Note:MXXA50 Production:2021-06 – 2023-03 | |||
| 89491-33051 | SENSOR, ENGINE OIL LEVEL | 1 | |
Note:MXXA50;AXXH50..E Production:2021-06 – 2022-02 Replacements:89491-33052 (fitment: unknown) Spec:(J) Spec Note:(Japan made) | |||
| 89491-06010 | SENSOR, ENGINE OIL LEVEL | 1 | |
Note:MXXA50 Production:2021-06 – 2022-05 Replacements:89491-06011 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 89539-0R020 | BRACKET, TRANSMISSION CONTROL COMPUTER, NO.2 | 1 | |
Note:MXXA50 Production:2021-06 – 2023-03 | |||
| 89539-0R010 | BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1 | 1 | |
Note:MXXA50 Production:2021-06 – 2023-03 | |||
| 89615-20090 | SENSOR, KNOCK CONTROL | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 | |||
| 89467-07060 | SENSOR, AIR FUEL RATIO, NO.2 | 1 | |
Note:AXXA50,MXXA50;AXXH50..B,G,Q Production:2021-06 – 2023-03 | |||
| 90119-06A23 | standard | — | |
| 91651-40620 | standard | — | |
| 90153-C0003 | standard | — | |
| 90153-50015 | standard | — | |
| 90468-15007 | standard | — | |
| 91551-80835 | standard | — | |
| 90105-C0048 | standard | — | |
Replacements:91551-80835 (fitment: unknown) | |||
| 90119-C0098 | standard | — | |
Replacements:91671-80616 (fitment: unknown) | |||
| 91671-80616 | standard | — | |
| 90468-14044 | standard | — | |
| 90119-06A12 | standard | — | |
| 90119-C0671 | standard | — | |
| 82715-12X50 | standard | — | |
| 82715-F4640 | standard | — | |
| 82715-F4310 | standard | — | |
| 91611-60618 | standard | — | |
| 90178-C0032 | standard | — | |
| 82715-07220 | standard | — | |

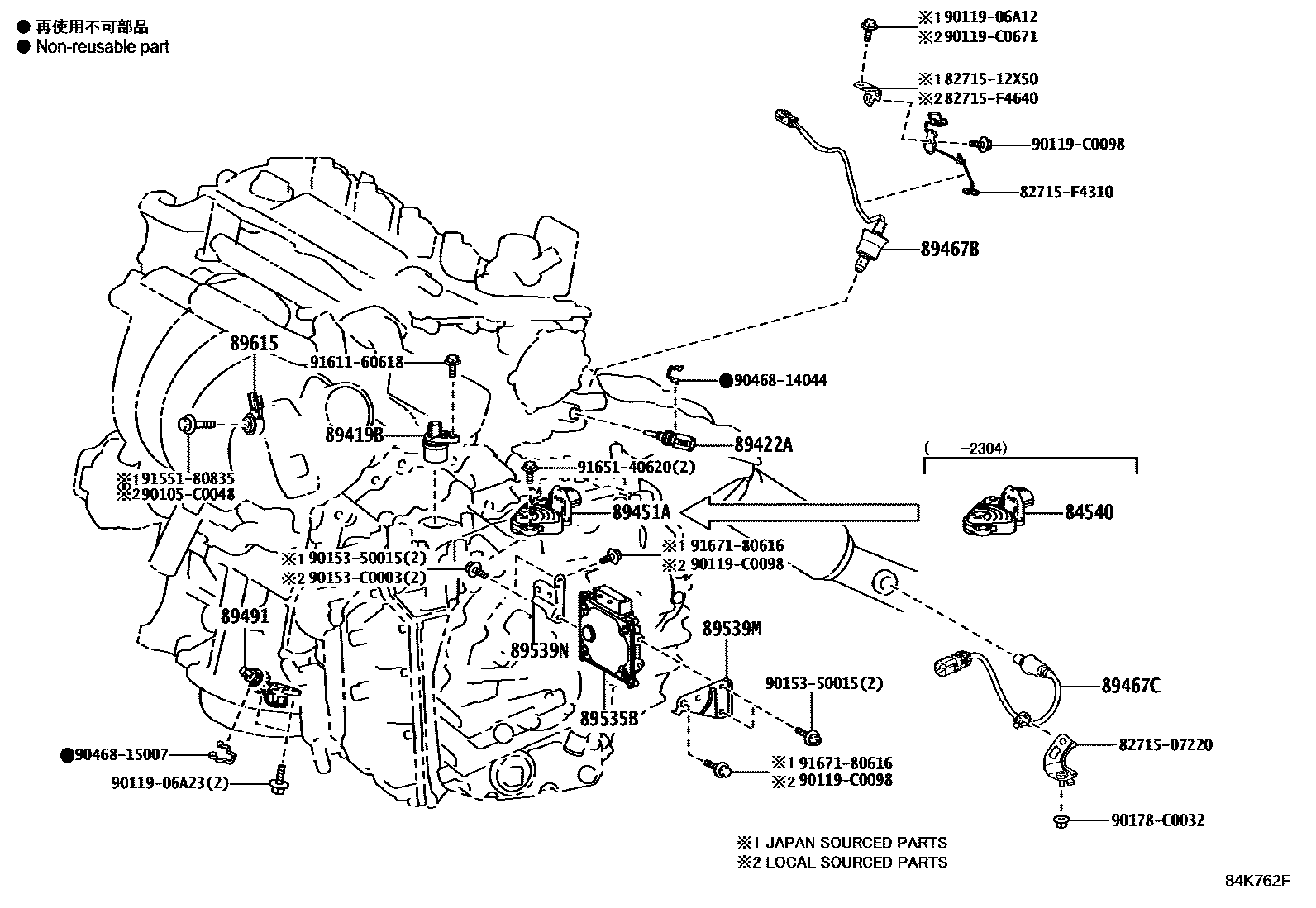

Diagram
29 parts
