Toyota Avalon-China 2025 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09025 | INSTRUMENT PANEL FUSE | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … Spec:30A,MINI FUSE,GRN | |||
| 90982-09026 | INSTRUMENT PANEL FUSE | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … Spec:3A,MINI FUSE,VIOLET | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … Spec:30A,FEMALE,PNK,32V | |||
| 82878-07020 | BOX, COMPUTER INTEGRATION, LH | 1 | |
Note:AXXH52,MXXH50 Production:2024-07 – … | |||
| 89221-07140 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:MXXH50;AXXH52..G;MXXA50..B,E Production:2024-07 – … | |||
| 82877-07020 | BOX, COMPUTER INTEGRATION, RH | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| 89111-02310 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:AXXH52,MXXH50 Production:2024-07 – … | |||
| 82730-YK040 | BOX ASSY, POWER DISTRIBUTION | 1 | |
Note:AXXH52,MXXH50 Production:2024-07 – … | |||
| 82672-YK010 | COVER, POWER DISTRIBUTION BOX | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| 89121-0E040 | SENSOR, AUTOMATIC LIGHT CONTROL | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| 84345-0R010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| 84340-09470 | SWITCH ASSY, STOP LAMP | 1 | |
Note:MXXA50..B,E;AXXH52,MXXH50 Production:2024-07 – … | |||
| — | Part does not apply to this vehicle configuration. | 8598A | — |
| 90179-06274 | standard | — | |
| 90119-06951 | standard | — | |
| 90119-C0074 | standard | — | |
| 90183-06032 | standard | — | |
| 90178-C0058 | standard | — | |
| 90178-C0011 | standard | — | |

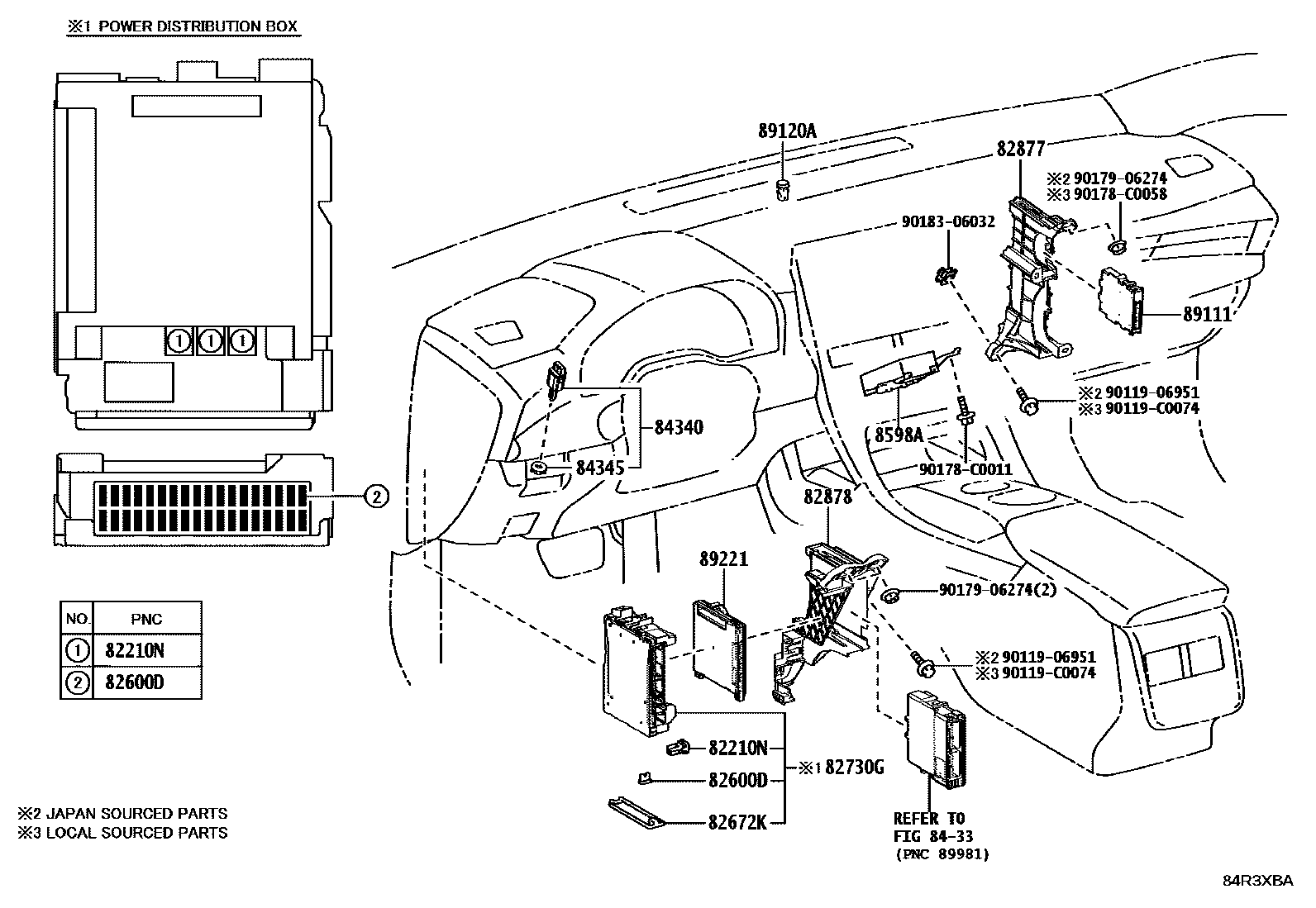

Diagram
23 parts
