Open RegionYearModelModelCode Details
General 2023 COROLLA ZWE219L-GEXEBC
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Vehicle Grade: MID TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Doors Description: 4-DOOR Color Code: 040 Trim Code: FC20 Production: 202305-202512 Model Short: ZWE219L-GEXEBC Region: OTHER Native Region: GR

Toyota Corolla 2023 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
28850-0Z020 SENSOR ASSY, BATTERY STATE 1
Note:M15,8ZRFXE..MZEA17,ZWE219 Production:2023-05 – …
28859-F3030 HOLDER, BATTERY CURRENT SENSOR 1
Note:M15,8ZRFXE..MZEA17,ZWE219 Production:2023-05 – …
— Part does not apply to this vehicle configuration. 82621A —
82620-16150 BLOCK ASSY, FUSIBLE LINK 1
Note:ZWE219 Production:2023-05 – …
90178-C0049 standard —
94151-80600 standard —
94151-80801 standard —

Diagram

6 parts

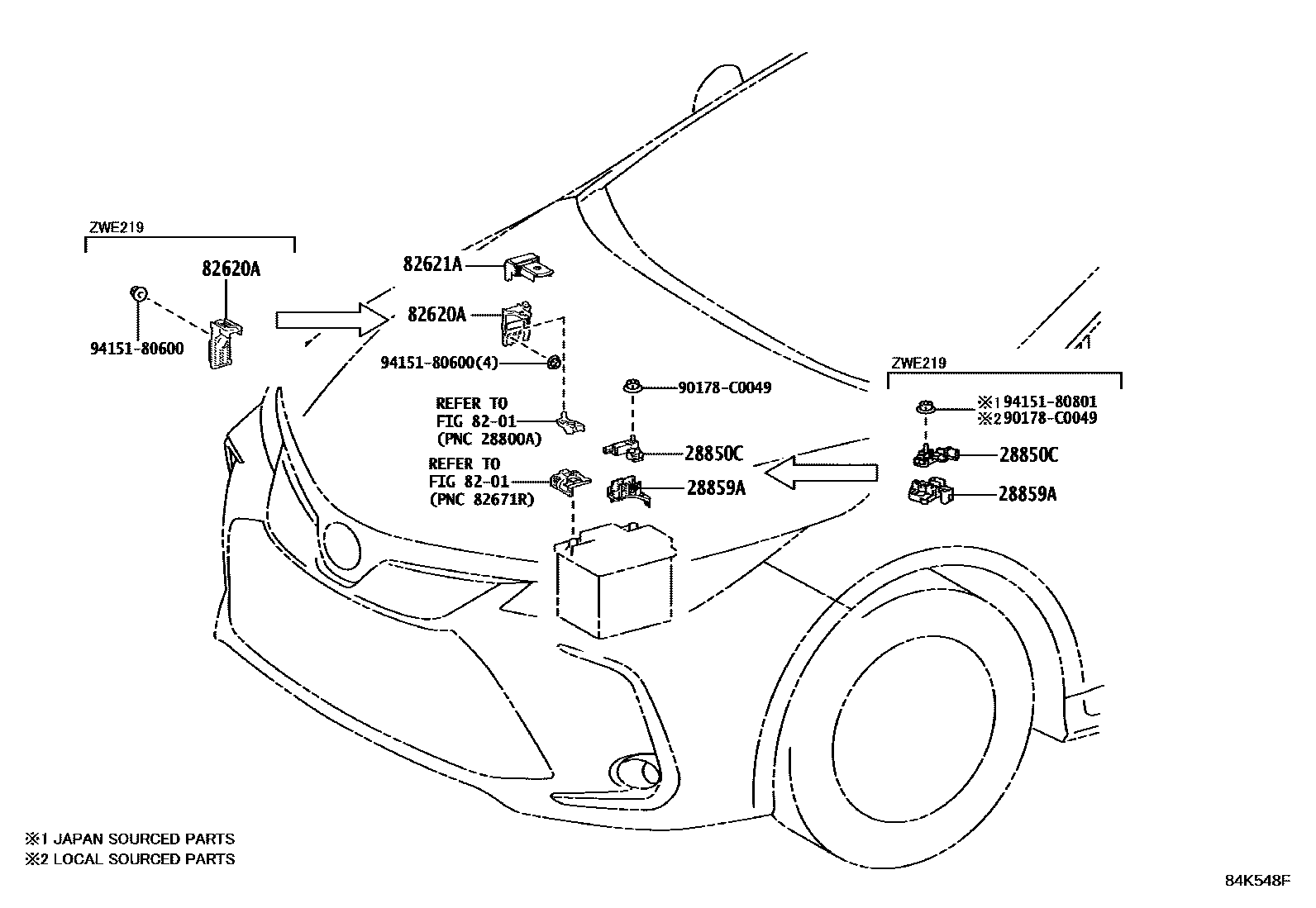

Toyota Corolla 2023 — Switch & Relay & Computer
