Toyota Corolla 2023 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84390-02090 | SWITCH ASSY, ELECTRIC PARKING BRAKE | 1 | |
Note:MZEA11,ZWE211 Production:2019-08 – 2023-04 | |||
| 84332-02430 | SWITCH ASSY, HAZARD WARNING SIGNAL | 1 | |
Note:MZEA11,ZWE211..ENTRY,MID Production:2022-06 – 2023-04 Replacements:84332-0A020 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 84332-12600 | SWITCH ASSY, HAZARD WARNING SIGNAL | 1 | |
Note:MZEA11,ZWE211..ENTRY,MID Production:2022-06 – 2023-04 Spec:(J) Spec Note:(Japan made) | |||
| 84153-02100 | SWITCH, AUTO HIGH BEAM | 1 | |
Note:MZEA11,ZWE211 Production:2019-08 – 2023-04 | |||
| 85535-02100 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:NRE210..HI;MZEA11,ZWE211 Production:2021-05 – 2023-04 | |||
| 85530-07020 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:NRE210..HI;MZEA11,ZWE211 Production:2021-05 – 2023-04 | |||
| 84152-02140 | SWITCH, HEADLAMP LEVELING | 1 | |
Note:MZEA11,ZWE211 Production:2019-08 – 2023-04 | |||
| 89611-02250 | SWITCH, PUSH START | 1 | |
Note:ZWE211 Production:2019-08 – 2023-04 | |||
| 84841-02050 | SWITCH, FUEL LID OPENER | 1 | |
Note:ZWE211 Production:2020-07 – 2023-04 | |||
| 84970-02440 | SWITCH ASSY, COMBINATION | 1 | |
Note:ZWE211 Production:2019-08 – 2023-04 | |||
| — | Part does not apply to this vehicle configuration. | 85532 | — |
| — | Part does not apply to this vehicle configuration. | 84751 | — |
| 90167-C0012 | standard | — | |

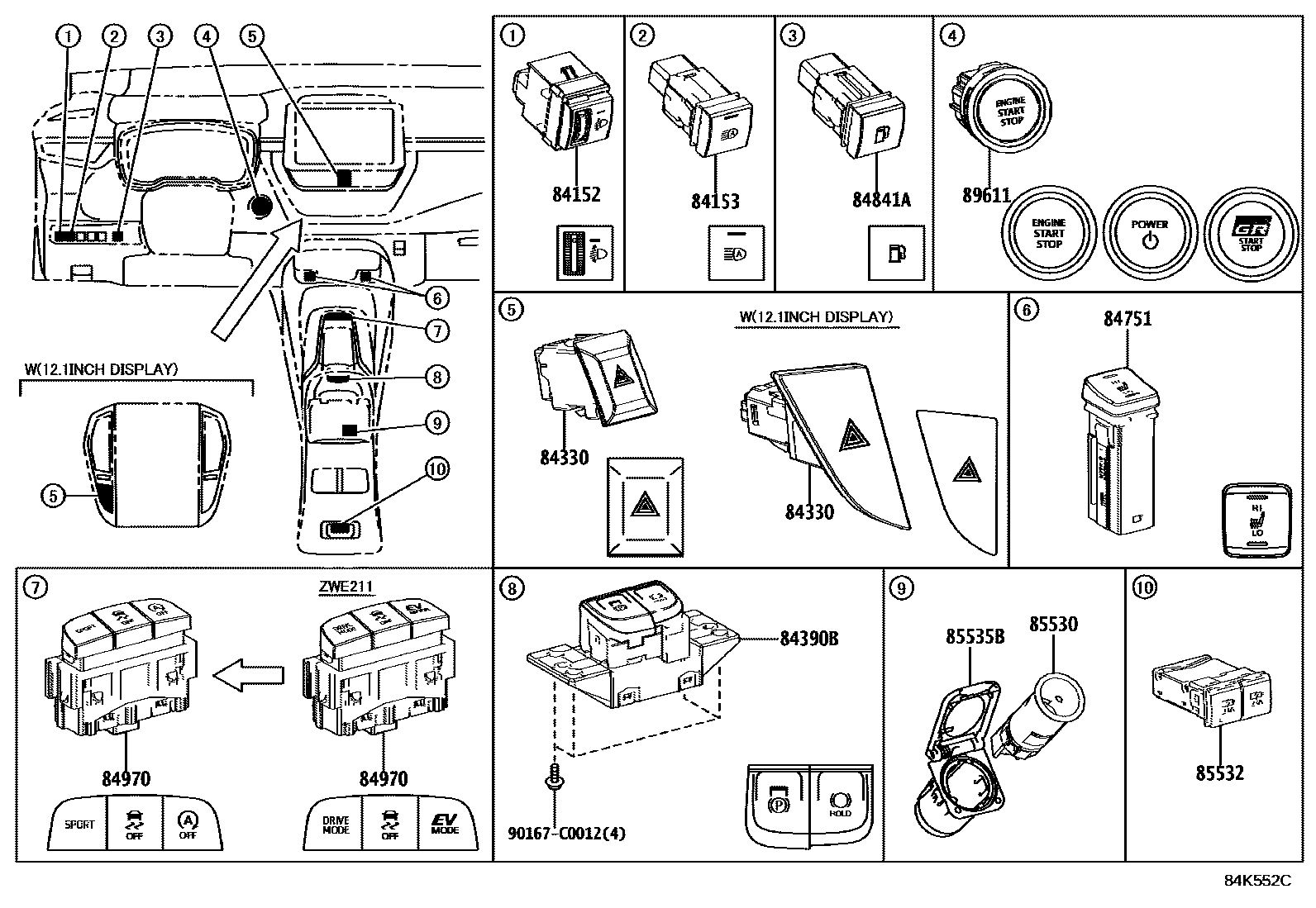

Diagram
11 parts
