Toyota Iq 2013 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 85912 | — |
| 28300-28010 | RELAY ASSY, STARTER | 1 | |
Note:1NRFE..NGJ10..R;1NRFE..NGJ10..CVFC;1KRFE,1NDTV..KGJ10,NUJ10 Production:2008-11 – 2014-05 Replacements:28300-21020 (fitment: unknown) | |||
| 90987-04004 | RELAY, COOLING FAN, NO.2 | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – 2014-05 | |||
| — | Part does not apply to this vehicle configuration. | 89730A | — |
| 90987-02027 | RELAY, COOLING FAN | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – 2014-05 | |||
| — | Part does not apply to this vehicle configuration. | 87346K | — |
| 90987-02027 | RELAY, HEADLAMP DIMMER | 1 | |
Note:KGJ10..R;KGJ10..CVFC Production:2012-04 – 2014-05 Spec:HEADLAMP-HALOGEN(SMOKE)&FRONT AIR CONDITIONER-AUTO | |||
| 90987-02025 | RELAY, HEADLAMP | 1 | |
Note:KGJ10..R;KGJ10..CVFC Production:2012-04 – 2014-05 Spec:HEADLAMP-HALOGEN(SMOKE)&FRONT AIR CONDITIONER-AUTO | |||
| 90982-09019 | FUSE, FUSE BLOCK | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – 2014-05 Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | FUSE, FUSE BLOCK | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – 2014-05 Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | FUSE, FUSE BLOCK | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – 2014-05 Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | FUSE, FUSE BLOCK | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – 2014-05 Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | FUSE, FUSE BLOCK | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – 2014-05 Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | FUSE, FUSE BLOCK | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – 2014-05 Spec:25A,MINI FUSE | |||
| 90982-09025 | FUSE, FUSE BLOCK | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – … Spec:30A,MINI FUSE,GRN | |||
| 90982-08306 | FUSIBLE LINK | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – 2014-05 Spec:30A,FEMALE,PNK,32V,INSTRUMENT PANEL J/B | |||
| 90982-08294 | FUSIBLE LINK | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – … Spec:40A,FEMALE,GRN,58V | |||
| 90982-08295 | FUSIBLE LINK | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – … Spec:30A,FEMALE,PNK,58V,ENGINE ROOM R/B | |||
| 90982-08300 | FUSIBLE LINK | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – … Spec:50A-30A-30A,FEMALE | |||
| 90982-08302 | FUSIBLE LINK | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – … Spec:50A-30A-50A,FEMALE | |||
| — | Part does not apply to this vehicle configuration. | 87346L | — |
| 82824-41010 | PIN, SHORT | 1 | |
Note:NGJ10..R;NGJ10..LHD..6F..N;KGJ10,NGJ10..5F,CVFC Production:2010-09 – 2014-05 | |||
| 82631-74010 | HOLDER ASSY, FUSE | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – 2014-05 | |||
| 82817-74080 | PROTECTOR, WIRING HARNESS | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – … | |||
| 82663-74010 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – 2014-05 | |||
| 82741-74010 | BLOCK, ENGINE ROOM RELAY | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – 2014-05 | |||
| 82741-74020 | BLOCK, ENGINE ROOM RELAY | 1 | |
Note:KGJ10 Production:2012-05 – 2014-05 Spec:HEADLAMP-HALOGEN(SMOKE)&FRONT FOG LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO | |||
| 82663-74020 | COVER, RELAY BLOCK, LOWER, NO.2 | 1 | |
Note:KGJ10 Production:2012-05 – 2014-05 Spec:HEADLAMP-HALOGEN(SMOKE)&FRONT FOG LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO | |||
| 82631-74030 | HOLDER, FUSE | 1 | |
Note:KGJ10 Production:2012-05 – 2014-05 Spec:HEADLAMP-HALOGEN(SMOKE)&FRONT FOG LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)&FRONT AIR CONDITIONER-AUTO | |||
| 82662-74070 | COVER, RELAY BLOCK, UPPER, NO.2 | 1 | |
Note:KGJ10 Production:2012-05 – 2014-05 Spec:HEADLAMP-HALOGEN(SMOKE)&FRONT AIR CONDITIONER-AUTO | |||
| 82631-74020 | HOLDER ASSY, FUSE | 1 | |
Note:KGJ10,NGJ10,NUJ10 Production:2008-11 – 2014-05 | |||
| 82662-74040 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:KGJ10 Production:2012-05 – 2014-05 Spec:HEADLAMP-HALOGEN(SMOKE)&FRONT AIR CONDITIONER-AUTO | |||
| 82616-58010 | PULLER, FUSE | 1 | |
Note:NGJ10..R;NGJ10..LHD..6F..N;KGJ10,NGJ10..5F,CVFC Production:2010-09 – 2014-05 | |||
| 82641-74010 | RELAY, INTEGRATION NO.1 | 1 | |
Note:KGJ10,NGJ10 Production:2008-11 – 2014-05 | |||
| 91671-80616 | standard | — | |

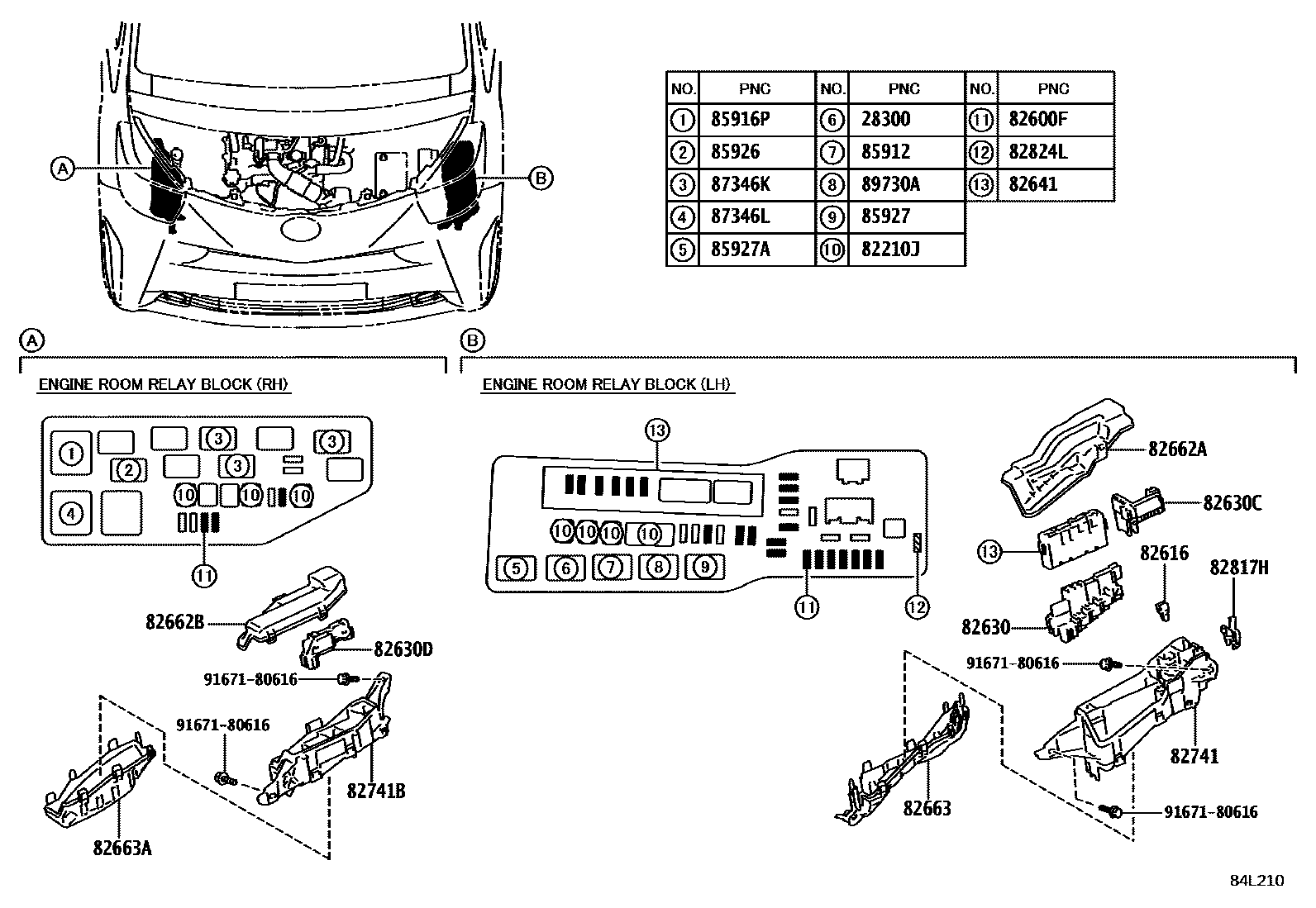

Diagram
31 parts
