Open RegionYearModelModelCode Details
General 2019 RAV4 JPP MXAA54L-ANXMBW
Catalog: TOYOTA202608 Engine: 2000CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Color Code: 218 Trim Code: FA20 Production: 201811-202007 Model Short: MXAA54L-ANXMBW Region: OTHER Native Region: GR

Toyota RAV4-JPP 2019 — Starter

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
28100-25070 STARTER ASSY 1
Note:M20AFKS..MXAA5#..LHD..CVT..EUR;A25AFKS,M20AFKS..AXAA54,MXAA52..(ATM,CVT)..ARL Production:2018-11 – 2020-07 Spec:12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN
28140-21100 HOLDER ASSY, STARTER BRUSH 1
Note:M20AFKS..MXAA5#..LHD..EUR;A25AFKS,M20AFKS..AXAA54,MXAA52..ARL Production:2018-11 – 2020-07 Spec:LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN
28160-36110 ARMATURE ASSY, STARTER 1
Note:M20AFKS..MXAA5#..LHD..EUR;A25AFKS,M20AFKS..AXAA54,MXAA52..ARL Production:2018-11 – 2020-07 Spec:LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN
28021-25070 CLUTCH SUB-ASSY, STARTER CENTER BEARING 1
Note:M20AFKS..MXAA5#..LHD..EUR;A25AFKS,M20AFKS..AXAA54,MXAA52..ARL Production:2018-11 – 2020-07 Spec:LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN
28226-24120 STARTER KIT, REPAIR SERVICE, NO.2 1
Note:M20AFKS..MXAA52..JPP..6F..X;M20AFKS..MXAA52..6F..M..GEN;M20AFKS..MXAA54..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G;M20AFKS..MXAA52..CVT..X..EUR;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..LHD..(G,M)..EUR;M20AFKS..MXAA52..CVT..(ARL,GEN,SA) Production:2018-11 – 2020-07
90179-08204 standard —
94151-80800 standard —
90105-10592 standard —

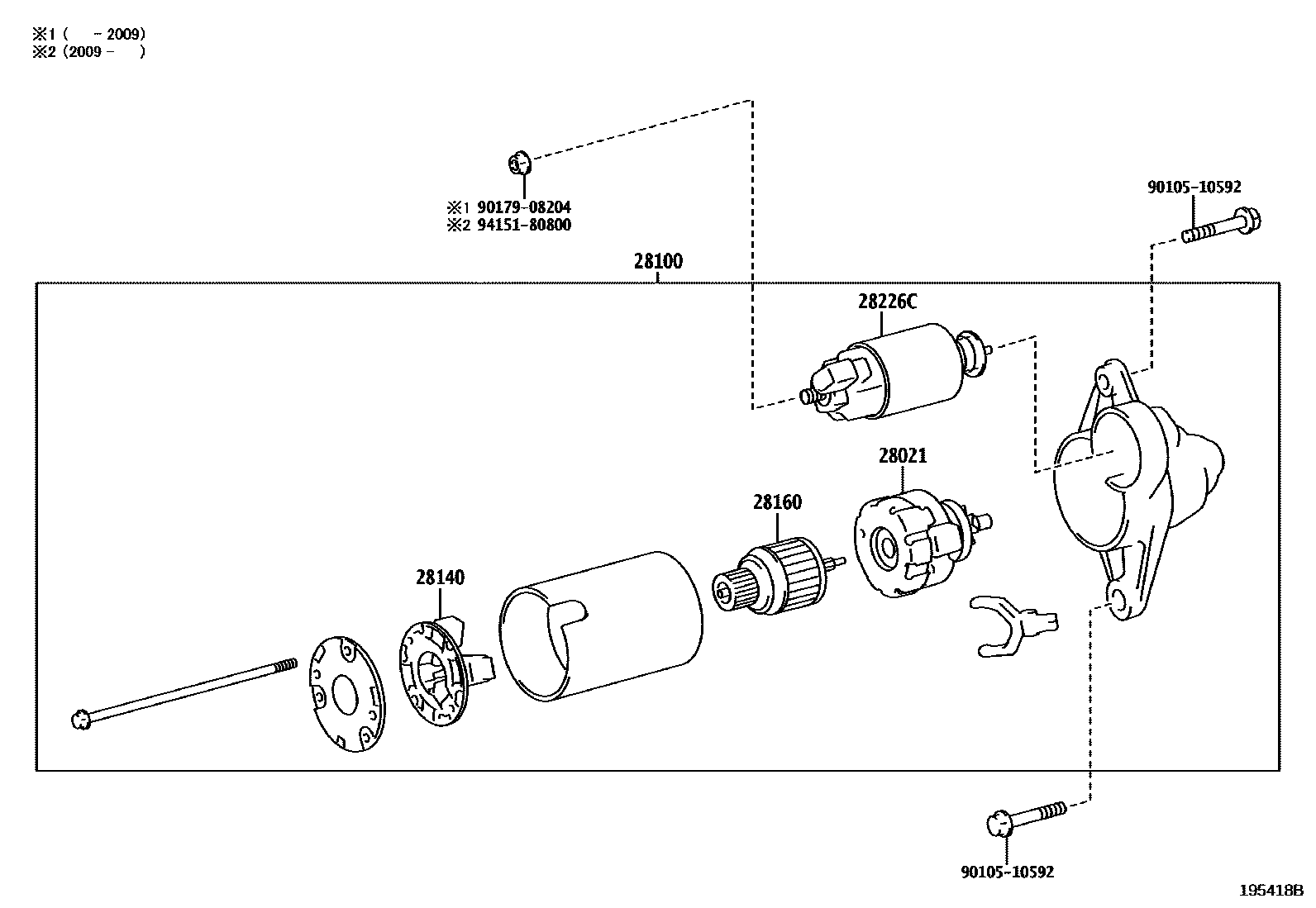

Diagram

8 parts
Toyota RAV4-JPP 2019 — Starter
