Open RegionYearModelModelCode Details
General 2019 RAV4 JPP MXAA54L-ANXMBW
Catalog: TOYOTA202608 Engine: 2000CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Color Code: 218 Trim Code: FA20 Production: 201811-202007 Model Short: MXAA54L-ANXMBW Region: OTHER Native Region: GR

Toyota RAV4-JPP 2019 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
82610-42080 BLOCK ASSY, FUSE 1
Note:MXAA52..JPP..CVT;MXAA5#..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X);MXAA52..JPP..6F..(M,X);AXAA5#..ARL,GCC,GEN,SA Production:2018-11 – 2020-07
82610-42090 BLOCK ASSY, FUSE 1
Note:AXAH52..M,X;MXAA5#..6F..EUR;AXAA5#..ARL,GEN,SA;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA5#,MXAA54..G..GCC;MXAA54..CVT..(EUR,GEN,SA);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
82660-42100 BLOCK ASSY, RELAY, ENGINE ROOM 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
82660-42110 BLOCK ASSY, RELAY 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
82660-0E010 BLOCK ASSY, RELAY 1
Note:AXAH52..M,X;MXAA5#..6F..EUR;AXAA5#..ARL,GEN,SA;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA5#,MXAA54..G..GCC;MXAA54..CVT..(EUR,GEN,SA);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
82660-52100 BLOCK ASSY, RELAY 1
Note:AXAH52..M,X;MXAA5#..6F..EUR;AXAA5#..ARL,GEN,SA;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA5#,MXAA54..G..GCC;MXAA54..CVT..(EUR,GEN,SA);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
82661-42070 COVER, RELAY BLOCK, NO.1 1
Note:MXAA52..JPP..LHD;MXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAA5#..LHD..(GCC,GEN);MXAA54..JPP..LHD..(M,V,X) Production:2018-11 – 2020-07
82662-42650 COVER, RELAY BLOCK, UPPER, NO.2 1
Note:MXAA5#..6F..EUR;AXAA5#..ARL,GEN,SA;AXAA5#,MXAA54..G..GCC;MXAA5#..CVT..(ARL,EUR,GEN,SA) Production:2018-11 – 2020-07
82663-42160 COVER, RELAY BLOCK, LOWER, NO.2 1
Note:AXAA5#..G..GCC;MXAA52..JPP..CVT;AXAA5#..ARL,GEN,SA;MXAA5#..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA52..JPP..6F..(M,X);MXAA54..(M,V,X)..(EUR,GEN,SA) Production:2018-11 – 2020-07
82663-42170 COVER, RELAY BLOCK, LOWER 1
Note:AXAH52..M,X;MXAA5#..6F..EUR;AXAA5#..ARL,GEN,SA;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA5#,MXAA54..G..GCC;MXAA54..CVT..(EUR,GEN,SA);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
82740-42050 BLOCK ASSY, ENGINE ROOM RELAY 1
Note:MXAA52..JPP..CVT;MXAA5#..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X);MXAA52..JPP..6F..(M,X);AXAA5#..ARL,GCC,GEN,SA Production:2018-11 – 2020-07
82740-42120 BLOCK ASSY, ENGINE ROOM RELAY, NO.2 1
Note:AXAH52..M,X;MXAA5#..6F..EUR;AXAA5#..ARL,GEN,SA;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA5#,MXAA54..G..GCC;MXAA54..CVT..(EUR,GEN,SA);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
90982-09023 ENGINE ROOM FUSE 1
Note:MXAA5#..LHD..EUR Production:2018-11 – 2020-07 Spec:20A,MINI FUSE,YELLOW,REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&LOW FUELCONSUMPTION PACKAGE-IDLE STOP & ECO-RUN
90982-09025 ENGINE ROOM FUSE 1
Note:MXAA5#..LHD..EUR Production:2018-11 – 2020-07 Spec:30A,MINI FUSE,GRN,REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN
90982-08283 ENGINE ROOM FUSIBLE LINK 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 Spec:30A,TERM.:FEMALE,PNK
90982-08285 ENGINE ROOM FUSIBLE LINK 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 Spec:50A,FEMALE,RED,32VDC
90982-08302 ENGINE ROOM FUSIBLE LINK 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 Spec:50A-30A-50A,FEMALE
90982-08303 ENGINE ROOM FUSIBLE LINK 1
Note:MXAA52..JPP..CVT;MXAA5#..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X);MXAA52..JPP..6F..(M,X);AXAA5#..ARL,GCC,GEN,SA Production:2018-11 – 2020-07 Spec:50A-50A-50A,FEMALE
— Part does not apply to this vehicle configuration. 85912F —
— Part does not apply to this vehicle configuration. 84794A —
90987-02027 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
90987-02027 RELAY, WINDSHIELD WIPER 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
90987-02027 RELAY, INJECTOR 1
Note:MXAA52..JPP..CVT;MXAA5#..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X);MXAA52..JPP..6F..(M,X);AXAA5#..ARL,GCC,GEN,SA Production:2018-11 – 2020-07
90987-02027 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
90987-02027 RELAY ASSY, HORN 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
90987-02027 RELAY, VVT 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
90080-87026 RELAY, HEADLAMP 2
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, HEADLAMP 2
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 Spec:(J) Spec Note:(Japan made)
82616-58010 PULLER, FUSE 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
82662-42700 COVER, RELAY BLOCK, UPPER, NO.1 1
Note:MXAA54..EUR;MXAA54..RHD..V;MXAA52..(M,X)..EUR;MXAA52..LHD..G..EUR;AXAA5#,MXAA54..G..GCC;AXAA5#,MXAA52..RHD..(G,V)..(ARL,EUR,GEN) Production:2018-11 – 2020-07
82660-48030 BLOCK ASSY, RELAY 1
Note:AXAH52..M,X;MXAA5#..6F..EUR;AXAA5#..ARL,GEN,SA;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA5#,MXAA54..G..GCC;MXAA54..CVT..(EUR,GEN,SA);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
82660-33050 BLOCK ASSY, RELAY 1
Note:MXAA5#..6F..EUR;AXAA5#..ARL,GEN,SA;AXAA5#,MXAA54..G..GCC;MXAA5#..CVT..(ARL,EUR,GEN,SA) Production:2018-11 – 2020-07
82660-48020 BLOCK ASSY, RELAY 1
Note:AXAH52..M,X;MXAA5#..6F..EUR;AXAA5#..ARL,GEN,SA;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA5#,MXAA54..G..GCC;MXAA54..CVT..(EUR,GEN,SA);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
82660-48040 BLOCK ASSY, RELAY 1
Note:AXAH52..M,X;MXAA5#..6F..EUR;AXAA5#..ARL,GEN,SA;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA5#,MXAA54..G..GCC;MXAA54..CVT..(EUR,GEN,SA);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
82661-42060 COVER, RELAY BLOCK, NO.2 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
28300-21020 RELAY ASSY, STARTER 2
Note:M20AFKS..MXAA5#..LHD..CVT..EUR Production:2018-11 – 2020-07 Spec:REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN
90080-87026 RELAY, FOG LAMP 1
Note:MXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);MXAA52..LHD..6F..(G,M);AXAH52,MXAA54..JPP..(M,V);AXAA5#..(G,M,V)..(ARL,GCC,GEN,SA);MXAA52..RHD..6F..(M,X)..(ARL,EUR,SA);AXAA54,AXAH5#,AXAL5#,MXAA52..(ATM,CVT)..X..(ARL,SA);AXAH54,AXAL5#,MXAA52..CVT..(G,M)..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, FOG LAMP 1
Note:MXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);MXAA52..LHD..6F..(G,M);AXAH52,MXAA54..JPP..(M,V);AXAA5#..(G,M,V)..(ARL,GCC,GEN,SA);MXAA52..RHD..6F..(M,X)..(ARL,EUR,SA);AXAA54,AXAH5#,AXAL5#,MXAA52..(ATM,CVT)..X..(ARL,SA);AXAH54,AXAL5#,MXAA52..CVT..(G,M)..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07 Spec:(J) Spec Note:(Japan made)
90987-04004 RELAY, MIRROR CONTROL 2
Note:AXAH5#,AXAL5#,MXAA5#..EUR Production:2018-11 – 2020-07
90987-02025 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
— Part does not apply to this vehicle configuration. 85941 —
— Part does not apply to this vehicle configuration. 85278A —
82620-33150 BLOCK ASSY, FUSIBLE LINK 1
Note:MXAA54..EUR;MXAA54..RHD..V;MXAA52..(M,X)..EUR;MXAA52..LHD..G..EUR;AXAA5#,MXAA54..G..GCC;AXAA5#,MXAA52..RHD..(G,V)..(ARL,EUR,GEN) Production:2018-11 – 2020-07
90987-04010 RELAY, DEFOGGER 1
Note:MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA) Production:2018-11 – 2020-07
94151-80600 standard —
90178-W0019 standard —
Replacements:94151-80600 (fitment: unknown)

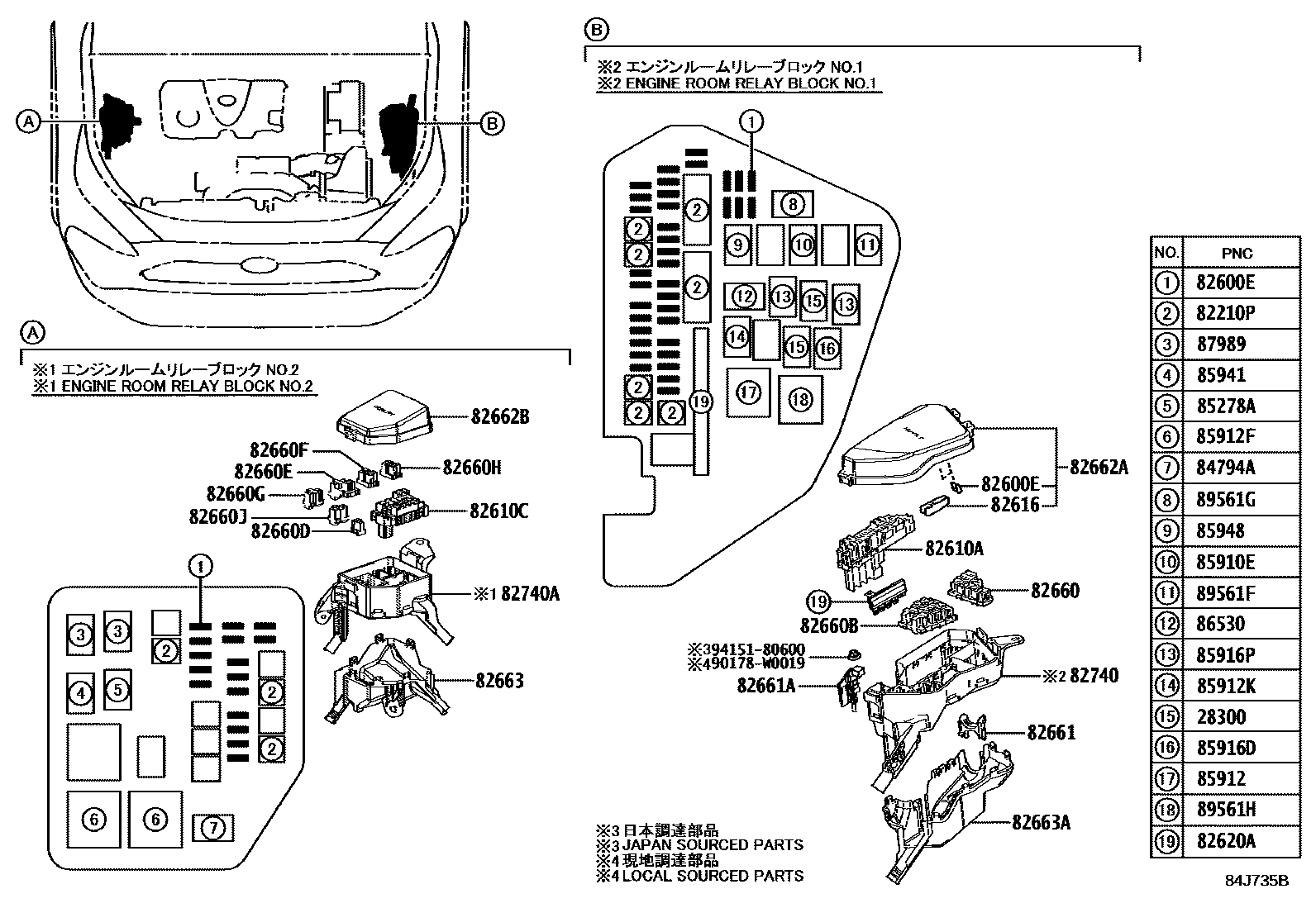

Diagram

42 parts
