Toyota Hilux 2001 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 81980-12110 | FLASHER ASSY, TURN SIGNAL | 1 | |
Note:RZN169..DCB..SA;LN167..SCB..DEFI;KZN165..(THDCB,THSCB)..SR;LN167..DCB..DLX..DEFI..ARL;KZN165,LN152..(SCB,XTR)..IV3;RZN169..(DCB,SCB)..DLX..(ARL,SA);RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN167,RZN154,194..(DCB,SCB,XTR)..(DSL,EFI)..(ARL,SA);KZN165,RZN144,149,154,169..(DCB,SCB,XTR)..(CBR,TDE)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA) Production:2000-08 – 2003-05 Replacements:81980-32010 (fitment: unknown) | |||
| 81980-12110 | FLASHER ASSY, TURN SIGNAL | 1 | |
Note:LN145..LHD..IV3;KZN190,RZN194..SR;LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN145,167,RZN147,148,169..(GCC,GEN,SA)..CBU;KZN165,LN140,141,146,166,17#,19#,RZN142,144,154,168,193,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,SA) Production:2001-08 – 2003-06 Replacements:81980-32010 (fitment: unknown) | |||
| 86530-20070 | RELAY ASSY, HORN | 1 | |
Note:LN167..DSL;LN145..DCB..GEN;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(DEFI,TDE)..(IV1,IV3);KZN165,LN152..(THDCB,THSCB,XTR)..SR..(DEFI,TDE)..(CBU,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) Production:2000-08 – … | |||
| 86530-20070 | RELAY ASSY, HORN | 1 | |
Note:LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU Production:2001-08 – 2005-06 | |||
| 90987-02012 | RELAY ASSY, POWER WINDOW | 1 | |
Note:LN167..DCB..DSL;RZN169..DCB..SA;RZN147..LHD..DCB;RZN144,149..SR..CBR;RZN169..LHD..DCB..CBR..GEN;KZN190,LN146,171,19#,RZN193..DLX;LN145,166,RZN168..LHD..DCB..DLX..GEN;LN167,RZN149,169..DCB..DLX..(DEFI,EFI)..ARL;LN147,RZN149..DCB..DLX..(CBR,DEFI,DSL)..(ARL,GCC);KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR..(ARL,SA) Production:1997-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 85912 | — |
| 28521-54560 | TIMER, PREHEATING | 1 | |
Note:2L..LN145,155..LHD..DLX..TH;2L,3L,5L..LN140,141,145,146,16#,171,19#..DSL..(GCC,GEN,SA) Production:1997-08 – … | |||
| 28521-54560 | TIMER, PREHEATING | 1 | |
Note:2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU Production:2001-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 89551 | — |
| 28529-54320 | BRACKET, PREHEATING TIMER, NO.1 | 1 | |
Note:2L..LN145,155..LHD..DLX..TH;2L,3L,5L..LN140,141,145,146,16#,171,19#..DSL..(GCC,GEN,SA) Production:2000-09 – … | |||
| 28529-54320 | BRACKET, PREHEATING TIMER, NO.1 | 1 | |
Note:2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU Production:2001-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 81981A | — |
| 84550-34010 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL) Production:1997-08 – … | |||
| 84550-34010 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:RZN148..GEN..CBU;LN145,166,171,191,RZN142,147,154,16#,193..LHD..GEN Production:2001-08 – 2005-06 | |||
| 84340-35020 | SWITCH ASSY, STOP LAMP | 1 | |
Note:RZN169..DCB..SA;LN167..SCB..DEFI;LN167..DCB..DLX..ARL;KZN165,LN152..(SCB,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,XTR);RZN169..(DCB,SCB)..DLX..(ARL,SA);RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,LN167,RZN144,149,154,169..(DCB,SCB,XTR)..(CBR,DSL,TDE)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA) Production:2000-09 – … | |||
| 84340-35020 | SWITCH ASSY, STOP LAMP | 1 | |
Note:LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;KZN190,RZN194..SR;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU;KZN165,LN140,141,146,16#,17#,19#,RZN142,144,147,154,16#,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA) Production:2001-08 – 2005-11 | |||
| 90982-10001 | FUSE, MEDIUM CURRENT | 1 | |
Note:RZN147..LHD;RZN169..LHD..DCB;RZN169..SCB..GCC;RZN149,154..ARL,GCC;LN145,166..LHD..SCB;RZN169..RHD..(ARL,GEN);KZN165,LN145..SR..(ARL,TH);LN145,166,RZN148,168..DCB..(GCC,GEN);KDN145,15#,165,190,LN146,147,152,167,17#,191,RZN142,144,174,193..ARL,GCC,GEN,TH Production:2001-09 – 2002-03 Spec:30A,PINK | |||
| 90982-09008 | FUSE, FUSE BLOCK | 1 | |
Note:LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU Production:2001-08 – 2005-06 Spec:7.5A,MINI FUSE,BRN | |||
| 90982-09009 | FUSE, FUSE BLOCK | 1 | |
Note:LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU Production:2001-08 – 2005-06 Spec:10A,MINI FUSE,RED | |||
| 90982-09010 | FUSE, FUSE BLOCK | 1 | |
Note:LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU Production:2001-08 – 2005-06 Spec:15A,MINI FUSE,BLUE | |||
| 90982-09011 | FUSE, FUSE BLOCK | 1 | |
Note:LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU Production:2001-08 – 2005-06 Spec:20A,MINI FUSE,YELLOW | |||
| 82731-35020 | BLOCK, DRIVER SIDE JUNCTION | 1 | |
Note:RZN148..DLX..GEN..CBU;LN145,166,171,191,RZN142,147,168,193..LHD..DLX..GEN Production:2001-08 – 2005-06 | |||
| 82683-35100 | PLATE, CAUTION(FOR FUSE) | 1 | |
Note:LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,168,193..DLX..GEN..CBU Production:2001-08 – 2005-06 | |||
| 82671-30340 | BLOCK, JUNCTION | 2 | |
Note:RZN169..LHD..DCB..GEN;LN145,166,171,191,RZN142,147..LHD..GEN Production:2001-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 82602A | — |
| 82671-30370 | BLOCK, JUNCTION | 1 | |
Note:RZN169..LHD..DCB..GEN;LN145,166,171,191,RZN142,147..LHD..GEN Production:2001-08 – … | |||
| 82641-60040 | RELAY, INTEGRATION NO.1 | 1 | |
Note:KZN165..THDCB..SR;RZN168..DCB..DLX..GEN;LN166,RZN169..LHD..SCB..GEN;LN145,RZN147..LHD..GEN..CBU;LN167,RZN168..SR..(ARL,CO,GEN);KDN165,190,LN166,171,191,RZN148,169,174,193..(DCB,THDCB,THXTR,XTR)..(ARL,GEN,MA) Production:2001-08 – 2005-11 | |||
| 93560-55014 | standard | — | |
| 94130-60800 | standard | — | |

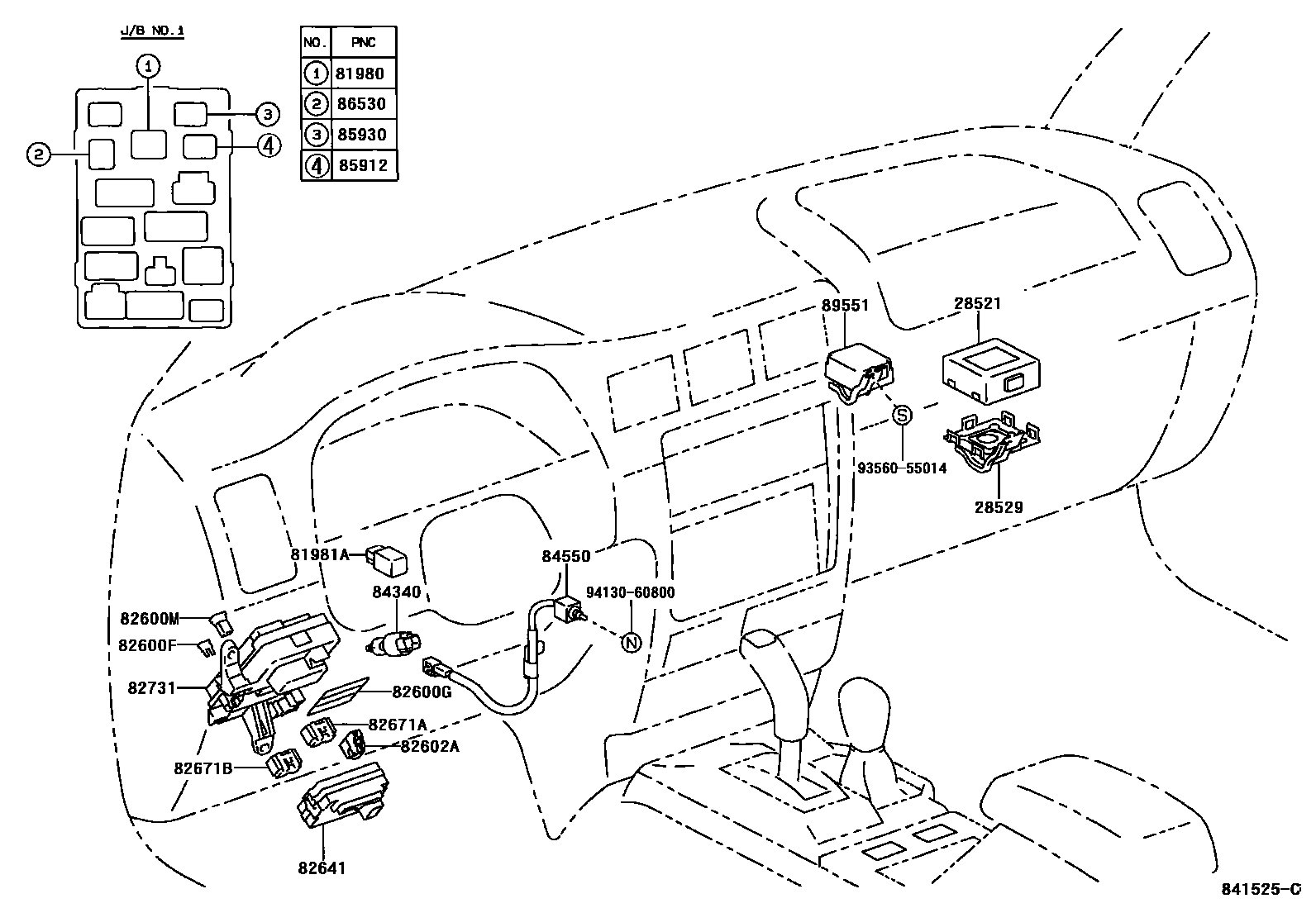

Diagram
25 parts
