Toyota Land-Cruiser-Prado 2007 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90982-09008 | FUSE, FUSE BLOCK | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – 2009-08 Spec:7.5A,MINI FUSE,BRN | |||
| 90982-09009 | FUSE, FUSE BLOCK | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – 2009-08 Spec:10A,MINI FUSE,RED | |||
| 90982-09010 | FUSE, FUSE BLOCK | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – 2009-08 Spec:15A,MINI FUSE,BLUE | |||
| 90982-09011 | FUSE, FUSE BLOCK | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – 2009-08 Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09012 | FUSE, FUSE BLOCK | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – 2009-08 Spec:25A,MINI FUSE | |||
| 90982-09013 | FUSE, FUSE BLOCK | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – 2009-08 Spec:30A,MINI FUSE,GRN | |||
| — | Part does not apply to this vehicle configuration. | 85934A | — |
| 90987-02027 | RELAY, FOG LAMP | 1 | |
Note:GRJ12#,KDJ12# Production:2004-08 – … Spec:FRONT FOG LAMP-WITH | |||
| 90987-02025 | RELAY, IGNITION, NO.1 | 1 | |
Note:1KDFTV..KDJ12# Production:2002-09 – … | |||
| 90987-04004 | RELAY, DEFOGGER | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – … | |||
| 90987-04010 | RELAY ASSY (FOR HEATER BLOWER MOTOR) | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – … | |||
| 90987-02025 | RELAY, HEADLAMP | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – … | |||
| 28610-54360 | RELAY ASSY, GLOW PLUG(SUB) | 1 | |
Note:1KDFTV..KDJ12# Production:2002-09 – … | |||
| — | Part does not apply to this vehicle configuration. | 85913C | — |
| 90987-02025 | RELAY ASSY, STARTER | 1 | |
Note:1KDFTV..KDJ12# Production:2004-06 – … | |||
| — | Part does not apply to this vehicle configuration. | 85930K | — |
| 82663-35090 | COVER, RELAY BLOCK, LOWER | 4 | |
Note:KDJ12#..LHD Production:2006-08 – … Spec:ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) | |||
| 82663-35100 | COVER, RELAY BLOCK, LOWER, NO.2 | 8 | |
Note:KDJ12#..LHD Production:2006-08 – … Spec:ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) | |||
| 82742-35050 | BLOCK, ENGINE ROOM RELAY, NO.5 | 4 | |
Note:KDJ12#..LHD Production:2006-08 – … Spec:ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) | |||
| 82662-3D150 | COVER, RELAY BLOCK, UPPER, NO.2 | 1 | |
Note:GRJ12#,KDJ12# Production:2004-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 85926 | — |
| 82662-60170 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:KDJ12# Production:2006-08 – … | |||
| 82741-35110 | BLOCK, ENGINE ROOM RELAY | 4 | |
Note:KDJ12#..LHD Production:2006-08 – … Spec:ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) | |||
| 82742-35030 | BLOCK, ENGINE ROOM RELAY, NO.2 | 4 | |
Note:KDJ12#..LHD Production:2006-08 – … Spec:ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) | |||
| 82662-3D140 | COVER, RELAY BLOCK, UPPER, NO.3 | 1 | |
Note:KDJ12# Production:2002-09 – … | |||
| — | Part does not apply to this vehicle configuration. | 82660 | — |
| — | Part does not apply to this vehicle configuration. | 82663B | — |
| — | Part does not apply to this vehicle configuration. | 87121J | — |
| — | Part does not apply to this vehicle configuration. | 82662D | — |
| 82616-20010 | PULLER, FUSE | 1 | |
Note:GRJ120..5FC;GRJ125,KDJ12#;GRJ120..LHD..4FC Production:2003-08 – 2009-08 | |||
| 90982-08202 | FUSIBLE LINK | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – 2009-08 Spec:60A,TERM.:MALE,YEL | |||
| 90982-08203 | FUSIBLE LINK | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – 2009-08 Spec:80A,TERM.:MALE,BLK | |||
| 90982-08281 | FUSIBLE LINK | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – 2009-08 Spec:40A,TERM.:FEMALE,GRN | |||
| 90982-08282 | FUSIBLE LINK | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – 2009-08 Spec:50A,TERM.:FEMALE,RED | |||
| 90982-08283 | FUSIBLE LINK | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – 2009-08 Spec:30A,TERM.:FEMALE,PNK | |||
| 90982-08286 | FUSIBLE LINK | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – 2009-08 Spec:140A,TERM.:MALE,RBR | |||
| 82824-20140 | PIN, SHORT | 1 | |
Note:GRJ120..5FC;GRJ125,KDJ12#;GRJ120..LHD..4FC Production:2003-08 – 2009-08 | |||
| 90987-02028 | RELAY, MAGNET-CLUTCH | 1 | |
Note:GRJ12#,KDJ12# Production:2002-09 – 2009-08 Spec:AIR CONDITIONER-SINGLE AUTO | |||
| 94150-80600 | standard | — | |
| 90119-06830 | standard | — | |
| 90179-06306 | standard | — | |
| 91631-B0614 | standard | — | |

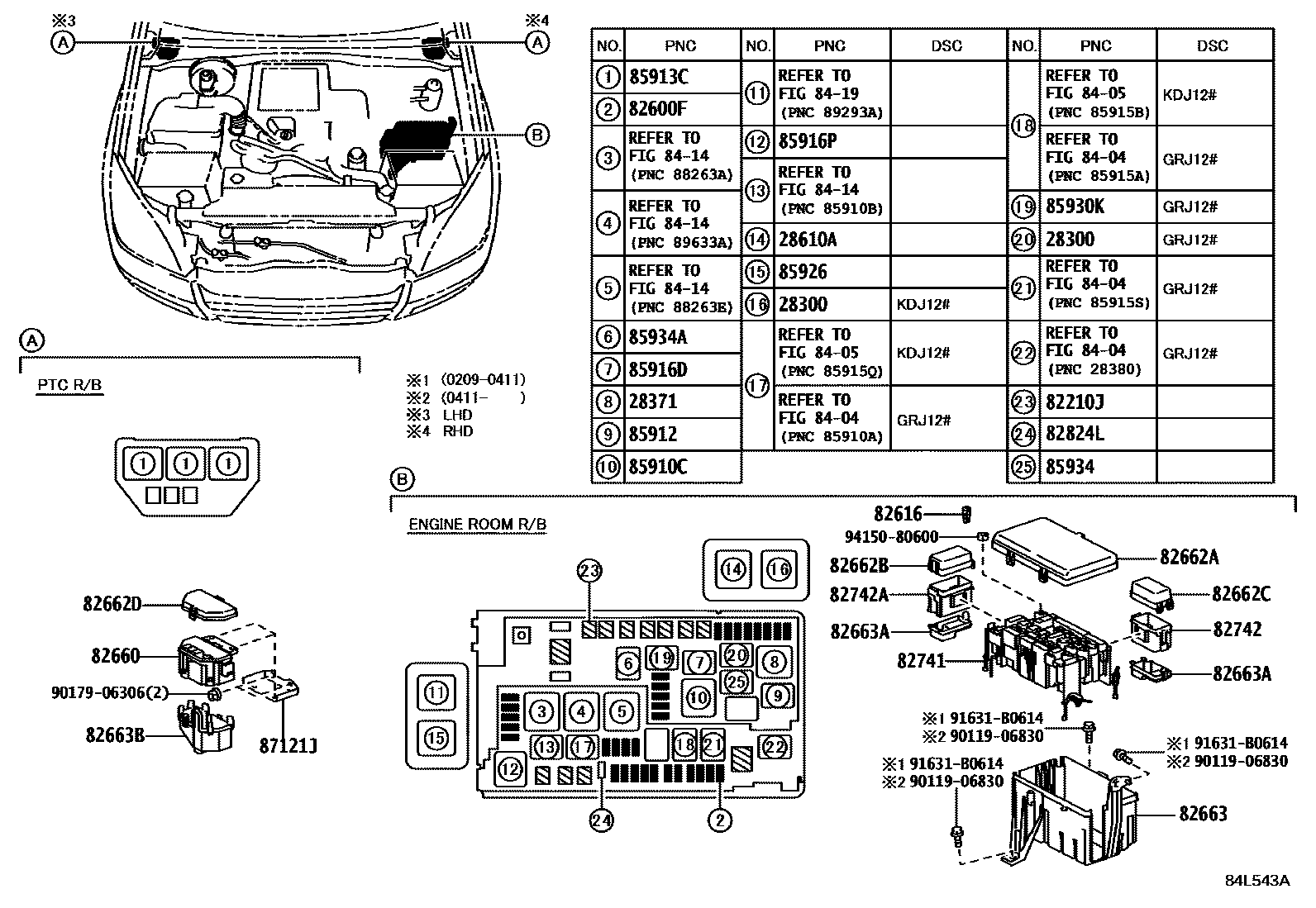

Diagram
34 parts
