Open RegionYearModelModelCode Details
Europe 2005 YARIS JPP KSP90R-AHMRKW
Catalog: TOYOTA202608 Engine: 1000CC 12-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: STANDARD TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Doors Description: 5-DOOR Color Code: 1F8 Trim Code: FU18 Production: 200508-200808 Model Short: KSP90R-AHMRKW Region: EU Native Region: EU

Toyota YARIS-JPP 2005 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
83320-52180 GAGE ASSY, FUEL SENDER 1
Note:KSP90..JPP Production:2005-08 – 2006-06 Replacements:83320-52181 (fitment: unknown)
84231-52020 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 2
Note:KSP90,ZSP90..JPP..5D..5F Production:2005-08 – …
84810-52030 SWITCH ASSY, POWER WINDOW REGULATOR 1
Note:KSP90..JPP..STD Production:2005-08 – 2008-08 Spec:POWER WINDOW-WITH(FRONT ONLY = ONE TOUCH TYPE)
84820-52210 MASTER SWITCH ASSY, POWER WINDOW REGULATOR 1
Note:KSP90..JPP..RHD..STD Production:2005-08 – 2008-08 Replacements:84820-52380 (fitment: unknown) Spec:POWER WINDOW-WITH(FRONT ONLY = ONE TOUCH TYPE)
84231-52010 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 2
Note:KSP90,ZSP90..JPP..5F Production:2005-08 – …
— Part does not apply to this vehicle configuration. 895A0 —
90164-40103 standard —
90119-06915 standard —
90166-70001 standard —
90166-60004 standard —

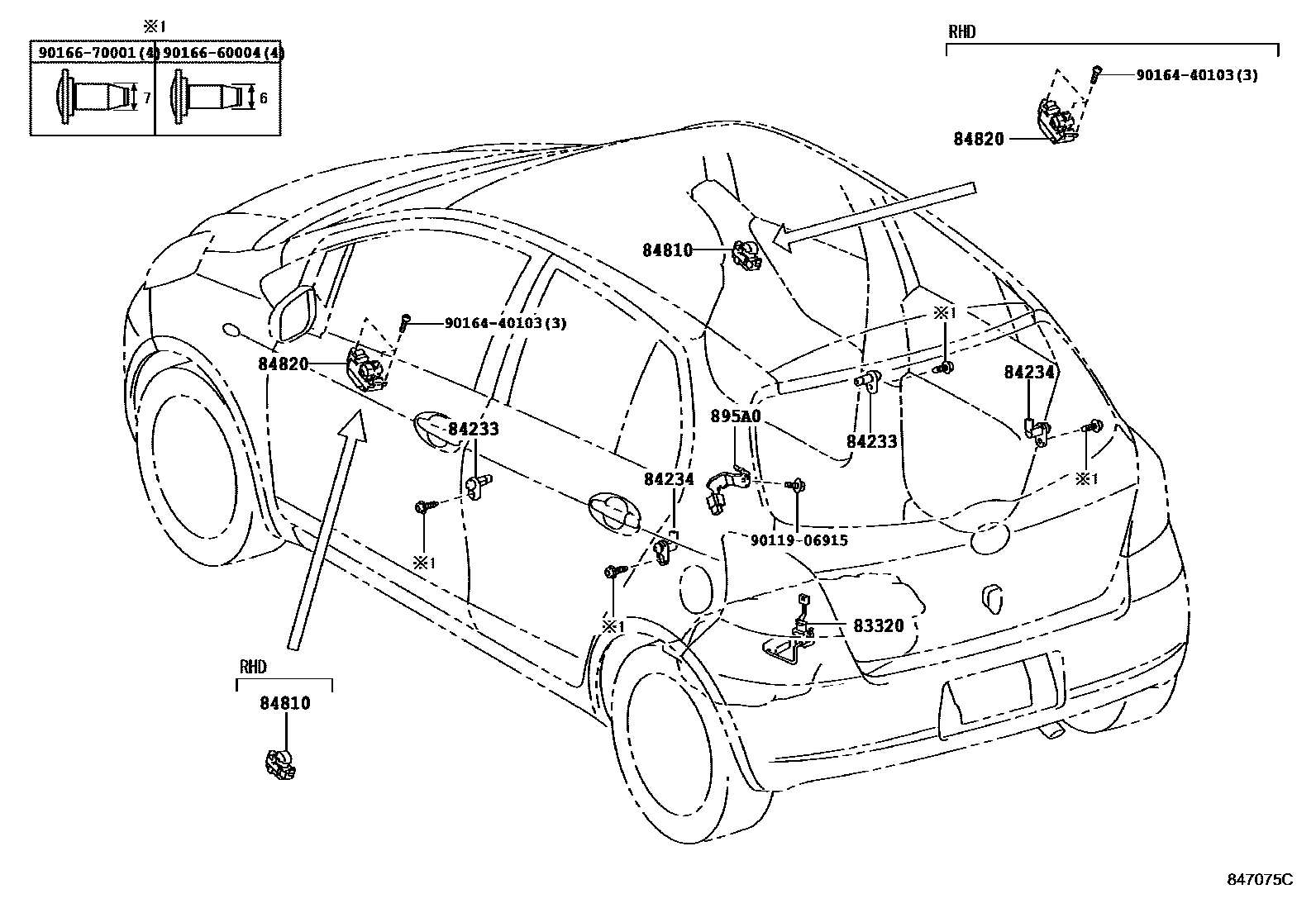

Diagram

9 parts
Toyota YARIS-JPP 2005 — Switch & Relay & Computer
