Toyota Aygo 2009 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89465-0H010 | SENSOR, OXYGEN | 1 | |
Note:KGB10 Production:2008-12 – 2012-02 | |||
| 89465-0H020 | SENSOR, OXYGEN NO.2 | 1 | |
Note:KGB10 Production:2008-12 – 2012-02 | |||
| 89615-0H010 | SENSOR, KNOCK CONTROL | 1 | |
Note:KGB10 Production:2008-12 – 2012-02 | |||
| 83530-05010 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:KGB10 Production:2008-12 – 2012-02 Replacements:83530-60020 (fitment: unknown) Spec:JAEGER | |||
| 83530-28020 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:KGB10 Production:2008-12 – 2012-02 Spec:DENSO | |||
| 83530-60020 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:KGB10 Production:2008-12 – 2012-02 Spec:YAZAKI | |||
| 84210-52021 | SWITCH ASSY, BACK-UP LAMP | 1 | |
Note:KGB10 Production:2008-12 – 2012-02 | |||
| — | Part does not apply to this vehicle configuration. | 84540 | — |
| 82715-70031 | standard | — | |
| 91551-80830 | standard | — | |
| 90105-W0016 | standard | — | |
Replacements:91551-80830 (fitment: unknown) | |||
| 82715-70010 | standard | — | |
| 82715-70050 | standard | — | |
| 90105-W0038 | standard | — | |
Replacements:91551-A0612 (fitment: unknown) | |||
| 91671-80816 | standard | — | |
| 82715-70040 | standard | — | |
| 90119-W0019 | standard | — | |
Replacements:91671-80612 (fitment: unknown) | |||
| 90430-18008 | standard | — | |

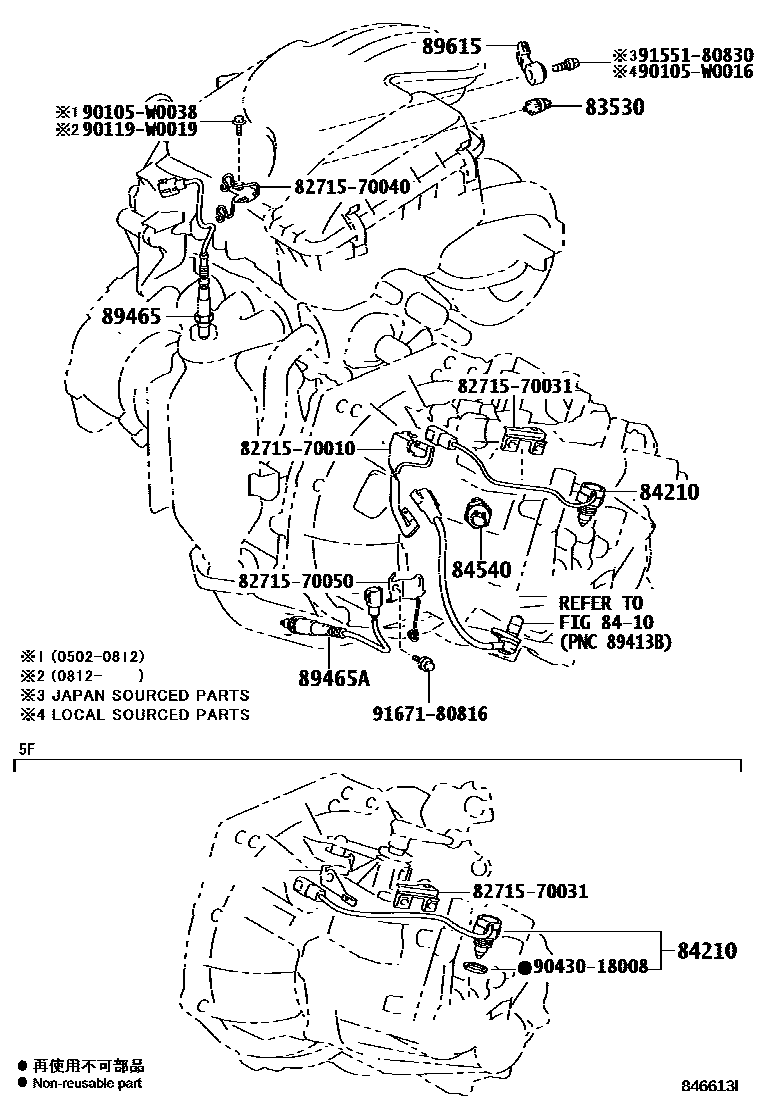

Diagram
17 parts
