Toyota Prius 2018 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 81851C | — |
| 84010-47300 | SWITCH ASSY, PATTERN SELECT | 1 | |
Note:ZVW50..RHD Production:2015-11 – 2018-12 | |||
| 85530-42010 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 85535-47030 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 85535-47030 | COVER, POWER OUTLET SOCKET, NO.2 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 85530-42010 | SOCKET ASSY, POWER OUTLET, NO.2 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 84332-47050 | SWITCH ASSY, HAZARD WARNING SIGNAL | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 84718-47090 | SWITCH, TRANSMISSION SHIFT MAIN | 1 | |
Note:ZVW50..RHD Production:2015-11 – 2018-12 | |||
| 84010-47280 | SWITCH ASSY, COMBINATION | 1 | |
Note:ZVW50..RHD Production:2015-11 – 2018-12 | |||
| 89611-30142 | SWITCH, PUSH START | 1 | |
Note:ZVW50 Production:2016-06 – 2018-12 Replacements:89611-30144 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 84751F | — |
| — | Part does not apply to this vehicle configuration. | 84751 | — |
| 84010-47250 | SWITCH ASSY, COMBINATION NO.2 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 84841-47020 | SWITCH, FUEL LID OPENER | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||

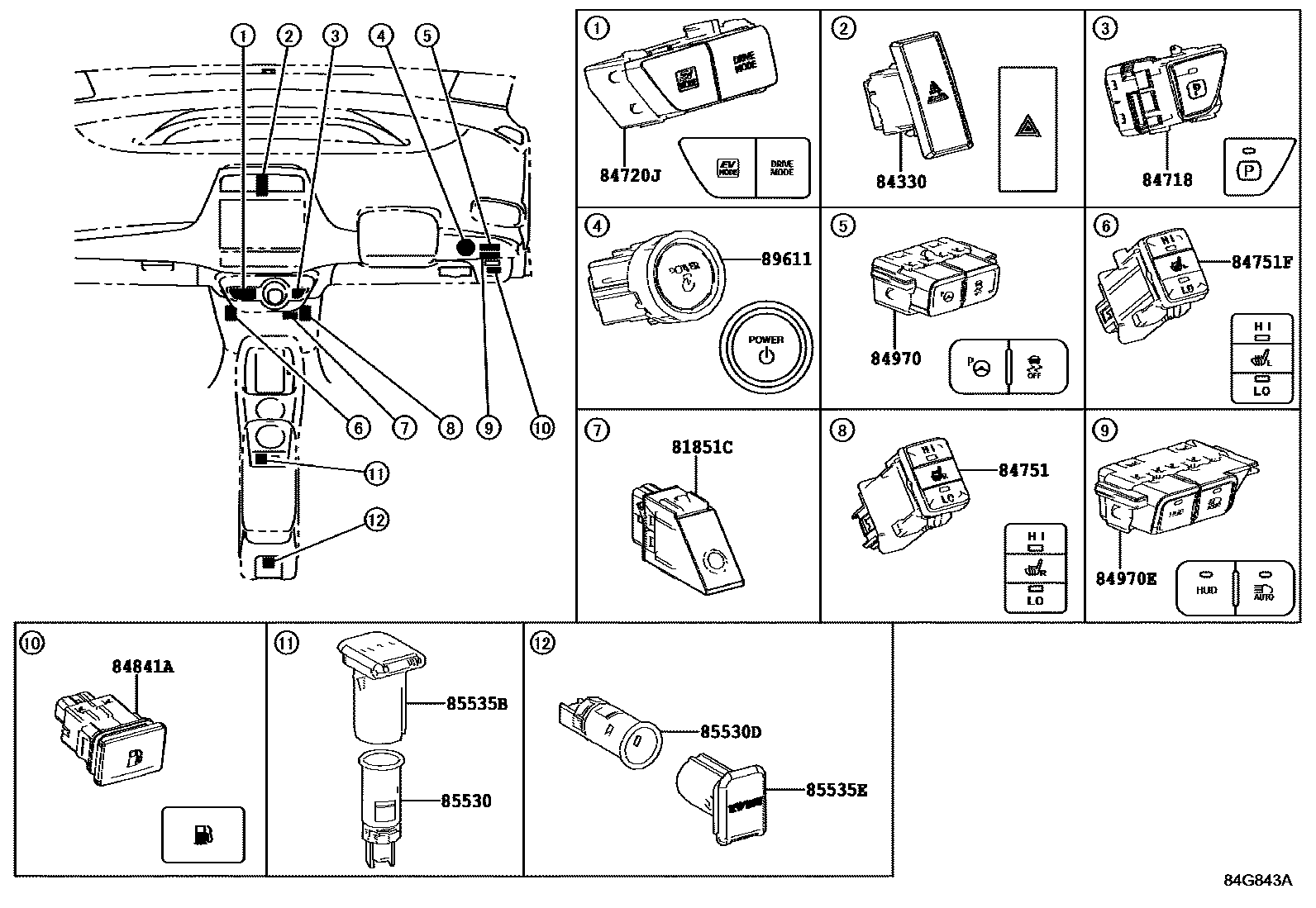

Diagram
11 parts
