General 2007 COROLLA SED WG NZE141R-AEPDK
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Vehicle Grade: LX TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 1G3 Trim Code: FC16 Production: 200708-201007 Model Short: NZE141R-AEPDK Region: OTHER Native Region: GR

Toyota COROLLA-SED-WG 2007 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84820-12530 MASTER SWITCH ASSY, POWER WINDOW REGULATOR 1
Note:CE140,NZE141..RHD..(LX,XLI) Production:2007-08 – 2010-07 Spec:POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
84810-52030 SWITCH ASSY, POWER WINDOW REGULATOR 1
Note:CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN Production:2007-08 – 2010-07 Spec:POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
84231-60070 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 2
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
84810-52030 SWITCH ASSY, POWER WINDOW REGULATOR, REAR 2
Note:CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN Production:2007-08 – 2010-07 Spec:POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
84231-60070 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 2
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
— Part does not apply to this vehicle configuration. 84840G —
83320-12770 GAGE ASSY, FUEL SENDER 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90164-40103 standard —
90166-70001 standard —

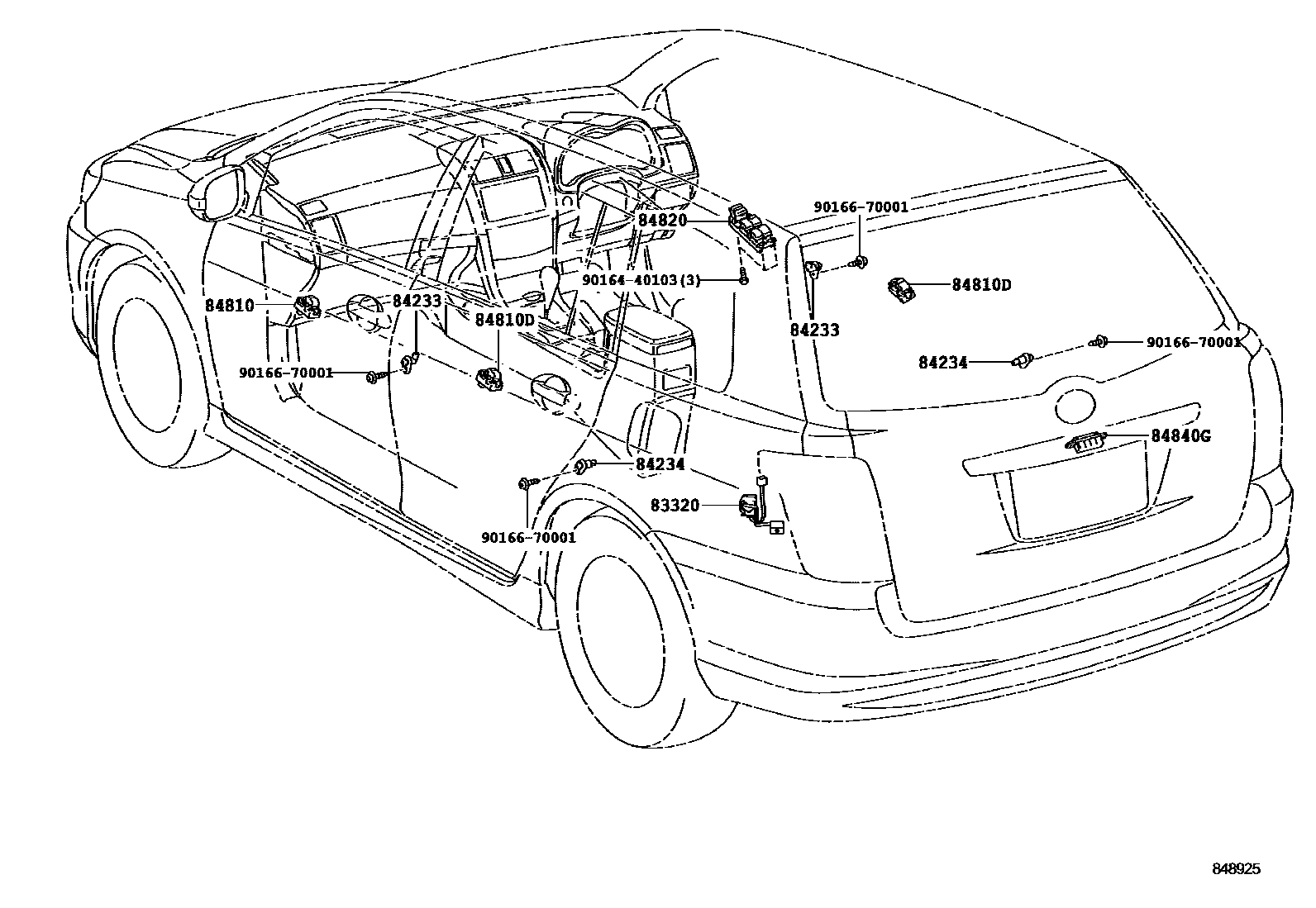

Diagram

8 parts
Toyota COROLLA-SED-WG 2007 — Switch & Relay & Computer
