Toyota COROLLA-SED-WG 2007 — Heating & Air Conditioning - Cooler Unit
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 82210K | — |
| 87114-12080 | COVER, HEATER | 1 | |
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 88548-42010 | CASE, AIR FILTER | 1 | |
Note:CE140,NZE141..RHD..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 87050-12310 | RADIATOR ASSY, AIR CONDITIONER | 1 | |
Note:NZE141,ZZE14#..RHD..SED Production:2007-08 – 2010-04 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 88625-26090 | THERMISTOR, COOLER, NO.1 | 1 | |
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – … Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| — | Part does not apply to this vehicle configuration. | 87106J | — |
| — | Part does not apply to this vehicle configuration. | 87106H | — |
| 87107-42170 | UNIT SUB-ASSY, HEATER RADIATOR | 1 | |
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 87106-42110 | SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | 1 | |
Note:CE140,NZE141..RHD..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 87130-12430 | BLOWER ASSY | 1 | |
Note:NZE141,ZZE14#..RHD..SED Production:2007-08 – 2008-06 Replacements:87130-12431 (fitment: unknown) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 88539-12190 | HOSE, DRAIN COOLER | 1 | |
Note:CE140,NZE141..RHD..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 87139-52020 | FILTER, CLEAN AIR | 1 | |
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 87103-42070 | MOTOR SUB-ASSY, BLOWER W/FAN | 1 | |
Note:CE140,NZE141..RHD..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 88650-12A80 | AMPLIFIER ASSY, AIR CONDITIONER | 1 | |
Note:NZE141..4FC;ZZE142..LHD..GEN Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 88515-42090 | VALVE, COOLER EXPANSION | 1 | |
Note:NZE141,ZZE14#..SED Production:2007-08 – 2009-01 | |||
| 88501-26210 | EVAPORATOR SUB-ASSY, COOLER, NO.1 | 1 | |
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2008-05 Replacements:88501-26211 (fitment: unknown) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 90099-14120 | O-RING, COOLER EVAPORATOR NO.1(LIQUID) | 1 | |
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:ID=10.8,OD=15.6 | |||
| 90099-14121 | O-RING, COOLER EVAPORATOR NO.1(SUCTION) | 1 | |
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:ID=13.4,OD=18.2 | |||
| 90159-60303 | standard | — | |
| 90119-06942 | standard | — | |
| 87128-42010 | standard | — | |
| 90179-06282 | standard | — | |
| 90159-60383 | standard | — | |
| 90119-06952 | standard | — | |
| 90099-00318 | standard | — | |

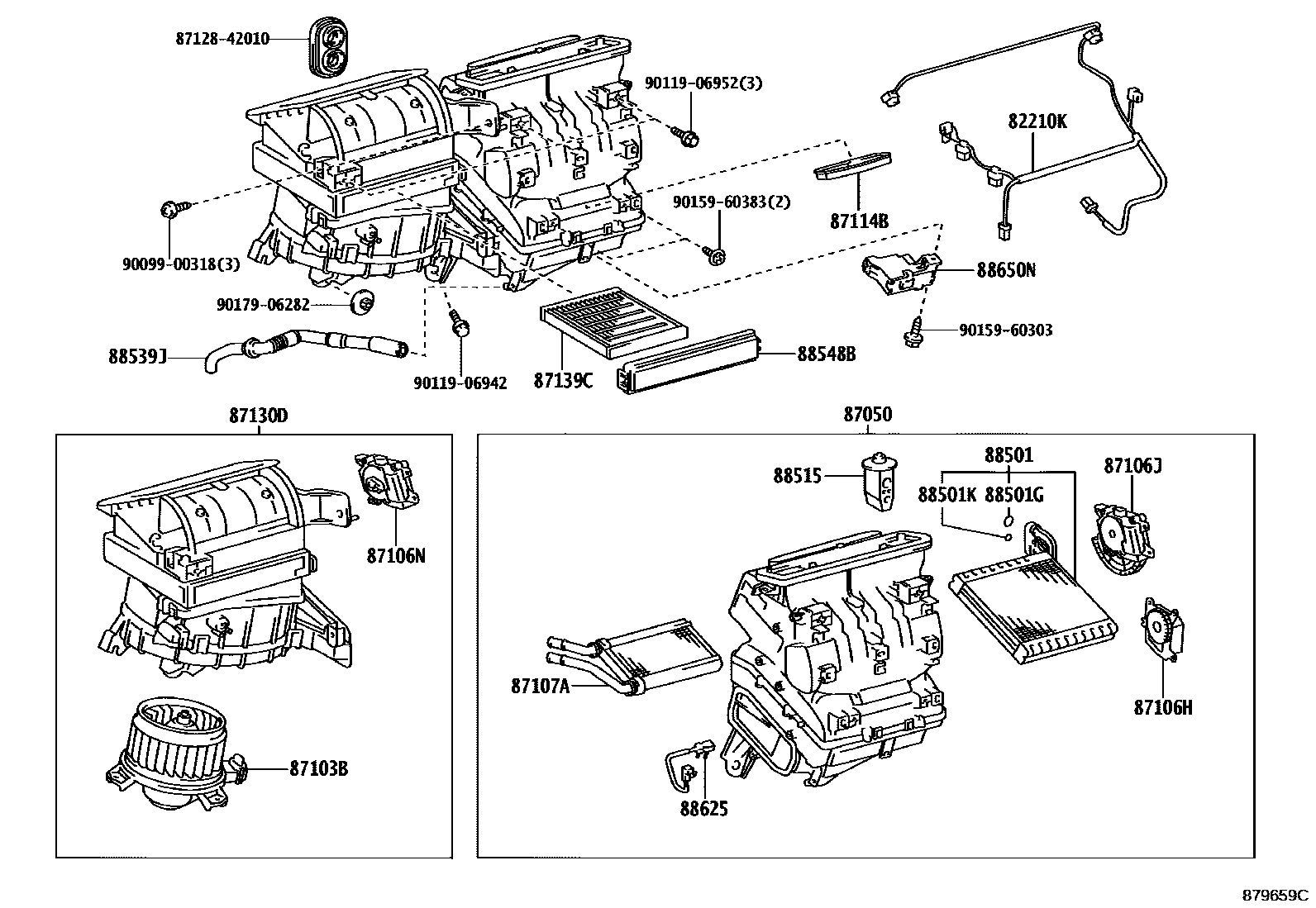

Diagram
22 parts
