Toyota Starlet 1994 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 85999X | — |
| 85980-10010 | RELAY ASSY, DOOR CONTROL | 1 | |
Note:EP8#,NP80..GL,GLI,S,SI,XL,XLI Production:1989-12 – 1996-01 Fitment:Matches · configuration | |||
| 85969-10010 | RELAY, LIGHT REMINDER | 1 | |
Note:EP8#,NP80 Production:1989-12 – 1996-01 Fitment:Matches · configuration | |||
| 82671-10021 | BLOCK, JUNCTION | 1 | |
Note:EP8#,NP80..LHD Production:1991-07 – 1996-01 Fitment:Matches · configuration | |||
| 90982-07011 | FUSE, FUSE BLOCK | 1 | |
Note:EP80,NP80;EP81..LHD;EP81..RHD..EFI Production:1991-06 – 1996-01 Spec:30A,GREEN Fitment:Matches · configuration | |||
| 90982-09002 | FUSE, FUSE BLOCK | 2 | |
Note:EP80,NP80;EP81..LHD;EP81..RHD..EFI Production:1991-06 – 1996-01 Spec:10A Fitment:Matches · configuration | |||
| 90982-09004 | FUSE, FUSE BLOCK | 1 | |
Note:EP80,NP80;EP81..LHD;EP81..RHD..EFI Production:1991-06 – 1996-01 Spec:20A,YELLOW Fitment:Matches · configuration | |||
| 90982-09005 | FUSE, FUSE BLOCK | 1 | |
Note:EP80,NP80;EP81..LHD;EP81..RHD..EFI Production:1991-06 – 1996-01 Spec:7.5A Fitment:Matches · configuration | |||
| 90982-09003 | FUSE, FUSE BLOCK | 2 | |
Note:EP80,NP80;EP81..LHD Production:1992-01 – 1996-01 Spec:15A Fitment:Matches · configuration | |||
| 90982-09003 | FUSE, FUSE BLOCK | 4 | |
Note:EP81 Production:1992-12 – 1996-01 Spec:15A Fitment:Matches · configuration | |||
| 90982-09004 | FUSE, FUSE BLOCK | 2 | |
Note:EP81 Production:1992-12 – 1996-01 Spec:20A,YELLOW Fitment:Matches · configuration | |||
| 90982-09002 | FUSE, FUSE BLOCK | 4 | |
Note:EP81..3FC Production:1994-05 – 1996-01 Spec:10A,NORWAY SPEC OR ICELAND SPEC Fitment:Matches · configuration | |||
| 85999-10090 | BRACKET, RELAY, NO.2 | 1 | |
Note:EP81..LHD Production:1994-05 – 1996-01 Spec:NORWAY SPEC OR W(*66) OR W(*EL) OR W(*SNR) OR W(*AIC) OR ICELAND SPEC Spec Note:NORWAY SPEC OR W(*66(ANTI-LOCK BRAKING SYSTEM)) OR W(*EL) OR W(*SNR) OR W(*AIC) OR ICELAND SPEC Fitment:Matches · configuration | |||
| 82616-12020 | PULLER, FUSE | 1 | |
Note:EP80,NP80;EP81..LHD;EP81..RHD..EFI Production:1991-06 – 1996-01 Fitment:Matches · configuration | |||
| 81980-12070 | FLASHER ASSY, TURN SIGNAL | 1 | |
Note:EP80,NP80;EP81..LHD;EP81..RHD..EFI Production:1991-06 – 1996-01 Replacements:81980-32010 (fitment: unknown) Fitment:Matches · configuration | |||
| 85999-10070 | BRACKET, RELAY | 1 | |
Note:EP8#,NP80..LHD Production:1989-12 – 1996-01 Fitment:Matches · configuration | |||
| 90987-02006 | RELAY, MAIN | 1 | |
Note:EP8#,NP80 Production:1992-01 – 1996-01 Fitment:Matches · configuration | |||
| 90987-02002 | RELAY, MAIN | 1 | |
Note:EP81..RHD..5D;EP81..LHD..XLI Production:1994-05 – 1996-01 Replacements:90987-02004 (fitment: unknown) Spec:MARUKO Fitment:Matches · configuration | |||
| 90987-02004 | RELAY, MAIN | 1 | |
Note:EP81..RHD..5D;EP81..LHD..XLI Production:1994-05 – 1996-01 Spec:NIPPONDENSO Fitment:Matches · configuration | |||
| 82650-20011 | BREAKER ASSY, WIRING CIRCUIT, NO.1 | 1 | |
Note:EP81..RHD..EFI;EP80,NP80..GL,XL;EP81..LHD..(GL,S,SI,XL,XLI) Production:1991-06 – 1996-01 Spec:30A Fitment:Matches · configuration | |||
| 90987-02006 | RELAY, LIGHT CONTROL | 1 | |
Note:EP81..LHD..EFI Production:1992-01 – 1996-01 Spec:NORWAY SPEC OR ICELAND SPEC,HEAD LAMP Fitment:Matches · configuration | |||
| 90987-02008 | RELAY, LIGHT CONTROL | 1 | |
Note:EP81..LHD..EFI Production:1992-01 – 1996-01 Spec:NORWAY SPEC OR ICELAND SPEC,TAIL LAMP Fitment:Matches · configuration | |||
| 82610-10060 | BLOCK ASSY, FUSE | 1 | |
Note:EP8#,NP80 Production:1992-01 – 1996-01 Fitment:Matches · configuration | |||
| 82610-10070 | BLOCK ASSY, FUSE | 1 | |
Note:EP81 Production:1992-12 – 1996-01 Spec:E/G ROOM Fitment:Matches · configuration | |||
| 90987-02008 | RELAY, FOG LAMP | 1 | |
Note:EP81..3FC Production:1992-01 – 1996-01 Spec:NORWAY SPEC OR ICELAND SPEC Fitment:Matches · configuration | |||
| 82642-13010 | RELAY, RUNNING LIGHT | 1 | |
Note:EP81..LHD..EFI Production:1992-01 – 1996-01 Spec:NORWAY SPEC OR ICELAND SPEC Fitment:Matches · configuration | |||
| 85999-10140 | BRACKET, RELAY, NO.4 | 1 | |
Note:EP81..LHD..EFI Production:1992-01 – 1996-01 Spec:NORWAY SPEC OR ICELAND SPEC Fitment:Matches · configuration | |||
| 85999-10100 | BRACKET, RELAY, NO.3 | 1 | |
Note:EP81..LHD..EFI Production:1992-01 – 1996-01 Spec:NORWAY SPEC OR ICELAND SPEC Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 28529 | — |
| — | Part does not apply to this vehicle configuration. | 28521 | — |
| — | Part does not apply to this vehicle configuration. | 89279A | — |
| 90179-06009 | standard | — | |
Replacements:90179-06156 (fitment: unknown) Fitment:Matches · configuration | |||
| 90159-50138 | standard | — | |
Fitment:Matches · configuration | |||
| 90167-50002 | standard | — | |
Replacements:93568-55014 (fitment: unknown) Fitment:Matches · configuration | |||
| 90119-06120 | standard | — | |
Fitment:Matches · configuration | |||
| 90159-60200 | standard | — | |
Fitment:Matches · configuration | |||
| 90467-05050 | standard | — | |
Replacements:90467-05050-22 (fitment: unknown) Fitment:Matches · configuration | |||
| 90090-80510 | standard | — | |
Fitment:Matches · configuration | |||

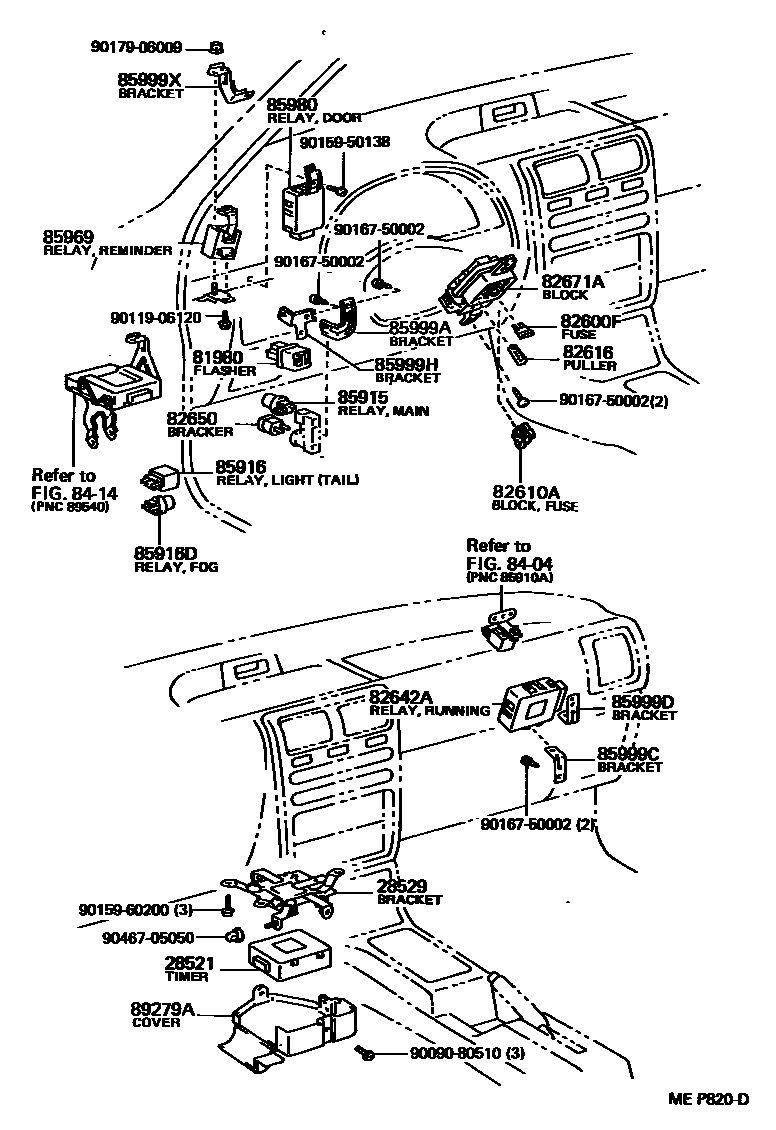

Diagram
34 parts
