Open RegionYearModelModelCode Details
Europe 1998 COROLLA SED WG EE111L-AEMDKW
Catalog: TOYOTA202608 Engine: 1300CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 5-SPEED FLOOR SHIFT Body Description: SEDAN Vehicle Grade: TERRA TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Color Code: 199 Trim Code: HG10 Production: 199704-199910 Model Short: EE111L-AEMDKW Region: EU Native Region: EU

Toyota COROLLA-SED-WG 1998 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
81980-12110 FLASHER ASSY, TURN SIGNAL 1
Note:AE11#,CE110,EE11# Production:1998-03 – 1999-06 Replacements:81980-32010 (fitment: unknown) Spec:DENSO Fitment:Matches · configuration
81980-0W010 FLASHER ASSY, TURN SIGNAL 1
Note:AE11#,CE110,EE11# Production:1998-03 – 1999-10 Spec:TRIDON Fitment:Matches · configuration
90987-02012 RELAY, TAILLAMP 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Fitment:Matches · configuration
82671-30350 BLOCK, JUNCTION 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Spec:NO.3 Fitment:Matches · configuration
82671-30360 BLOCK, JUNCTION 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Spec:NO.2 Fitment:Matches · configuration
82671-30370 BLOCK, JUNCTION 2
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Spec:NO.1,6 Fitment:Matches · configuration
90987-02012 RELAY ASSY, POWER WINDOW 1
Note:AE11#,CE110,EE11#..LUNA,TERRA Production:1997-04 – 1999-10 Fitment:Matches · configuration
90987-04002 RELAY ASSY (FOR HEATER BLOWER MOTOR) 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Fitment:Matches · configuration
90080-82020 FUSE, FUSE BLOCK 1
Note:AE11#,CE110,EE11#..LHD Production:1997-04 – 1999-10 Replacements:90982-09008 (fitment: unknown) Spec:7.5A,MINI FUSE,BROWN,(L) Spec Note:7.5A,MINI FUSE,BROWN,(Local made) Fitment:Matches · configuration
90080-82021 FUSE, FUSE BLOCK 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Replacements:90982-09009 (fitment: unknown) Spec:10A,MINI FUSE,RED,(L) Spec Note:10A,MINI FUSE,RED,(Local made) Fitment:Matches · configuration
90080-82022 FUSE, FUSE BLOCK 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Replacements:90982-09010 (fitment: unknown) Spec:15A,MINI FUSE,BLUE,(L) Spec Note:15A,MINI FUSE,BLUE,(Local made) Fitment:Matches · configuration
90080-82023 FUSE, FUSE BLOCK 1
Note:AE11#,CE110,EE11#..LHD Production:1997-04 – 1999-10 Replacements:90982-09011 (fitment: unknown) Spec:20A,MINI FUSE,YELLOW,(L) Spec Note:20A,MINI FUSE,YELLOW,(Local made) Fitment:Matches · configuration
90080-82024 FUSE, FUSE BLOCK 1
Note:AE11#,CE110,EE11#..LHD Production:1997-04 – 1999-10 Replacements:90982-09013 (fitment: unknown) Spec:30A,MINI FUSE,GREEN,(L) Spec Note:30A,MINI FUSE,GREEN,(Local made) Fitment:Matches · configuration
90080-82031 FUSE, FUSE BLOCK 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Replacements:90982-09007 (fitment: unknown) Spec:5A,MINI FUSE,TAN,(L) Spec Note:5A,MINI FUSE,TAN,(Local made) Fitment:Matches · configuration
90080-82031 FUSE, FUSE BLOCK 1
Note:AE11#,CE110,EE11#..LHD Production:1997-04 – 1999-10 Replacements:90982-09007 (fitment: unknown) Spec:5A,MINI FUSE,TAN Fitment:Matches · configuration
90982-09003 FUSE, FUSE BLOCK 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Spec:15A Fitment:Matches · configuration
90982-10001 FUSE, MEDIUM CURRENT 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Spec:30A,PINK Fitment:Matches · configuration
90982-10002 FUSE, MEDIUM CURRENT 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Spec:40A,GREEN Fitment:Matches · configuration
82672-12370 COVER, JUNCTION BLOCK 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 87710F —
82734-12010 BLOCK, CENTER JUNCTION 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Fitment:Matches · configuration
82671-12200 BLOCK, JUNCTION 1
Note:AE11#,CE110,EE11#..LHD Production:1997-04 – 1999-10 Fitment:Matches · configuration
90080-87008 RELAY, DEFOGGER 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Replacements:90987-02012 (fitment: unknown) Spec:PART NUMBER LABEL=90080-87008 Fitment:Matches · configuration
90987-02012 RELAY, DEFOGGER 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Spec:PART NUMBER LABEL=90987-02012 Fitment:Matches · configuration
82810-12160 RELAY ASSY, RUNNING LIGHT 1
Note:AE11#,CE110,EE111..LHD Production:1997-04 – 1999-10 Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 85916D —
82751-13010 BLOCK, DRIVER SIDE RELAY 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 89279A —
82641-12100 RELAY, INTEGRATION NO.1 1
Note:AE111..RHD..LUNA;AE111,CE110,EE11#..STD,TERRA Production:1997-04 – 1999-10 Fitment:Matches · configuration
82641-12150 RELAY, INTEGRATION NO.1 1
Note:AE11#,CE110,EE11#..LHD..(LUNA,TERRA) Production:1997-04 – 1999-10 Spec:W(POWER DOOR LOCK) Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 89667B —
84340-32050 SWITCH ASSY, STOP LAMP 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Fitment:Matches · configuration
90987-02004 RELAY, SEAT HEATER 1
Note:AE11#,CE110,EE111..LHD..(LUNA,TERRA) Production:1997-04 – 1999-10 Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 89551 —
82732-02010 BLOCK ASSY, INSTRUMENT PANEL JUNCTION 1
Note:AE11#,CE110,EE11#..LHD Production:1997-04 – 1999-10 Fitment:Matches · configuration
82731-12020 BLOCK, DRIVER SIDE JUNCTION 1
Note:AE11#,CE110,EE11#..LHD Production:1997-04 – 1999-10 Fitment:Matches · configuration
82683-12210 PLATE, FUSE BLOCK CAUTION 1
Note:AE11#,CE110,EE11#..LHD Production:1997-04 – 1999-10 Fitment:Matches · configuration
84550-33010 SWITCH ASSY, PARKING BRAKE 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Fitment:Matches · configuration
82671-30350 BLOCK, JUNCTION 1
Note:AE11#,CE110,EE11#..LUNA,TERRA Production:1997-04 – 1999-10 Fitment:Matches · configuration
90159-60469 standard —
Fitment:Matches · configuration
90159-70004 standard —
Fitment:Matches · configuration
93568-15014 standard —
Replacements:93568-55014 (fitment: unknown) Fitment:Matches · configuration
82711-1B110 standard —
Fitment:Matches · configuration
90179-06100 standard —
Replacements:90179-06204 (fitment: unknown) Fitment:Matches · configuration
93315-14012 standard —
Fitment:Matches · configuration
90179-06178 standard —
Fitment:Matches · configuration

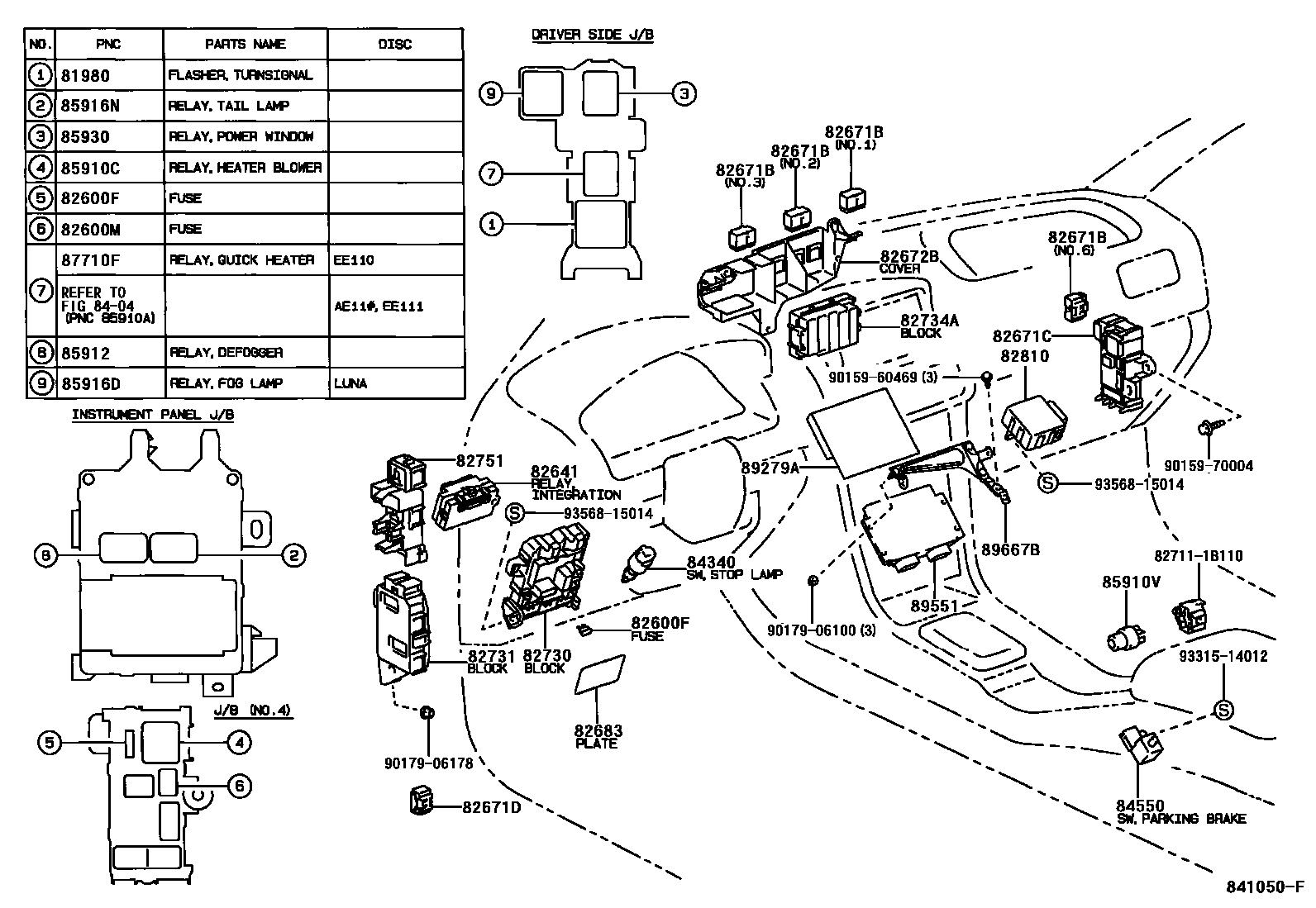

Diagram

41 parts
