Toyota Hilux 2013 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90987-02025 | RELAY ASSY, STARTER | 1 | |
Note:1KDFTV,2KDFTV,5LE..KUN1#,2#,3#,LAN15,25,35 Production:2011-07 – 2016-09 | |||
| 90987-T2003 | RELAY, HEADLAMP DIMMER | 1 | |
Note:TGN36..SR..LA;KUN26..LHD..SADCB..SR;KUN2#,36..DCB..SR..(ARL,CO,LA,SA);KUN26..(THDCB,XTR)..SR..(ARL,GEN);GGN15,25,35,KUN15,TGN26..SR..(DCR,HTWC,HTWCF)..(ARL,LA,SA) Production:2011-07 – 2015-12 Replacements:90987-04010 (fitment: unknown) | |||
| 90987-T2002 | RELAY, HEADLAMP | 1 | |
Note:TGN36..SR..LA;KUN26..LHD..SADCB..SR;KUN2#,36..DCB..SR..(ARL,CO,LA,SA);KUN26..(THDCB,XTR)..SR..(ARL,GEN);GGN15,25,35,KUN15,TGN26..SR..(DCR,HTWC,HTWCF)..(ARL,LA,SA) Production:2011-07 – 2015-12 Replacements:90987-02025 (fitment: unknown) | |||
| 28610-54390 | RELAY ASSY, INTAKE HEATER OR GLOW PLUG | 1 | |
Note:5LE..LAN25..DCB;5LE..LAN25..LHD..SCB;2KDFTV,5LE..KUN35,LAN15..LHD..(GEN,SA);2KDFTV..KUN35..(4FC,5F)..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV,5LE..KUN1#,2#,36,LAN35..DCR,DEFI,HDCR Production:2011-07 – 2014-07 Replacements:28610-27010 (fitment: unknown) | |||
| 90982-09013 | ENGINE ROOM FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:30A,MINI FUSE,GRN | |||
| 90982-09020 | ENGINE ROOM FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | ENGINE ROOM FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | ENGINE ROOM FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | ENGINE ROOM FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | ENGINE ROOM FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:25A,MINI FUSE | |||
| 82661-0K020 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:KUN26,36..DCB..SA;GGN25,35,TGN15..SA Production:2012-10 – 2016-01 | |||
| 82631-0K010 | HOLDER ASSY, FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … | |||
| 82662-0K230 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:KUN26..SADCB;KUN15,2#,3#,LAN15,25,35..SA Production:2011-08 – 2013-10 | |||
| 82616-58010 | PULLER, FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … | |||
| 82663-0K010 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … | |||
| 82741-0K010 | BLOCK, ENGINE ROOM RELAY | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … | |||
| 82744-0K010 | BLOCK, ENGINE ROOM RELAY, NO.2 | 1 | |
Note:KUN35..5FC;KUN36..4FC;KUN35..SR..SA;KUN26..4FC..IV3;KUN26..RHD..SADCB;KUN26..LHD..DCB..GEN;KUN35..(SCB,XTR)..SA;KUN25..RHD..(PKN,SA);KUN26..DCB..DLX..ARL;KUN26..5FC..(CO,GEN);KUN35..DCB..(GEN,PHL);KUN26,36..5F..(PHL,SA);KUN15,25..SR..(GEN,PHL,SA);KUN26..(4FC,5FC)..SR..(ARL,PHL,SA);KUN15,26..LHD..(DCB,SCB)..(HDCR,IART);KUN16..(DCB,SCB,SMT)..(4FC,5F)..(ARL,TH)..CBU;KUN15,LAN15,25,35..RHD..(DCR,DEFI)..(PKN,SA,TH) Production:2011-07 – 2016-09 | |||
| — | Part does not apply to this vehicle configuration. | 82742A | — |
| 82641-71020 | RELAY, INTEGRATION NO.1 | 1 | |
Note:KUN36..4FC;KUN35..4FC,5FC;KUN26..4FC..IV3;KUN26..RHD..SADCB;KUN26..5FC..(CO,GEN);KUN26..LHD..DCB..GEN;KUN35..(SCB,XTR)..SA;KUN25..RHD..(PKN,SA);KUN26..DCB..DLX..ARL;KUN15,25,36..5F..SR..SA;KUN26,35..5F..SR..(PHL,SA);KUN15,35..(DCB,SCB)..HDCR..GEN;KUN26..(4FC,5FC)..SR..(ARL,PHL,SA);KUN16..(DCB,SCB,SMT)..(4FC,5F)..(ARL,TH)..CBU;KUN15,LAN15,25,35..RHD..(DCR,DEFI)..(PKN,SA,TH) Production:2011-07 – 2016-09 | |||
| 82620-71012 | BLOCK ASSY, FUSIBLE LINK | 1 | |
Note:KUN35..5FC;KUN36..4FC;KUN35..SR..SA;KUN26..4FC..IV3;KUN26..RHD..SADCB;TGN26..DLX..HTWCF;TGN36..SR..HTWC..LA;KUN25..RHD..(PKN,SA);KUN26..DCB..DLX..ARL;KUN26..5FC..(CO,GEN);KUN26..LHD..DCB..GEN;KUN35..(SCB,XTR)..SA;KUN26,36..5F..(PHL,SA);KUN26..(4FC,5FC)..SR..(ARL,PHL,SA);KUN15,35..(DCB,SCB)..HDCR..(GEN,PHL);GGN15,25,35,KUN26,LAN35..DEFI,HTWC,IART;KUN15,LAN15,25..RHD..(DCR,DEFI)..(PKN,SA,TH);KUN15,25,TGN26..(DCB,XTR)..SR..(GEN,LA,PHL,SA);KUN16,TGN36..(DCB,SCB,SMT)..(4FC,5F)..(DCR,HTWCF)..(ARL,LA,TH)..CBU Production:2011-07 – … | |||
| 82715-0K800 | standard | — | |
| 90119-T0185 | standard | — | |
Replacements:90119-06923 (fitment: unknown) | |||
| 90119-06923 | standard | — | |

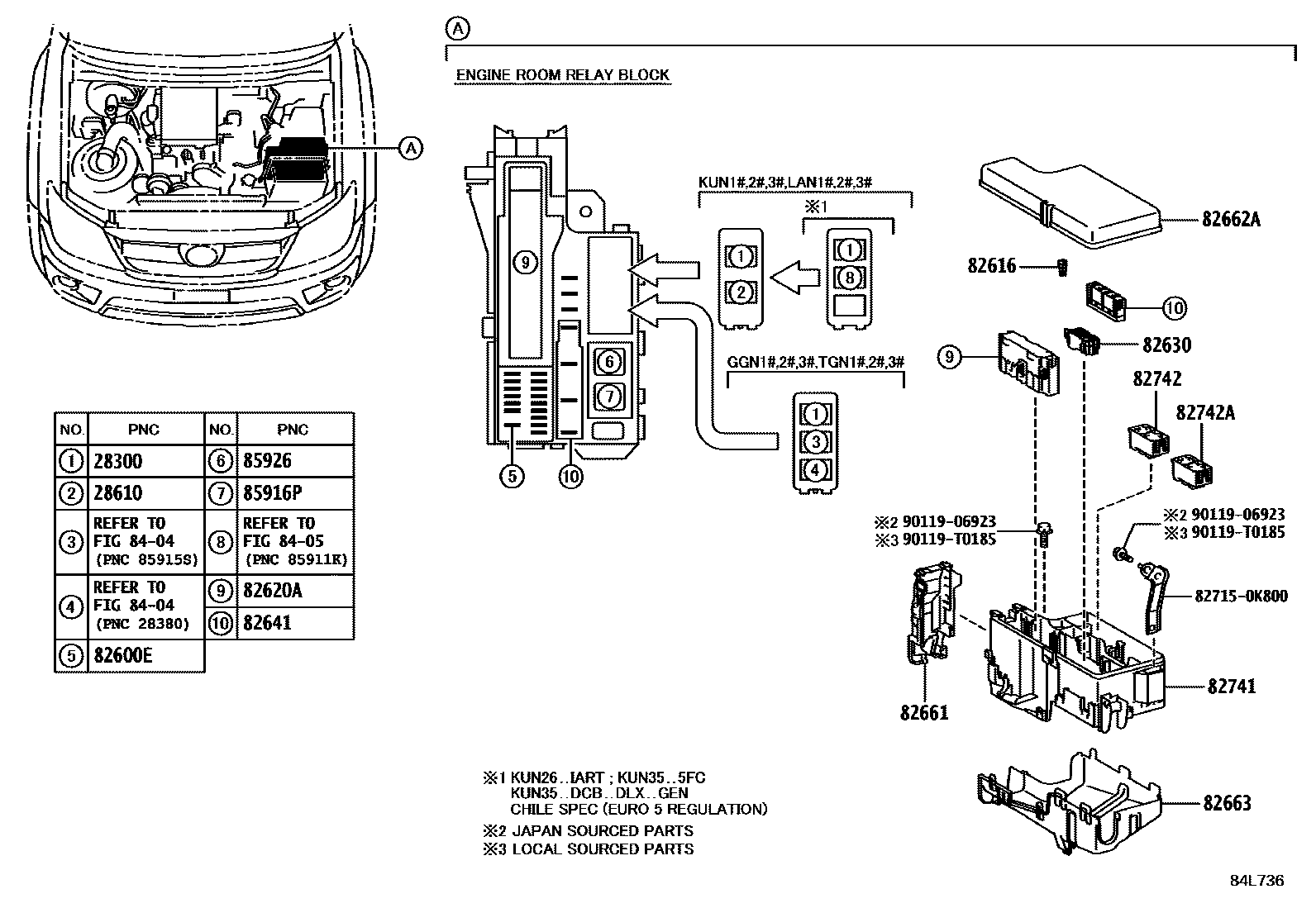

Diagram
22 parts
