Toyota Hilux 2010 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 89467B | — |
| 89465-0K010 | SENSOR, OXYGEN | 1 | |
Note:TGN16..GCC,SA;TGN26..SR..GEN;TGN26..LHD..(ANCOM,GCC,SA)..CBU;TGN10,11,15,36..ANCOM,GCC,GEN,IDN,SA Production:2008-08 – 2012-04 | |||
| 83181-35041 | SENSOR, SPEEDOMETER | 1 | |
Note:KUN10,15,LAN15,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) Production:2009-07 – 2011-08 | |||
| 90301-18018 | RING, O (FOR SPEEDOMETER SENSOR) | 1 | |
Note:KUN10,15,LAN15,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) Production:2008-08 – 2011-08 | |||
| — | Part does not apply to this vehicle configuration. | 84540 | — |
| 83530-28020 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:TGN36..CBU;GGN25..5FC..SA;GGN15,35,TGN1#;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA) Production:2008-08 – 2012-04 Spec:DENSO | |||
| 83530-60020 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:TGN36..CBU;GGN25..5FC..SA;GGN15,35,TGN1#;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA) Production:2008-08 – 2012-04 Spec:YAZAKI | |||
| 89615-20090 | SENSOR, KNOCK CONTROL | 1 | |
Note:TGN16..XTR;TGN15,36..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);TGN10,11,16..ARL,GCC,IDN,SA,TH Production:2008-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 84222C | — |
| — | Part does not apply to this vehicle configuration. | 84222B | — |
| — | Part does not apply to this vehicle configuration. | 84222 | — |
| 84210-12040 | SWITCH ASSY, BACK-UP LAMP | 1 | |
Note:KUN15,LAN15,25,35,TGN15..DLX..SA Production:2008-10 – 2011-08 Replacements:84210-52050 (fitment: unknown) | |||
| 82715-0K820 | standard | — | |
| 90119-T0126 | standard | — | |
Replacements:91674-80825 (fitment: unknown) | |||
| 90105-T0004 | standard | — | |
| 91651-40830 | standard | — | |
| 84549-71011 | standard | — | |
| 90105-T0066 | standard | — | |
Replacements:91551-80612 (fitment: unknown) | |||
| 82715-0K410 | standard | — | |
| 82711-2B660 | standard | — | |
| 91511-B0830 | standard | — | |
| 82715-35A30 | standard | — | |
| 82711-71010 | standard | — | |
| 82715-71120 | standard | — | |
| 90430-18008 | standard | — | |
| 90461-08365 | standard | — | |
| 91651-40825 | standard | — | |
| 82715-0K680 | standard | — | |
Replacements:82715-71120 (fitment: unknown) | |||

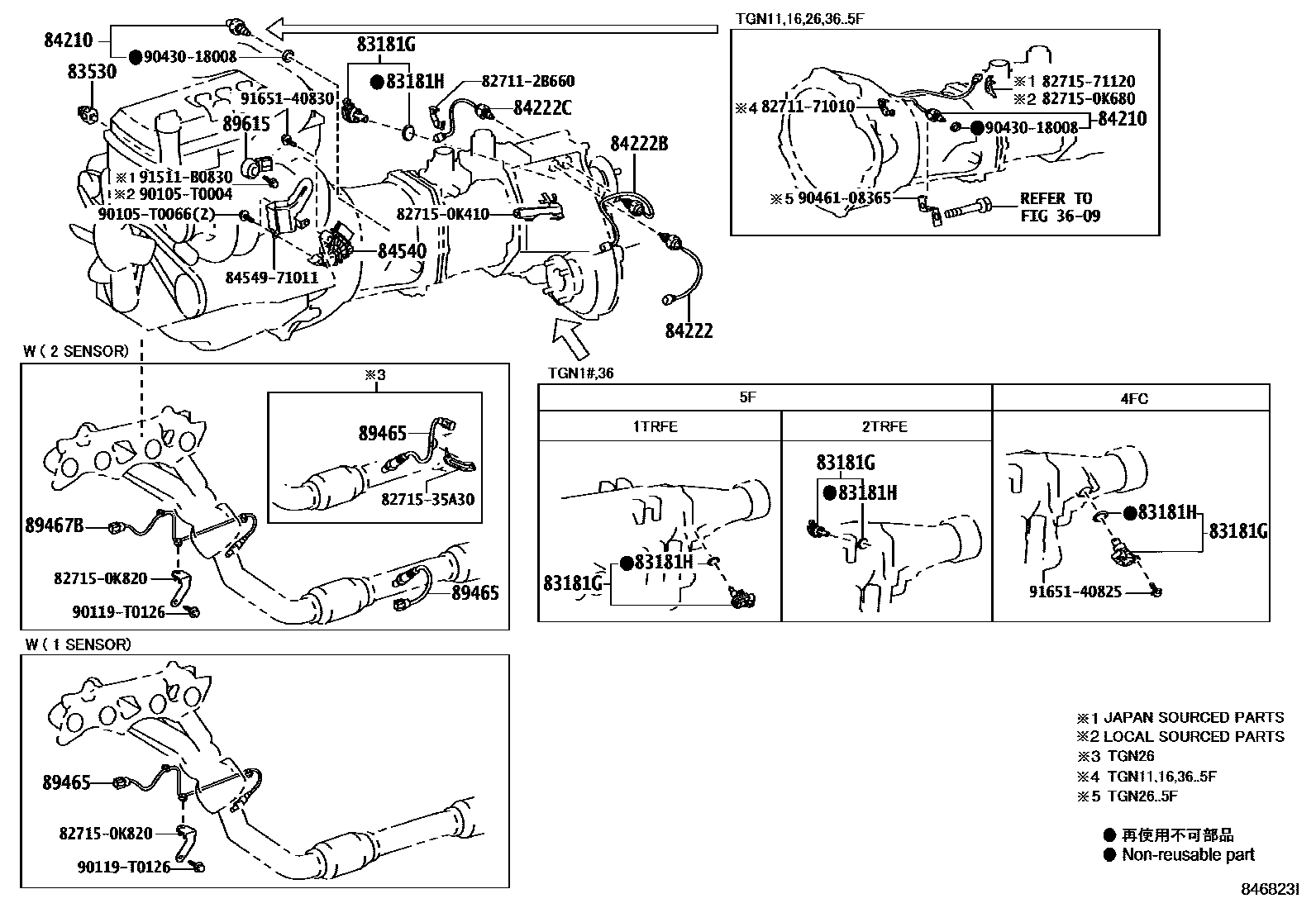

Diagram
23 parts
