Toyota COROLLA-S-AFRICA 2006 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90080-87008 | RELAY, IGNITION, NO.1 | 1 | |
Note:1ZZFE,2ZZGE,3ZZFE,4ZZFE..ZZE12# Production:2004-08 – 2007-07 Replacements:90987-02012 (fitment: unknown) Spec:P/N LABEL=9008087008 Fitment:Matches · configuration | |||
| 90080-87010 | RELAY, IGNITION, NO.1 | 1 | |
Note:1ZZFE,2ZZGE,3ZZFE,4ZZFE..ZZE12# Production:2004-08 – 2007-07 Replacements:90987-02027 (fitment: unknown) Spec:P/N LABEL=9008087010 Fitment:Matches · configuration | |||
| 90080-87027 | RELAY, IGNITION, NO.1 | 1 | |
Note:1ZZFE,2ZZGE,3ZZFE,4ZZFE..ZZE12# Production:2004-08 – 2007-07 Replacements:90987-02012 (fitment: unknown) Spec:P/N LABEL=9008087027 Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 85930 | — |
| 90987-02025 | RELAY, DEFOGGER | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| 90987-04010 | RELAY ASSY (FOR HEATER BLOWER MOTOR) | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| 28300-10020 | RELAY ASSY, STARTER | 1 | |
Note:1ZZFE,2ZZGE,3ZZFE,4ZZFE..ZZE12# Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| 90080-82020 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90982-09008 (fitment: unknown) Spec:7.5A,MINI FUSE,BROWN Fitment:Matches · configuration | |||
| 90080-82021 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90982-09009 (fitment: unknown) Spec:10A,MINI FUSE,RED,LOCAL SOURCED PARTS Fitment:Matches · configuration | |||
| 90080-82022 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90982-09010 (fitment: unknown) Spec:15A,MINI FUSE,BLUE,LOCAL SOURCED PARTS Fitment:Matches · configuration | |||
| 90080-82024 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90982-09013 (fitment: unknown) Spec:30A,MINI FUSE,GREEN,LOCAL SOURCED PARTS Fitment:Matches · configuration | |||
| 90080-82033 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90982-09012 (fitment: unknown) Spec:25A,MINI FUSE Fitment:Matches · configuration | |||
| 90982-09007 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Spec:5A,MINI FUSE,TAN Fitment:Matches · configuration | |||
| 90982-09009 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Spec:10A,MINI FUSE,RED,JAPAN SOURCED PARTS Fitment:Matches · configuration | |||
| 90982-09010 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Spec:15A,MINI FUSE,BLUE,JAPAN SOURCED PARTS Fitment:Matches · configuration | |||
| 90982-09013 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Spec:30A,MINI FUSE,GRN,JAPAN SOURCED PARTS Fitment:Matches · configuration | |||
| 81980-50030 | FLASHER ASSY, TURN SIGNAL | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 85916D | — |
| 82730-02080 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| 82672-02080 | COVER, JUNCTION BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| 82641-02120 | RELAY, INTEGRATION NO.1 | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:82641-12220 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration | |||
| 82641-12220 | RELAY, INTEGRATION NO.1 | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration | |||
| 84340-04011 | SWITCH ASSY, STOP LAMP | 1 | |
Note:ZZE12# Production:2005-06 – 2007-07 Fitment:Matches · configuration | |||
| 84550-16060 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 84727 | — |
| — | Part does not apply to this vehicle configuration. | 85431 | — |
| 82611-02020 | COVER, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| 90159-50295 | standard | — | |
Fitment:Matches · configuration | |||
| 90159-70003 | standard | — | |
Fitment:Matches · configuration | |||
| 93315-14012 | standard | — | |
Fitment:Matches · configuration | |||

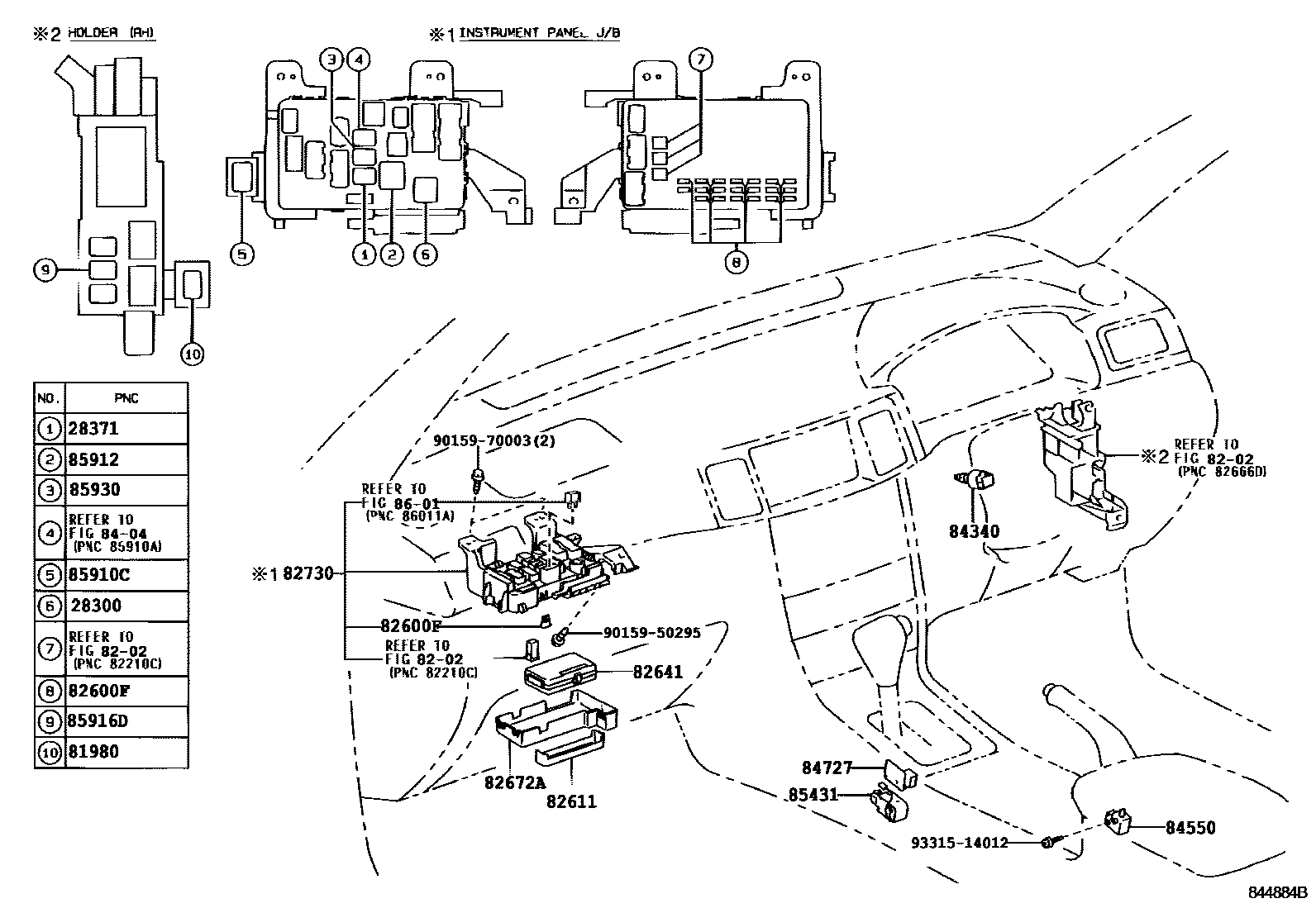

Diagram
26 parts
