Open RegionYearModelModelCode Details
General 2005 COROLLA S AMERICA ZZE121L-GEMDKG
Catalog: TOYOTA202608 Engine: 1600CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION Body Description: SEDAN Vehicle Grade: XLI TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: BRAZIL Color Code: 040 Trim Code: FB17 Production: 200205-200803 Model Short: ZZE121L-GEMDKG Region: OTHER Native Region: GR

Toyota COROLLA-S-AMERICA 2005 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84872-02070 SWITCH ASSY, OUTER MIRROR 1
Note:ZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC) Production:2004-08 – … Fitment:Matches · configuration
84660-12210 SWITCH, COOLER 1
Note:CDE120,ZZE12#..XEI,XLI Production:2004-08 – … Fitment:Matches · configuration
85515-02031 STAY, CIGARETTE LIGHTER BEZEL 1
Note:ZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC) Production:2004-08 – … Fitment:Matches · configuration
90010-03059 LAMP SUB-ASSY, INDICATOR 1
Note:CDE120,ZZE12#..XEI,XLI Production:2004-08 – … Spec:14V 1.12W Fitment:Matches · configuration
85500-02020 LIGHTER ASSY, CIGARETTE 1
Note:ZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC) Production:2004-08 – … Fitment:Matches · configuration
85510-02010 SOCKET & RETAINER ASSY, CIGARLIGHTER 1
Note:ZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC) Production:2004-08 – … Fitment:Matches · configuration
84732-02050 SWITCH ASSY, HEATER BLOWER 1
Note:CDE120,ZZE12#..XEI,XLI Production:2004-08 – … Fitment:Matches · configuration
84332-02110 SWITCH ASSY, HAZARD WARNING SIGNAL 1
Note:CDE120,ZZE12#..(XEI,XLI)..BZ Production:2004-08 – … Fitment:Matches · configuration
84656-02140 BEZEL, SWITCH 1
Note:CDE120,ZZE12#..BZ Production:2004-08 – 2008-07 Fitment:Matches · configuration
90010-01081 BULB, HAZARD WARNING SIGNAL SWITCH 1
Note:CDE120,ZZE12#..(XEI,XLI)..BZ Production:2002-05 – 2007-05 Spec:14V 1.4W Fitment:Matches · configuration
90010-01081 BULB, HAZARD WARNING SIGNAL SWITCH 1
Note:CDE120,ZZE12#..(XEI,XLI)..BZ Production:2004-08 – 2008-07 Spec:14V 1.4W Fitment:Matches · configuration
90010-01079 BULB(FOR REAR WINDOW DEFOGGER SWITCH) 1
Note:CDE120,ZZE12#..(XEI,XLI)..BZ Production:2002-05 – 2007-05 Spec:14V 0.06W Fitment:Matches · configuration
90010-01079 BULB(FOR REAR WINDOW DEFOGGER SWITCH) 1
Note:CDE120,ZZE12#..(XEI,XLI)..BZ Production:2004-08 – 2008-07 Spec:14V 0.06W Fitment:Matches · configuration
85520-02010 KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 1
Note:ZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC) Production:2004-08 – … Fitment:Matches · configuration

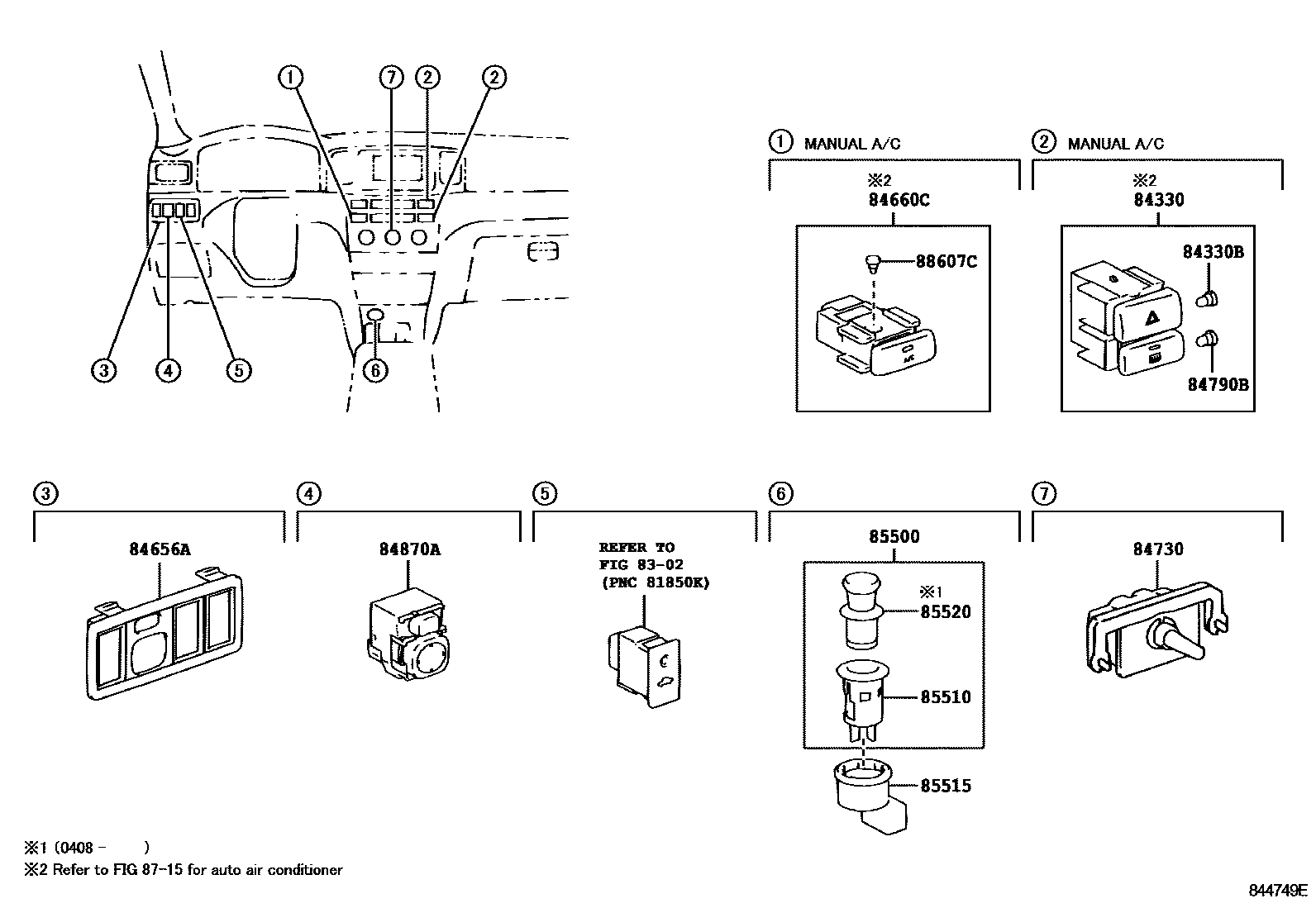

Diagram

14 parts
Toyota COROLLA-S-AMERICA 2005 — Switch & Relay & Computer
