USA / Canada 2025 HILUX DOUBLE CAB GUN136R-DNTHRN
Catalog: TOYOTA202608 Engine: 2800CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: SOUTH AFRICA Color Code: 040 Trim Code: LE21 Production: 202411-999999 Model Short: GUN136R-DNTHRN Region: NA Native Region: US

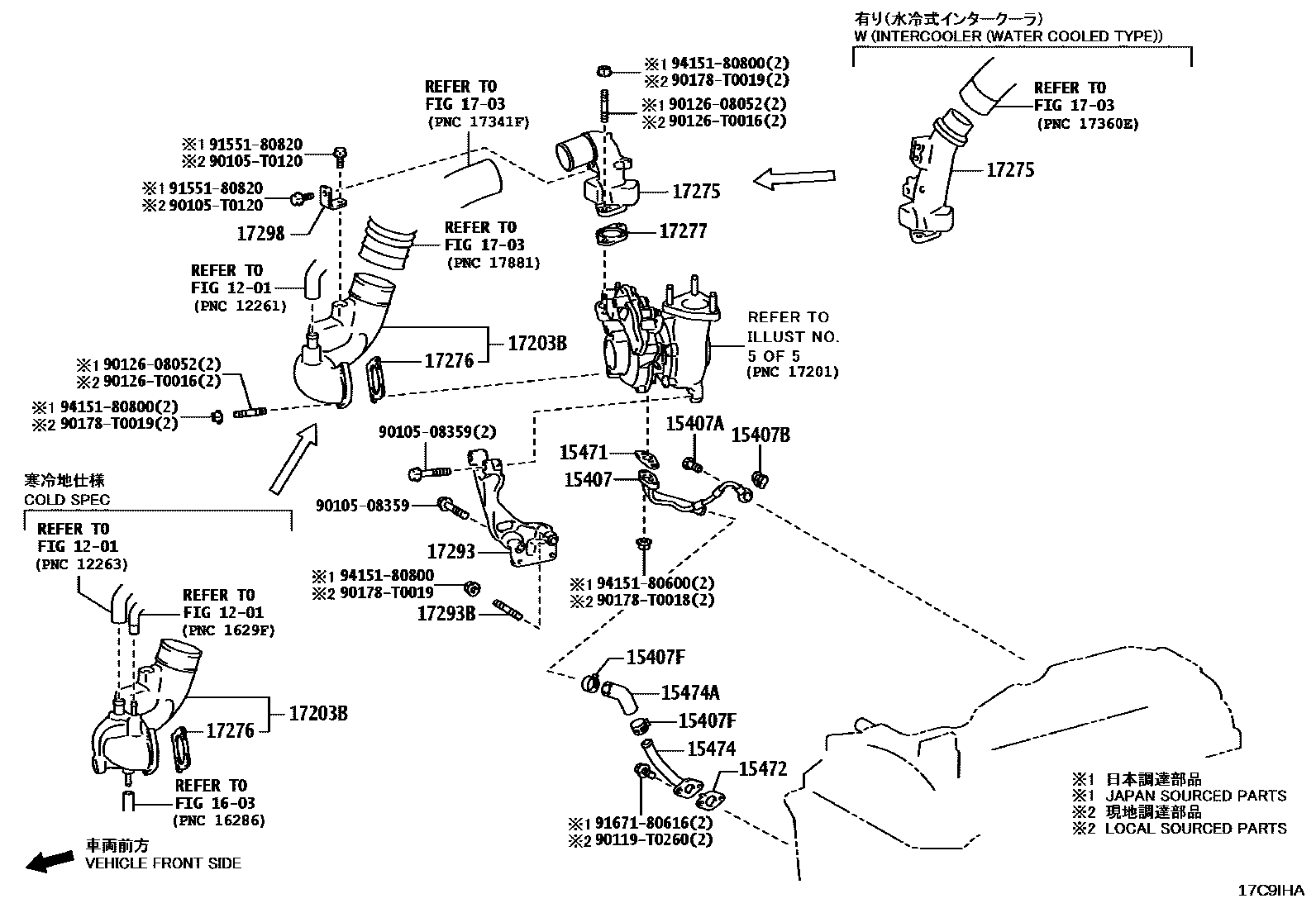

Toyota HILUX-DOUBLE-CAB 2025 — Manifold

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
15407-0E020 PIPE SUB-ASSY, TURBO OIL INLET 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..LHD..6FC..SA;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..TP..6FC..(GCC,IDN,LA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN125..RHD..6F..(H,L)..(GEN,IDN,SA);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
90430-T0006 GASKET(FOR TURBO OIL INLET PIPE) 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:90904-30004 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
96137-42501 CLAMP OR CLIP, OIL HOSE 2
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..LHD..6FC..SA;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..TP..6FC..(GCC,IDN,LA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN125..RHD..6F..(H,L)..(GEN,IDN,SA);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
90401-T0004 BOLT, UNION(FOR TURBO OIL INLET PIPE) 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..LHD..6FC..SA;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..TP..6FC..(GCC,IDN,LA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN125..RHD..6F..(H,L)..(GEN,IDN,SA);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:90401-12097 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
15472-0E010 GASKET, TURBO OIL OUTLET, NO.1 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:15472-11010 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
15474-0E010 PIPE, TURBO OIL OUTLET 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Spec:THA SOURCED PARTS Fitment:Matches · configuration
15491-0E010 HOSE, TURBO OIL OUTLET 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:15491-11010 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
15471-0E010 GASKET, TURBO OIL INLET 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:15471-11020 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
17293-0E040 STAY, TURBOCHARGER 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..LHD..6FC..SA;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..TP..6FC..(GCC,IDN,LA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN125..RHD..6F..(H,L)..(GEN,IDN,SA);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Spec:THA SOURCED PARTS Fitment:Matches · configuration
17203-0E050 ELBOW SUB-ASSY, COMPRESSOR INLET 1
Note:1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA) Production:2024-08 – 2026-04 Spec:THA SOURCED PARTS Fitment:Matches · configuration
17298-0E010 STAY, COMPRESSOR ELBOW 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:17298-11010 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
17275-0E040 ELBOW, COMPRESSOR OUTLET 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..LHD..6FC..SA;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..TP..6FC..(GCC,IDN,LA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN125..RHD..6F..(H,L)..(GEN,IDN,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA) Production:2024-08 – 2026-04 Replacements:17275-11050 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
17276-0E010 GASKET, COMPRESSOR INLET 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:17276-26010 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
17277-0E010 GASKET, COMPRESSOR OUTLET 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA) Production:2024-08 – 2026-04 Replacements:17277-11030 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
92122-80855 BOLT(FOR TURBOCHARGER STAY) 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..LHD..6FC..SA;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..TP..6FC..(GCC,IDN,LA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN125..RHD..6F..(H,L)..(GEN,IDN,SA);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
91671-80616 standard —
Fitment:Matches · configuration
90119-T0260 standard —
Replacements:91671-80616 (fitment: unknown) Fitment:Matches · configuration
91551-80820 standard —
Fitment:Matches · configuration
90105-T0120 standard —
Replacements:91551-80820 (fitment: unknown) Fitment:Matches · configuration
94151-80600 standard —
Fitment:Matches · configuration
90105-08359 standard —
Fitment:Matches · configuration
90178-T0018 standard —
Fitment:Matches · configuration
90126-08052 standard —
Fitment:Matches · configuration
90126-T0016 standard —
Replacements:90126-08052 (fitment: unknown) Fitment:Matches · configuration
94151-80800 standard —
Fitment:Matches · configuration
90178-T0019 standard —
Replacements:94151-80800 (fitment: unknown) Fitment:Matches · configuration
