Toyota HILUX-DOUBLE-CAB 2025 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83320-0K181 | GAGE ASSY, FUEL SENDER | 1 | |
Note:TGN126..GCC,LA;TGN121..6FC..ARL;TGN126..(H,L)..GEN;GUN125,TGN121,126..LHD..SP;GUN125..RHD..(GEN,IDN,KEN,MA,SA);GUN125,TGN121..LHD..(BZAG,GCC,GEN,GHA,LA,PH);GUN126,135..BZAG,GCC,GEN,GHA,IND,KEN,LA,MA,MMR,PH,PKN,SA,TWN;GGN125,GUN120,121,122,136,LAN125,TGN120,136..BZAG,GCC,GEN,LA,PH,SA,TH Production:2024-08 – … Fitment:Matches · configuration | |||
| 84040-0K012 | MASTER SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:GUN136..6FC..DCRL..SA;GUN126..RHD..H..DCRL..SA Production:2024-08 – … Spec:WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) Fitment:Matches · configuration | |||
| 84810-0K080 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:GUN126..H..DCRL..SA;GUN125..AGP..6FC..LA;GUN136..6FC..DCRL..SA;GUN126..6FC..H..DCRL..LA Production:2024-08 – … Spec:WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) Fitment:Matches · configuration | |||
| 84231-0K060 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:TGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGP,CMP,GAP,KNP,MMP,MP,SP,TP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136 Production:2024-08 – 2025-07 Fitment:Matches · configuration | |||
| 84810-0K080 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:GUN126..H..DCRL..SA;GUN125..AGP..6FC..LA;GUN136..6FC..DCRL..SA;GUN126..6FC..H..DCRL..LA Production:2024-08 – … Spec:WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON) Fitment:Matches · configuration | |||
| 86247-0K010 | BRACKET, VOLTAGE INVERTER | 1 | |
Note:GUN126..S..IND;GUN126..H..(BZAG,TWN);GUN126..RHD..6F..H..GEN;GUN136..DCRL..(BZAG,SA);GGN125,GUN126..RHD..H..(DCRL,HTWC)..(IND,PKN,SA) Production:2024-08 – … Fitment:Matches · configuration | |||
| G9221-0K010 | COVER, INVERTER, UPPER | 1 | |
Note:GUN126..S..IND;GUN126..H..(BZAG,TWN);GUN126..RHD..6F..H..GEN;GUN136..DCRL..(BZAG,SA);GGN125,GUN126..RHD..H..(DCRL,HTWC)..(IND,PKN,SA) Production:2024-08 – … Fitment:Matches · configuration | |||
| 86210-71011 | INVERTER ASSY, VOLTAGE | 1 | |
Note:GUN126..S..IND;GUN126..H..(BZAG,TWN);GUN126..RHD..6F..H..GEN;GUN136..DCRL..(BZAG,SA);GGN125,GUN126..RHD..H..(DCRL,HTWC)..(IND,PKN,SA) Production:2024-08 – … Fitment:Matches · configuration | |||
| 84872-0K030 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:GUN125..S..IDN;GUN125..6FC..(IDN,MA);GUN126..(H,S)..(KEN,MA,PKN);GGN125,GUN125,126,136..RHD..H..(GEN,SA) Production:2024-08 – … Fitment:Matches · configuration | |||
| 84231-0K060 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:TGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGP,CMP,GAP,KNP,MMP,MP,SP,TP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136 Production:2024-08 – 2025-07 Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 82660G | — |
| — | Part does not apply to this vehicle configuration. | 82661A | — |
| 90119-06915 | standard | — | |
Fitment:Matches · configuration | |||
| 90178-T0018 | standard | — | |
Fitment:Matches · configuration | |||
| 90119-T0130 | standard | — | |
Replacements:90119-06915 (fitment: unknown) Fitment:Matches · configuration | |||
| 90164-T0005 | standard | — | |
Replacements:90164-40103 (fitment: unknown) Fitment:Matches · configuration | |||
| 90164-40103 | standard | — | |
Fitment:Matches · configuration | |||
| 90119-T0422 | standard | — | |
Replacements:91673-80618 (fitment: unknown) Fitment:Matches · configuration | |||
| 90166-70001 | standard | — | |
Fitment:Matches · configuration | |||
| 90166-60004 | standard | — | |
Fitment:Matches · configuration | |||
| 90166-60005 | standard | — | |
Fitment:Matches · configuration | |||
| 90166-T0003 | standard | — | |
Replacements:90166-60005 (fitment: unknown) Fitment:Matches · configuration | |||

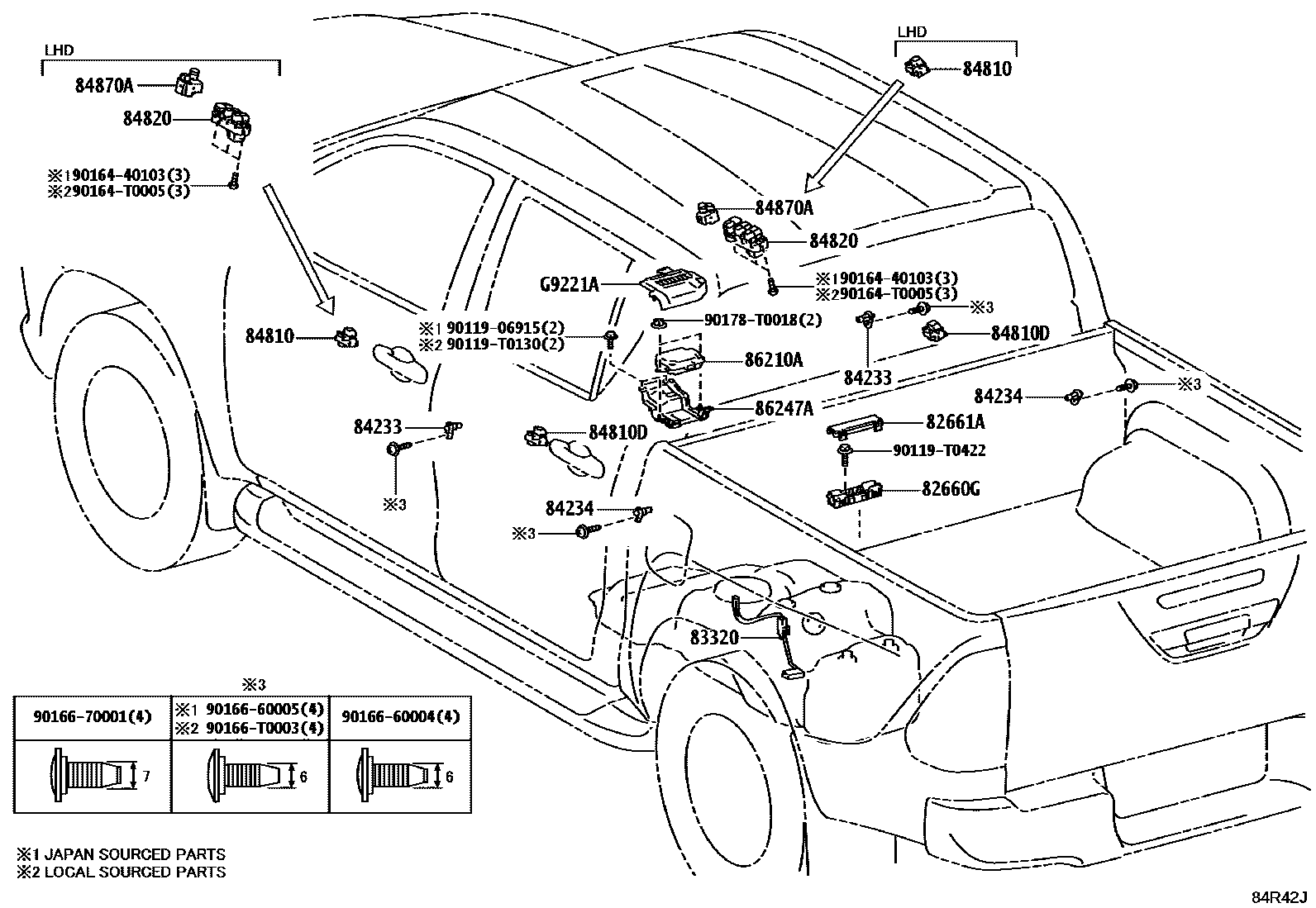

Diagram
20 parts
