Toyota Hilux 2018 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83320-0K181 | GAGE ASSY, FUEL SENDER | 1 | |
Note:TGN136..ADC,ASC,SDC,TDC;GGN125,GUN12#,13#,KUN122,LAN125,TGN120,121,126 Production:2018-09 – 2021-05 Spec:MARK 0K181 Fitment:Matches · model | |||
| 84820-0K340 | MASTER SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:GUN126,KUN126..ADC..ATM..X;TGN136..(ADC,TDC)..X..(BZAGT,LA);GUN126,KUN122..LHD..TDC..MTM..(L,X)..(GEN,LA);GUN122,125,135,KUN125,135,TGN120,121,126..LHD..(ADC,TDC)..(L,X)..(BZAGT,GCC,GEN,LA) Production:2017-08 – 2020-10 Spec:POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH Fitment:Matches · model | |||
| 84810-0D300 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:GUN126..TDC..6F..X;GUN125,TGN121..LHD..L;KUN122..LHD..TDC..L..GEN;GUN126,KUN126..ADC..ATM..X;TGN126..(L,X)..(GCC,GEN,LA);GUN122,125,KUN122..X..(BZAGT,GEN,LA);GUN112,122,135,KUN125,135,TGN11#,120,136..(L,X)..(BZAGT,GCC,LA) Production:2017-08 – 2020-10 Spec:POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH Fitment:Matches · model | |||
| 84231-0K060 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138 Production:2015-05 – 2021-05 Fitment:Matches · model | |||
| 84810-0D300 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:KUN122..LHD..TDC..L..GEN;TGN126..(ADC,TDC)..(L,X);GUN126,KUN126..ADC..ATM..X;TGN136..(ADC,TDC)..X..(BZAGT,LA);GUN122,126,TGN120..TDC..MTM..(L,X)..(GCC,LA);GUN122,KUN122,125,135..(ADC,TDC)..X..(GEN,LA);GUN125,135,TGN121..LHD..(ADC,TDC)..(L,X)..(BZAGT,GCC,GEN,LA) Production:2017-08 – 2020-10 Spec:POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH Fitment:Matches · model | |||
| — | Part does not apply to this vehicle configuration. | 86247A | — |
| — | Part does not apply to this vehicle configuration. | G9221A | — |
| — | Part does not apply to this vehicle configuration. | 86210A | — |
| 84872-0K020 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:GUN126..TDC..6F..X;GUN126,KUN126..ADC..ATM..X;GUN125,TGN121..LHD..L..GEN;TGN126..5F..(L,X)..(GEN,LA);KUN125..LHD..(ADC,TDC)..(L,X)..(GEN,LA);GUN125,135,KUN135,TGN136..(ADC,TDC)..X..LA Production:2015-05 – 2020-10 Spec:POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) Fitment:Matches · model | |||
| 84231-0K060 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:GGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC Production:2015-05 – 2021-05 Fitment:Matches · model | |||
| 90166-70001 | standard | — | |
Fitment:Matches · model | |||
| 90166-60005 | standard | — | |
Fitment:Matches · model | |||
| 90119-06915 | standard | — | |
Fitment:Matches · model | |||
| 90178-T0018 | standard | — | |
Fitment:Matches · model | |||
| 90119-T0130 | standard | — | |
Replacements:90119-06915 (fitment: unknown) Fitment:Matches · model | |||
| 90164-T0005 | standard | — | |
Replacements:90164-40103 (fitment: unknown) Fitment:Matches · model | |||

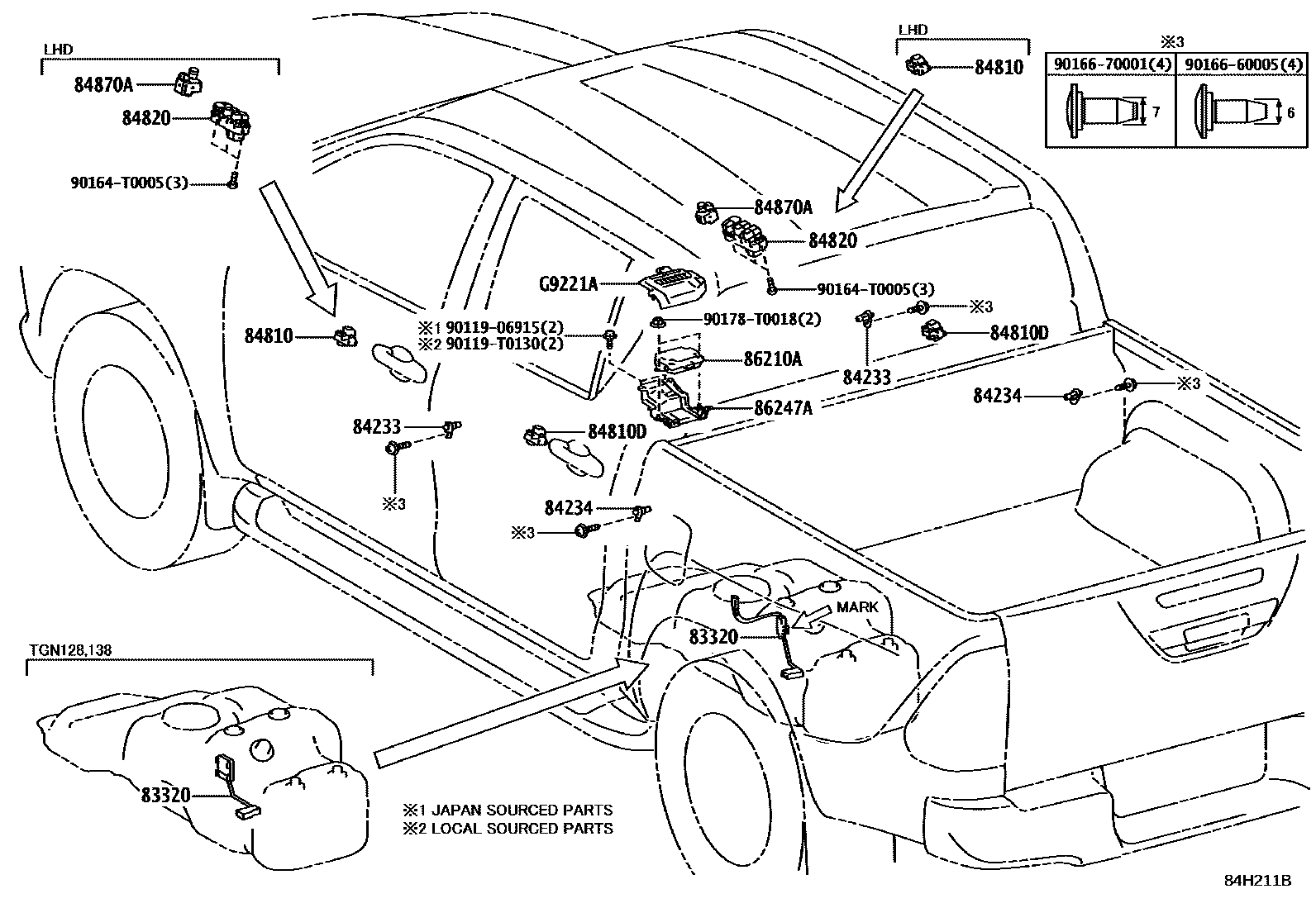

Diagram
13 parts
