Open RegionYearModelModelCode Details
General 2019 HILUX GUN125L-DGFXHF
Catalog: TOYOTA202608 Engine: 2400CC DIESEL TURBO Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: LATIN AMERICA Doors Description: ARGENTINE PRODUCED DOUBLE CAB Color Code: 3T6 Trim Code: FG20 Production: 201511-202010 Model Short: GUN125L-DGFXHF Region: OTHER Native Region: GR

Toyota Hilux 2019 — Starter

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
28150-0L200 SWITCH ASSY, MAGNET STARTER 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC Production:2015-11 – 2020-10 Spec:BOSCH Fitment:Matches · model
28113-0L200 LEVER, STARTER PINION DRIVE 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC Production:2015-11 – 2020-10 Spec:BOSCH Fitment:Matches · model
28112-0L200 BOLT, HOUSING SET 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC Production:2015-11 – 2020-10 Spec:BOSCH Fitment:Matches · model
28160-0L200 ARMATURE ASSY, STARTER 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..(ADC,ASC)..(6F,6FC) Production:2015-11 – 2020-10 Spec:BOSCH Fitment:Matches · model
28120-0L200 YOKE ASSY, STARTER 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..(ADC,ASC)..(6F,6FC) Production:2015-11 – 2020-10 Spec:BOSCH Fitment:Matches · model
28014-0L200 SHAFT SUB-ASSY, PLANET CARRIER 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC Production:2015-11 – 2020-10 Spec:BOSCH Fitment:Matches · model
28132-0L200 COVER, STARTER COMMUTATOR END FRAME 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC Production:2015-11 – 2020-10 Spec:BOSCH Fitment:Matches · model
28130-0L070 FRAME ASSY, STARTER COMMUTATOR END 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC Production:2015-11 – 2020-10 Spec:BOSCH Fitment:Matches · model
28140-0L200 HOLDER ASSY, STARTER BRUSH 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..(ADC,ASC)..(6F,6FC) Production:2015-11 – 2020-10 Spec:BOSCH Fitment:Matches · model
28011-0L200 CLUTCH SUB-ASSY, STARTER 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC Production:2015-11 – 2020-10 Spec:BOSCH Fitment:Matches · model
28100-0L200 STARTER ASSY 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..(ADC,ASC)..(6F,6FC) Production:2015-11 – 2020-10 Replacements:28100-0L201 (fitment: unknown) Spec:12V 1.9KW,BOSCH Fitment:Matches · model
28213-0L200 PINION, STARTER CLUTCH 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC Production:2015-11 – 2020-10 Spec:BOSCH Fitment:Matches · model
28226-0L200 STARTER KIT, REPAIR SERVICE 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC Production:2015-11 – 2020-10 Spec:BOSCH Fitment:Matches · model
28110-0L200 HOUSING ASSY, STARTER DRIVE 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC Production:2015-11 – 2020-10 Spec:BOSCH Fitment:Matches · model
90069-46049 standard —
Fitment:Matches · model
90105-T0082 standard —
Fitment:Matches · model
90105-T0081 standard —
Replacements:90105-12053 (fitment: unknown) Fitment:Matches · model
90178-T0022 standard —
Fitment:Matches · model
90069-31009 standard —
Fitment:Matches · model
90179-08204 standard —
Fitment:Matches · model
90182-T0011 standard —
Replacements:90179-08204 (fitment: unknown) Fitment:Matches · model

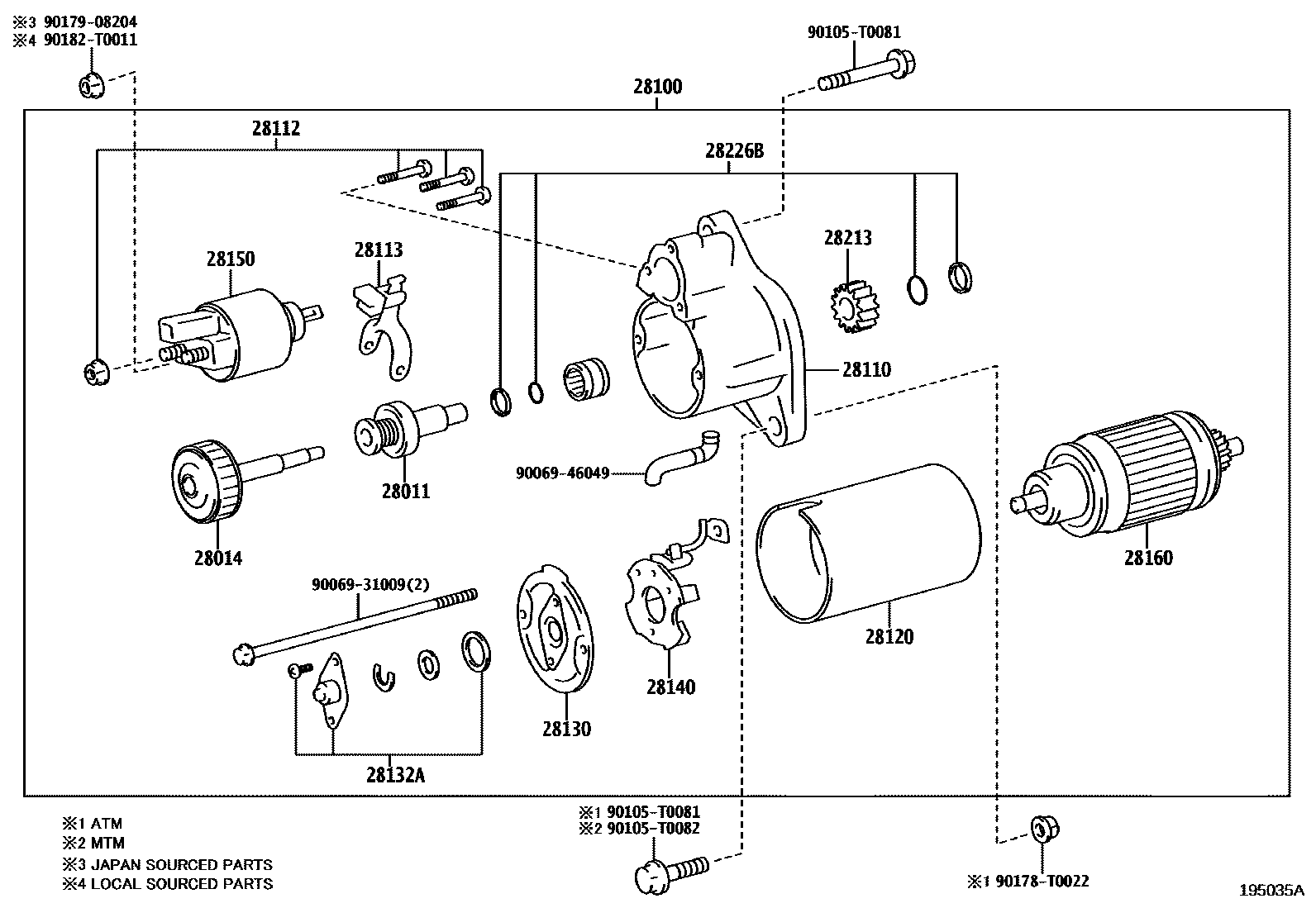

Diagram

21 parts
Toyota Hilux 2019 — Starter
