Open RegionYearModelModelCode Details
USA / Canada 2023 HILUX DOUBLE CAB GUN125L-DGFLXF
Catalog: TOYOTA202608 Engine: 2400CC DIESEL TURBO Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: LATIN AMERICA(EXCEPT ANCOM) Color Code: 3T6 Trim Code: FC20 Production: 202211-202310 Model Short: GUN125L-DGFLXF Region: NA Native Region: US

Toyota HILUX-DOUBLE-CAB 2023 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
82610-0K010 BLOCK ASSY, FUSE 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
82660-0K161 BLOCK ASSY, RELAY 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
82660-0K100 BLOCK ASSY, RELAY 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
82663-0K100 COVER, RELAY BLOCK LOWER, NO.4 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
82610-0K010 BLOCK ASSY, FUSE 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
82611-0K070 COVER, FUSE BLOCK 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
82660-0K080 BLOCK ASSY, RELAY 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
82663-0K080 COVER, RELAY BLOCK, LOWER, NO.3 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
82660-0K060 BLOCK ASSY, RELAY 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
82663-0K060 COVER, RELAY BLOCK, LOWER, NO.2 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
90982-09019 FUSE, FUSE BLOCK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,136 Production:2022-08 – … Spec:5A,MINI FUSE,TAN
90982-09020 FUSE, FUSE BLOCK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,136 Production:2022-08 – … Spec:7.5A,MINI FUSE,BROWN
90982-09021 FUSE, FUSE BLOCK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,136 Production:2022-08 – … Spec:10A,MINI FUSE,RED
90982-09022 FUSE, FUSE BLOCK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,136 Production:2022-08 – … Spec:15A,MINI FUSE,BLUE
90982-09023 FUSE, FUSE BLOCK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,136 Production:2022-08 – … Spec:20A,MINI FUSE,YELLOW
90982-09024 FUSE, FUSE BLOCK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,136 Production:2022-08 – … Spec:25A,MINI FUSE
90982-09025 FUSE, FUSE BLOCK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,136 Production:2022-08 – … Spec:30A,MINI FUSE,GRN
90982-09019 INSTRUMENT PANEL FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,136 Production:2022-08 – … Spec:5A,MINI FUSE,TAN
90982-09020 INSTRUMENT PANEL FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,136 Production:2022-08 – … Spec:7.5A,MINI FUSE,BROWN
90982-09021 INSTRUMENT PANEL FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,136 Production:2022-08 – … Spec:10A,MINI FUSE,RED
90982-09022 INSTRUMENT PANEL FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,136 Production:2022-08 – … Spec:15A,MINI FUSE,BLUE
90982-09023 INSTRUMENT PANEL FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,136 Production:2022-08 – … Spec:20A,MINI FUSE,YELLOW
90982-09024 INSTRUMENT PANEL FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,136 Production:2022-08 – … Spec:25A,MINI FUSE
90982-09025 INSTRUMENT PANEL FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,136 Production:2022-08 – … Spec:30A,MINI FUSE,GRN
90987-02028 RELAY, MAGNET-CLUTCH 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10
— Part does not apply to this vehicle configuration. 86530A —
— Part does not apply to this vehicle configuration. 85916D —
90987-02027 RELAY, TAILLAMP 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Spec:(J) Spec Note:(Japan made)
90987-T2001 RELAY, TAILLAMP 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, LAMP CUT 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Spec:(J) Spec Note:(Japan made)
90987-T2001 RELAY, LAMP CUT 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
— Part does not apply to this vehicle configuration. 28371 —
— Part does not apply to this vehicle configuration. 87346K —
— Part does not apply to this vehicle configuration. 87346L —
— Part does not apply to this vehicle configuration. 87120F —
— Part does not apply to this vehicle configuration. 84930F —
— Part does not apply to this vehicle configuration. 84930G —
90987-02027 RELAY, DCU MAIN 1
Note:GUN126..AGTP..H..LA;GUN125,135..AGTP..LA;GUN126..AGTP..6F..S..LA Production:2022-08 – 2023-10 Spec:EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J) Spec Note:EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(Japan made)
90987-T2001 RELAY, DCU MAIN 1
Note:GUN126..AGTP..H..LA;GUN125,135..AGTP..LA;GUN126..AGTP..6F..S..LA Production:2022-08 – 2023-10 Replacements:90987-02027 (fitment: unknown) Spec:EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(L) Spec Note:EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(Local made)
90987-T2001 RELAY, POWER OUTLET SOCKET 1
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 Replacements:90987-02027 (fitment: unknown)
90987-T2003 RELAY, HEATER 1
Note:TGN136..BZAG;GUN126..AGTP..6F..H..LA;GUN125,126,135,TGN126..AGTP..(L,S) Production:2022-08 – 2023-10 Replacements:90987-04010 (fitment: unknown)
90987-02025 RELAY, IGNITION, NO.2 1
Note:2TRFE..TGN136..LA;1G#,2GDFTV,2TRFE..GGN125,GUN125,126,13#,TGN126..AGTP Production:2022-08 – 2023-10 Spec:(J) Spec Note:(Japan made)
90987-T2002 RELAY, IGNITION, NO.2 1
Note:2TRFE..TGN136..LA;1G#,2GDFTV,2TRFE..GGN125,GUN125,126,13#,TGN126..AGTP Production:2022-08 – 2023-10 Replacements:90987-02025 (fitment: unknown) Spec:(L) Spec Note:(Local made)
— Part does not apply to this vehicle configuration. 85913F —
— Part does not apply to this vehicle configuration. 82642A —
90987-02027 RELAY, NITROGEN OXIDES 1
Note:GUN125..AGTP..LA Production:2022-08 – 2023-10 Spec:EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J) Spec Note:EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(Japan made)
90987-T2001 RELAY, NITROGEN OXIDES 1
Note:GUN125..AGTP..LA Production:2022-08 – 2023-10 Replacements:90987-02027 (fitment: unknown) Spec:EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(L) Spec Note:EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(Local made)
— Part does not apply to this vehicle configuration. 85916L —
— Part does not apply to this vehicle configuration. 86220A —
90080-87009 RELAY, DEFOGGER 1
Note:TGN126..L..LA;GUN125..6F..L..GEN;GUN122..L..(SA,TH);GUN125..LHD..H..GEN;GUN122..LHD..L..GEN;GUN125..ARL,BZAG,LA,VN;GUN125..LHD..(H,L)..SA;GUN126..LHD..6FC..S..GEN;GUN126..S..(ARL,BZAG,LA);GUN122,126..MTM..S..(GEN,TH);GUN125..RHD..(H,S)..(GEN,MA,TH);GUN135,TGN121..L..(ARL,BZAG,GEN,LA,SA,VN);GUN135,TGN126..(H,S)..(BZAG,GEN,LA,PH,TH,VN);GGN125,GUN120,121,136,TGN136..ARL,BZAG,GEN,LA,TH;GUN126..(H,L)..(ARL,BZAG,GEN,LA,MA,MMR,PH,TH,TWN,VN) Production:2022-08 – 2024-01 Replacements:90987-04004 (fitment: unknown)
— Part does not apply to this vehicle configuration. 84794A —
90119-T0313 standard —
Replacements:91673-80620 (fitment: unknown)
82715-0KD50 standard —
90178-T0007 standard —
Replacements:90179-06216 (fitment: unknown)
90159-70004 standard —
90159-T0037 standard —
Replacements:90159-60613 (fitment: unknown)

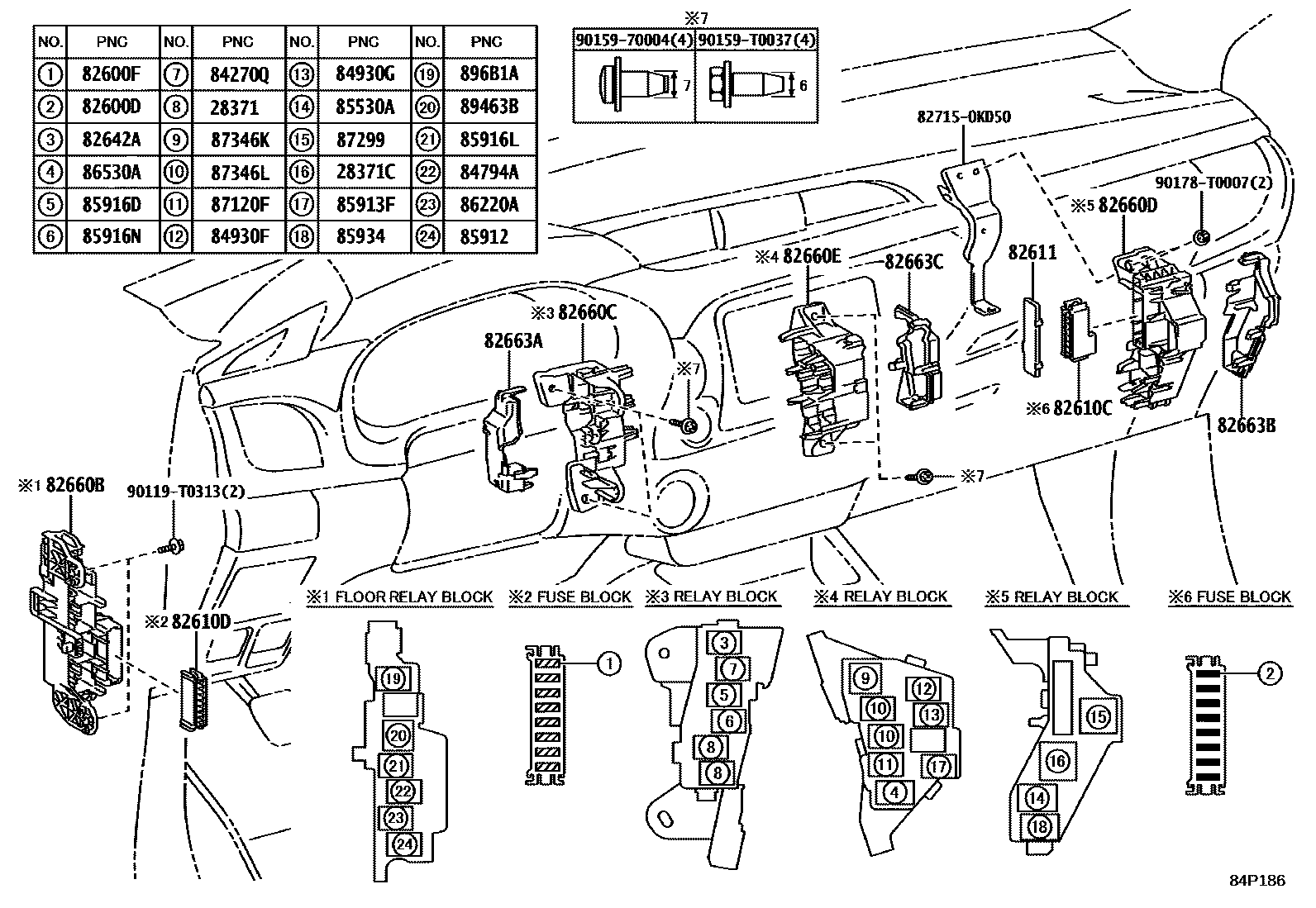

Diagram
