Toyota COROLLA-SED-NAP 2019 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83950-02490 | LAMP ASSY, TELLTALE | 1 | |
Note:MZEA12,ZRE212 Production:2019-03 – 2020-07 | |||
| 85535-02200 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:MZEA12,ZRE212 Production:2019-03 – 2020-07 | |||
| 85530-06030 | SOCKET ASSY, POWER OUTLET, NO.3 | 1 | |
Note:MZEA12,ZRE212 Production:2019-03 – 2020-07 Replacements:85530-42010 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 84255 | — |
| — | Part does not apply to this vehicle configuration. | 84794 | — |
| — | Part does not apply to this vehicle configuration. | 84751F | — |
| 84970-02340 | SWITCH ASSY, COMBINATION | 1 | |
Note:ZRE212..D,L Production:2019-03 – 2020-07 | |||
| 84390-02010 | SWITCH ASSY, ELECTRIC PARKING BRAKE | 1 | |
Note:ZRE212..CVT..(D,L) Production:2019-03 – 2020-07 Spec:PARKING BRAKE-ELECTRIC PARKING BRAKE | |||
| 84332-02390 | SWITCH ASSY, HAZARD WARNING SIGNAL | 1 | |
Note:MZEA12,ZRE212 Production:2019-03 – 2020-07 | |||
| — | Part does not apply to this vehicle configuration. | 84751G | — |
| 84119-0R020 | RHEOSTAT, LIGHT CONTROL | 1 | |
Note:MZEA12,ZRE212 Production:2019-03 – 2020-07 | |||
| 84153-0R010 | SWITCH, AUTO HIGH BEAM | 1 | |
Note:MZEA12,ZRE212 Production:2019-03 – 2020-07 Replacements:84153-33040 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 89611 | — |
| 85532-12020 | SOCKET, USB CHARGER | 1 | |
Note:MZEA12,ZRE212..L,S,X,Y Production:2019-03 – 2020-07 | |||
| 90080-15073 | standard | — | |
Replacements:90159-50327 (fitment: unknown) | |||

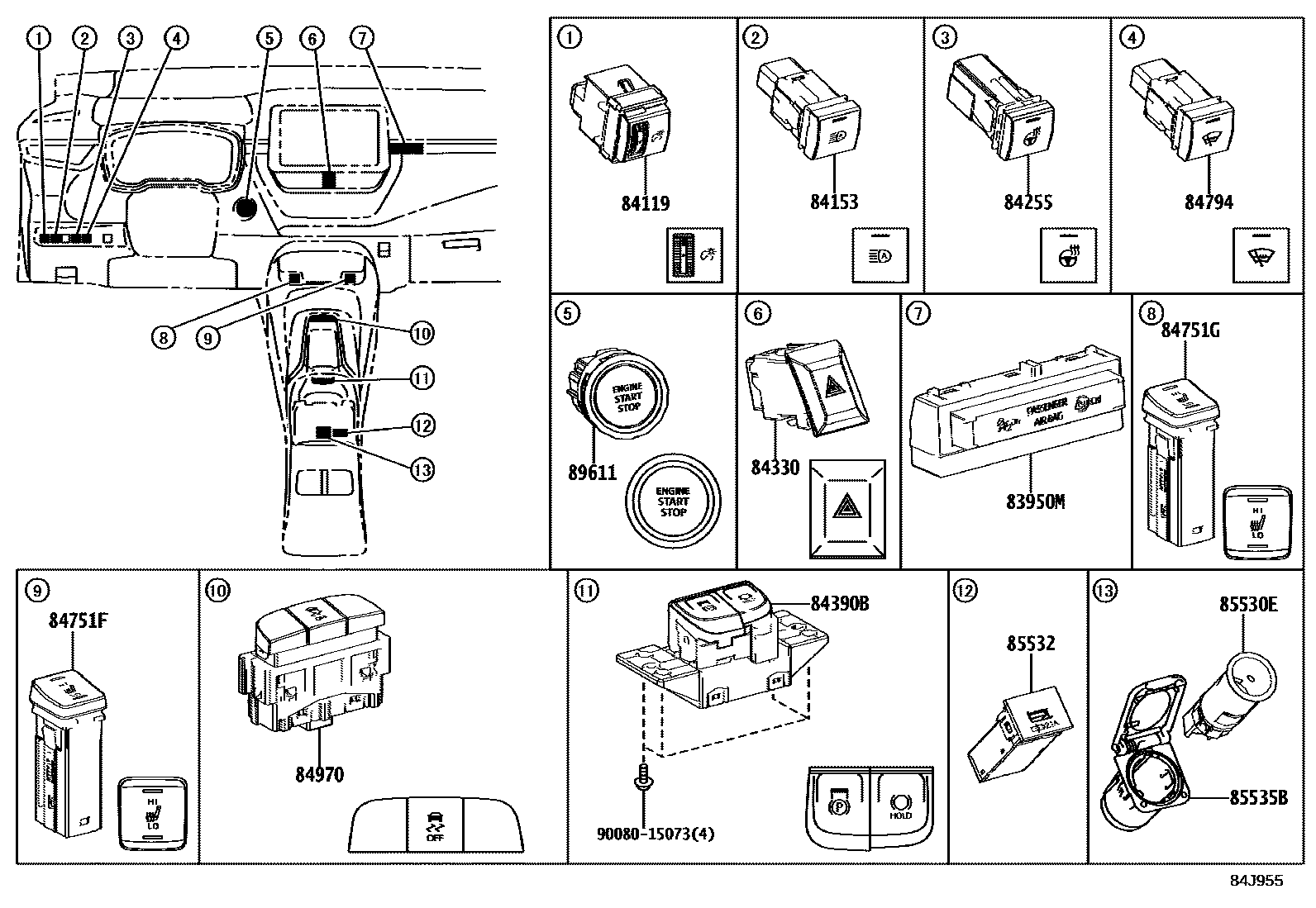

Diagram
10 parts
