Toyota Camry-Hybrid 2013 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 89681A | — |
| 90080-87026 | RELAY, LAMP CUT | 1 | |
Note:ASV50,AVV50,GSV50 Production:2011-12 – 2014-09 Replacements:90987-02027 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 82877 | — |
| 84345-08010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:ASV50,AVV50,GSV50 Production:2011-09 – 2014-09 Replacements:84345-51010 (fitment: unknown) | |||
| 84340-09070 | SWITCH ASSY, STOP LAMP | 1 | |
Note:ASV50,AVV50,GSV50 Production:2011-09 – 2014-09 Replacements:84340-09310 (fitment: unknown) | |||
| 89121-52010 | SENSOR, AUTOMATIC LIGHT CONTROL | 1 | |
Note:ASV50,GSV50..LE,SE Production:2011-09 – 2014-09 | |||
| 89220-06021 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:GSV50..SE;ASV50,AVV50..LE,SE,XLE Production:2012-12 – 2014-09 | |||
| 82715-06F90 | BRACKET,WIRING HARNESS CLAMP | 1 | |
Note:ASV50,AVV50,GSV50 Production:2011-09 – 2014-09 Replacements:82715-33F20 (fitment: unknown) Spec:INSTRUMENT PANEL | |||
| — | Part does not apply to this vehicle configuration. | 89111 | — |
| 84550-0E010 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:ASV50,AVV50,GSV50 Production:2011-09 – 2014-09 Replacements:84550-47010 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 89960 | — |
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:ASV50,AVV50,GSV50 Production:2011-11 – 2014-09 Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:ASV50,AVV50,GSV50 Production:2011-11 – 2014-09 Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:ASV50,AVV50,GSV50 Production:2011-11 – 2014-09 Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:ASV50,AVV50,GSV50 Production:2011-11 – 2014-09 Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:ASV50,AVV50,GSV50 Production:2011-11 – 2014-09 Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | INSTRUMENT PANEL FUSE | 1 | |
Note:ASV50,AVV50,GSV50 Production:2011-11 – 2014-09 Spec:25A,MINI FUSE | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:ASV50,AVV50,GSV50 Production:2011-11 – 2014-09 Spec:30A,FEMALE,PNK,32V | |||
| 82672-06242 | COVER, JUNCTION BLOCK | 1 | |
Note:ASV50,AVV50,GSV50 Production:2011-11 – 2014-09 | |||
| 82730-06752 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:ASV50,AVV50,GSV50 Production:2011-11 – 2014-09 | |||
| 90178-A0014 | standard | — | |
Replacements:90179-06115 (fitment: unknown) | |||
| 90119-06448 | standard | — | |
| 90080-15082 | standard | — | |
| 90080-17244 | standard | — | |
| 90080-18062 | standard | — | |
Replacements:90179-06323 (fitment: unknown) | |||
| 90080-11699 | standard | — | |
Replacements:91673-80616 (fitment: unknown) | |||
| 90119-A0160 | standard | — | |
Replacements:91671-80616 (fitment: unknown) | |||

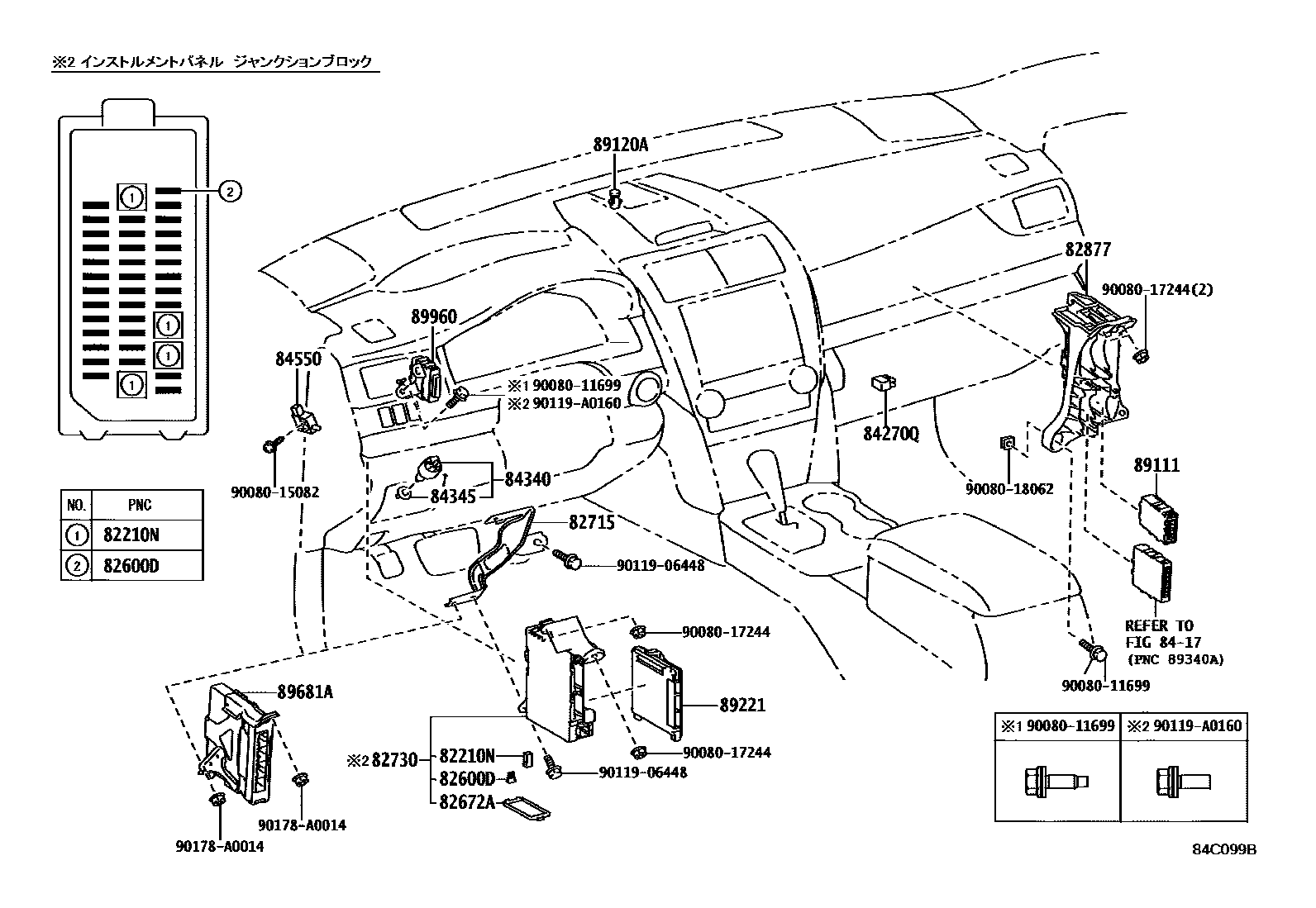

Diagram
23 parts
