Toyota RAV4-NAP 2019 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89422-33040 | SENSOR, WATER TEMPERATURE | 1 | |
Note:AXAA5#,AXAH54,AXAL54 Production:2018-12 – 2020-09 | |||
| 84540-06020 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:AXAA5# Production:2018-12 – 2020-09 Replacements:84540-33020 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 84540-33020 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:AXAA5# Production:2018-12 – 2020-09 Replacements:84540-33021 (fitment: unknown) Replacements:35572-48051 (fitment: unknown) Spec:(J) Spec Note:(Japan made) | |||
| — | Part does not apply to this vehicle configuration. | 89422N | — |
| 89467-0R100 | SENSOR, AIR FUEL RATIO, NO.2 | 1 | |
Note:AXAA5#,AXAH54,AXAL54 Production:2018-12 – 2020-09 | |||
| — | Part does not apply to this vehicle configuration. | 84546 | — |
| 89467-06250 | SENSOR, AIR FUEL RATIO | 1 | |
Note:AXAA5#,AXAH54,AXAL54 Production:2018-12 – 2020-09 | |||
| 89491-33051 | SENSOR, ENGINE OIL LEVEL | 1 | |
Note:AXAA5#,AXAH54,AXAL54 Production:2018-12 – 2020-09 Replacements:89491-33052 (fitment: unknown) | |||
| 89615-06010 | SENSOR, KNOCK CONTROL | 1 | |
Note:AXAA5#,AXAH54,AXAL54 Production:2018-12 – 2020-09 Replacements:89615-20090 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 89615-20090 | SENSOR, KNOCK CONTROL | 1 | |
Note:AXAA5#,AXAH54,AXAL54 Production:2018-12 – 2020-09 Spec:(J) Spec Note:(Japan made) | |||
| 90468-14044 | standard | — | |
| 90468-15007 | standard | — | |
| 82715-33K11 | standard | — | |
| 82715-42K60 | standard | — | |
| 82715-42K70 | standard | — | |
| 90119-A0160 | standard | — | |
Replacements:91671-80616 (fitment: unknown) | |||
| 91653-40625 | standard | — | |
| 90080-11683 | standard | — | |
Replacements:91651-40625 (fitment: unknown) | |||
| 91551-80835 | standard | — | |
| 90105-A0120 | standard | — | |
Replacements:91551-80835 (fitment: unknown) | |||
| 90119-06A23 | standard | — | |
| 90119-A0476 | standard | — | |
Replacements:90119-06A23 (fitment: unknown) | |||

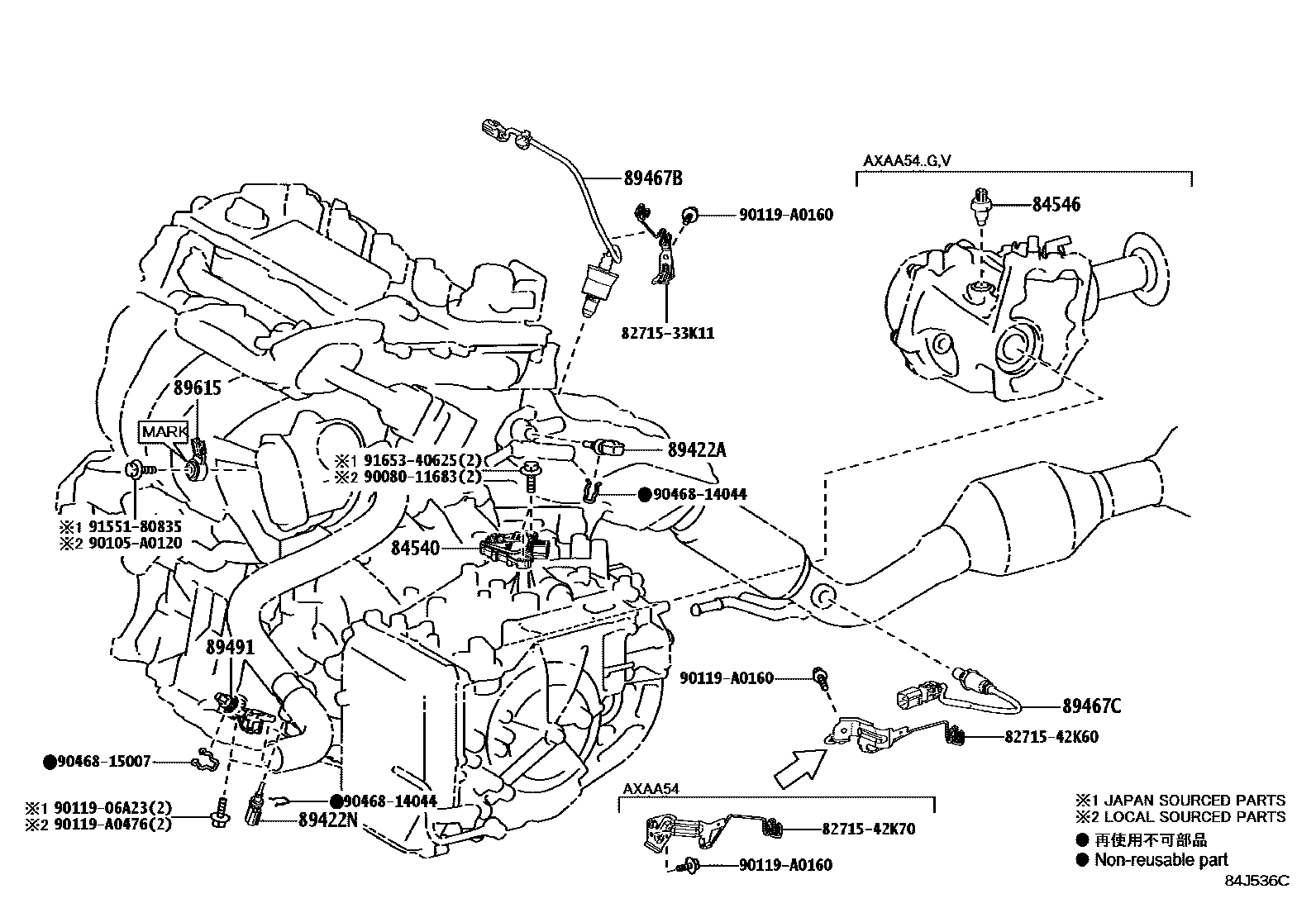

Diagram
20 parts
