Europe 2010 LEGACY BR9BKK9
Catalog: SUBARU202110 Model: BR9BKK9 Model Position: 203 Exterior Color: D6H Interior Color: J20 Destination: KA Option Code: CM Body Production Date: 20101112 Engine Production Date: 20101110 Transmission Production Date: 20101111 Source Scope: L:2:1 Region: EU Native Region: L

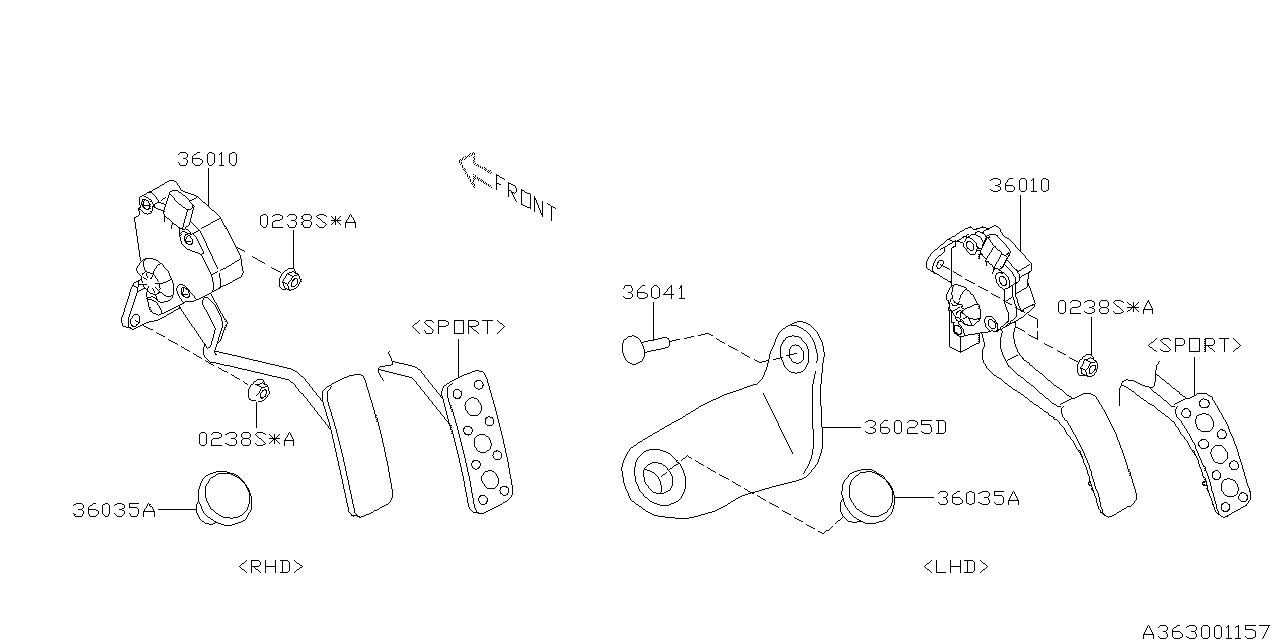

Subaru Legacy 2010 — Pedal System

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
36010AG110 PEDAL ASSEMBLY-ACCELERATOR 1
Production:2010-05 – 2011-09 Replacements:36010AG111 (fitment: unknown) Applicable Models:6MT.(204+253).RH +20D.6MT.RH +CVT.204.RH +25I.CVT.RH +5AT.36D.RH Model Year:B Replacement Condition:2 Replacement Condition Meaning:ITCA part is available Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:204: 2000CC EMPI DOHC NA & LPG Applicable Model Code Meanings:253: 2500CC EMPI SOHC NA Applicable Model Code Meanings:RH: RHD Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Applicable Model Code Meanings:36D: 3600CC EMPI DOHC NA & LPG Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
36012AJ010 PEDAL ASSEMBLY-BRAKE 36012 1
Production:2010-05 – 2011-09 Applicable Models:CVT.204.RH +25I.CVT.253.RH +5AT.36D.RH Model Year:B Source Soubetsu Rank:0 Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:204: 2000CC EMPI DOHC NA & LPG Applicable Model Code Meanings:RH: RHD Applicable Model Code Meanings:253: 2500CC EMPI SOHC NA Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Applicable Model Code Meanings:36D: 3600CC EMPI DOHC NA & LPG Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
36041AG020 STOPPER-PEDAL,A 36035 3
Production:2010-05 – 2011-09 Applicable Models:6MT.RH +6MT.20Z +CVT +5AT Model Year:B Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:RH: RHD Applicable Model Code Meanings:20Z: 2000CC DOHC TURBO DIESEL Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
36041AA000 SPACER-PEDAL 36040 2
Production:2010-05 – 2011-09 Applicable Models:6MT.RH +6MT.20Z +CVT +5AT Model Year:B Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:RH: RHD Applicable Model Code Meanings:20Z: 2000CC DOHC TURBO DIESEL Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
36048AJ010 PLUG-CLUTCH CABLE 36048 1
Production:2010-05 – 2011-09 Applicable Models:CVT.RH +5AT.RH Model Year:B Source Soubetsu Rank:0 Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:RH: RHD Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
36053AC000 BOLT-PEDAL 36087 2
Production:2010-05 – 2011-09 Applicable Models:6MT.RH +6MT.20Z +CVT +5AT Model Year:B Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:RH: RHD Applicable Model Code Meanings:20Z: 2000CC DOHC TURBO DIESEL Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
83370AA001 SWITCH-STOP LAMP 83311 1
Production:2010-05 – 2011-09 Applicable Models:6MT +CVT +5AT Model Year:B Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
736013000 BUSHING-PEDAL,A 36022A 4
Production:2010-05 – 2011-09 Applicable Models:6MT.RH +6MT.20Z +CVT +5AT Model Year:B Illustration:B Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:RH: RHD Applicable Model Code Meanings:20Z: 2000CC DOHC TURBO DIESEL Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
36015GA121 PAD-BRAKE PEDAL,AT 36023B 1
Production:2010-05 – 2011-09 Applicable Models:CVT.204 +25I.CVT.253 +25GT.5AT +5AT.36D Model Year:B Source Soubetsu Rank:0 Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:204: 2000CC EMPI DOHC NA & LPG Applicable Model Code Meanings:253: 2500CC EMPI SOHC NA Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Applicable Model Code Meanings:36D: 3600CC EMPI DOHC NA & LPG Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
36036AC001 STOPPER-PEDAL,B 1
Production:2010-05 – 2011-09 Applicable Models:6MT +CVT +5AT Model Year:B Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
010008250 FLANGE BOLT-PILOT 0100S 3
Production:2010-05 – 2011-09 Applicable Models:6MT +CVT +5AT Model Year:B Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
021710000 NUT 0217S 1
Production:2010-05 – 2011-09 Replacements:021810000 (fitment: unknown) Applicable Models:6MT +CVT +5AT Model Year:B Replacement Condition:2 Replacement Condition Meaning:ITCA part is available Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
022710000 NUT 0227S 3
Production:2010-05 – 2011-09 Replacements:022810000 (fitment: unknown) Applicable Models:6MT +CVT +5AT Model Year:B Replacement Condition:2 Replacement Condition Meaning:ITCA part is available Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
023808000 FLANGE NUT 0238S 8
Production:2010-05 – 2011-09 Applicable Models:6MT +CVT +5AT Model Year:B Illustration:A Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
023810000 FLANGE NUT 0238S 2
Production:2010-05 – 2011-09 Replacements:023810006 (fitment: unknown) Applicable Models:6MT +CVT +5AT Model Year:B Illustration:B Replacement Condition:2 Replacement Condition Meaning:ITCA part is available Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
031306001 CLIP 0313S 1
Production:2010-05 – 2011-09 Applicable Models:6MT +CVT +5AT Model Year:B Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
051108001 SNAP PIN 0511S 1
Production:2010-05 – 2011-09 Applicable Models:6MT +CVT +5AT Model Year:B Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
051503000 CLIP 0515S 1
Production:2010-05 – 2011-09 Applicable Models:6MT +CVT +5AT Model Year:B Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
905200018 CLEVIS PIN R200018 1
Production:2010-05 – 2011-09 Applicable Models:6MT +CVT +5AT Model Year:B Source Soubetsu Rank:0 Applicable Model Code Meanings:6MT: 6SP MANUAL TRANSMISSION Applicable Model Code Meanings:CVT: CONTINUOUS VARIABLE GEAR Applicable Model Code Meanings:5AT: 5SP-AUTOMATICTRANSMISSION Model Year Meaning:'11MY; Catalog period: 2010-05-01 – 2011-09-30
— Part does not apply to this vehicle configuration. 36025D —
— Part does not apply to this vehicle configuration. 0238S*A —
— Part does not apply to this vehicle configuration. 36041 —
