Open RegionYearModelModelCode Details
General 2019 L200 TRITON STRADA G EXP MMTH KL1T
Catalog: MMC202408 Color Code: U25B Frame Mask: KJ-L# Model Short: KL1T Modification: 2400DIESEL(4N15)/4WD - H-LINE(W-CAB),5FA/T RHD Options: T12: A/T SHIFT CONTROL CHANGE; SUPER SELECT 4WD; SIZE-UP TIRE (2); BRAKE PAD CHANGE; FUEL LINE COOLER; 4 SPOKE STEERING WHEEL; STEERING AUDIO SWITCH; AUDIO SYSTEM (6); POWER + HEATER + LEATHER SEAT; EMERGENCY TRIANGLE PROVISION; ELECTRONIC CHROMIC ROOM MIRROR; WOOD PRINT PANEL; SHIFT KNOB (LEATHER); FIRST-AID KIT PROVISION; PRIVACY GLASS; BUMPER CHANGE; SIDE STEP (C); DOOR MIRROR (CONVEX); BATTERY CAPACITY-UP - 2; REAR WATCH CAMERA SYSTEM; DISCHARGE HEADLAMP (C); TEL COMMUNICATION SYSTEM (B); ONE TOUCH START SYSTEM; HEADLAMP WASHER (JET TYPE); REFRIGERANT R1234YF; DUAL A/C; RR HEATER + H/DUTY HEATER; FIRST-AID KIT PROVISION + EMERG TRIANGLE PROVISION; BUMPER CHANGE + REINF CROSS MEMBER; BUMPER CHANGE + REINF CROSS MEMBER; ONE TOUCH START SYSTEM + AUTO A/C, DUAL A/C; HEADLAMP WASHER (JET TYPE) + ONE TOUCH START SYS; SUPER SELECT 4WD + WOOD PRINT PANEL; AUDIO SYSTEM (6)+ONE TOUCH START SYSTEM; STRG AUDIO SW+TEL COMMUNICATION SYS+4 SPOKE S/WHL; 4 SPOKE STEERING WHEEL+HEADLAMP WASHER (JET TYPE); DUAL A/C+REFRIGERANT R1234YF; DUAL A/C+REFRIGERANT R1234YF; DUAL A/C+REFRIGERANT R1234YF; DUAL A/C+REFRIGERANT R1234YF; DUAL A/C+REFRIGERANT R1234YF; REINF CROSS MEMBER; ENGLAND SPEC; MUST INSTALL REFRI R1234YF; MUST INSTALL SIDE STEP Production: 201501-201905 Production Date: 201902 Trim Code: 04W Year: 2019 Region: OTHER Native Region: M80

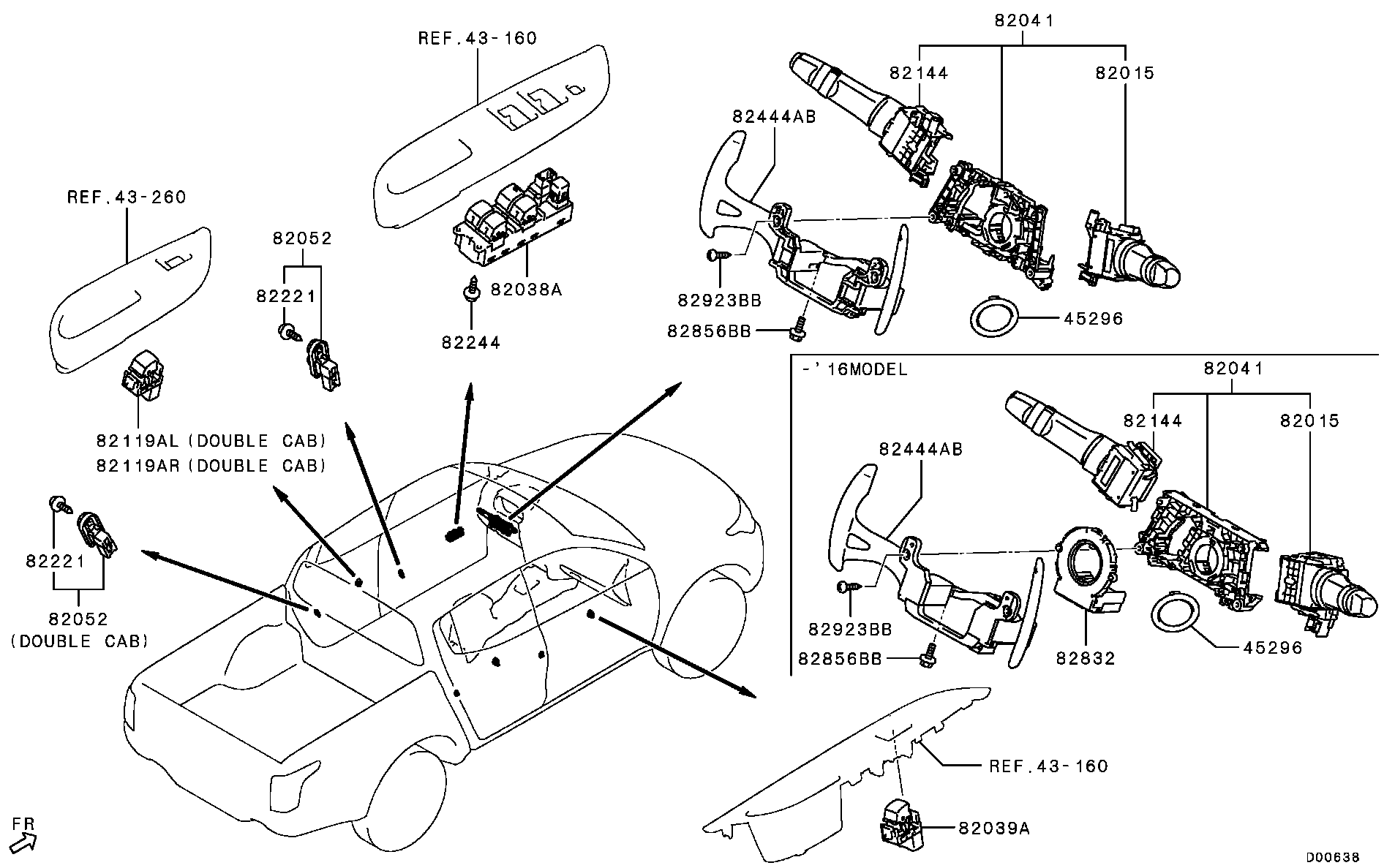

Mitsubishi L200-TRITON-STRADA-G-EXP-MMTH 2019 — Switch & Cigar Lighter / Around Column,Door

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
8608A320 SWITCH ASSY,RR DOOR POWER WINDOW,LH 1
Production:2018-11 – 2019-05
8608A320 SWITCH ASSY,RR DOOR POWER WINDOW,RH 1
Production:2018-11 – 2019-05
2401A008 SWITCH ASSY,A/T SHIFT RANGE SELECT 1
Production:2018-11 – 2019-05
8065A106XB PLUG,STEERING COLUMN COVER 1
Production:2018-11 – 2019-05 Color:BLACK
MF911069 BOLT,GEARSHIFT EQUIP 2
Note:ALL Production:2015-01 – 2019-05 Spec:FLANGE,6X20 Size:6X20 Shape:FLANGE
MS450928 SCREW,GEARSHIFT EQUIP 2
Note:ALL Production:2015-01 – 2019-05 Spec:TAPPING,5X16 Size:5X16 Shape:TAPPING Remarks:COLORED
8600A779 SWITCH,STEERING COLUMN 1
Production:2016-09 – 2019-05
8600A780 SWITCH,STEERING COLUMN 1
Production:2016-09 – 2019-05
8612A070 SWITCH,WINDSHIELD WIPER & WINDSHIELD WASHER 1
Production:2016-09 – 2019-05
8612A072 SWITCH,WINDSHIELD WIPER & WINDSHIELD WASHER 1
Production:2016-09 – 2019-05
8614A256 SWITCH,TURN SIGNAL LAMP & LIGHTING 1
Production:2016-09 – 2019-05
8614A256 SWITCH,TURN SIGNAL LAMP & LIGHTING 1
Production:2016-09 – 2019-05
8608A320 SWITCH ASSY,FR DOOR POWER WINDOW ASSISTANT SIDE 1
Production:2018-11 – 2019-05
8608A220 SWITCH,DOOR LAMP 4
Production:2018-11 – 2019-05
MN106321 SCREW,DOOR LAMP SWITCH 4
Note:ALL Production:2015-01 – 2019-05 Spec:FLANG TAPPING,5X13.5 Size:5X13.5 Shape:FLANG TAPPING
MB409436 SCREW,POWER WINDOW SWITCH 3
Note:ALL Production:2015-01 – 2019-05 Spec:TAPPING,4X12 Size:4X12 Shape:TAPPING
8608A290 SWITCH ASSY,FR DOOR POWER WINDOW DRIVER SIDE 1
Production:2018-11 – 2019-05
— Part does not apply to this vehicle configuration. 82832 —
43 160 standard — —
43 260 standard — —

Diagram

19 parts
Mitsubishi L200-TRITON-STRADA-G-EXP-MMTH 2019 — Switch & Cigar Lighter / Around Column,Door
