Open RegionYearModelModelCode Details
General 2019 L200 TRITON STRADA G EXP MMTH KL1T
Catalog: MMC202408 Color Code: U25B Frame Mask: KJ-L# Model Short: KL1T Modification: 2400DIESEL(4N15)/4WD - H-LINE(W-CAB),5FA/T RHD Options: T12: A/T SHIFT CONTROL CHANGE; SUPER SELECT 4WD; SIZE-UP TIRE (2); BRAKE PAD CHANGE; FUEL LINE COOLER; 4 SPOKE STEERING WHEEL; STEERING AUDIO SWITCH; AUDIO SYSTEM (6); POWER + HEATER + LEATHER SEAT; EMERGENCY TRIANGLE PROVISION; ELECTRONIC CHROMIC ROOM MIRROR; WOOD PRINT PANEL; SHIFT KNOB (LEATHER); FIRST-AID KIT PROVISION; PRIVACY GLASS; BUMPER CHANGE; SIDE STEP (C); DOOR MIRROR (CONVEX); BATTERY CAPACITY-UP - 2; REAR WATCH CAMERA SYSTEM; DISCHARGE HEADLAMP (C); TEL COMMUNICATION SYSTEM (B); ONE TOUCH START SYSTEM; HEADLAMP WASHER (JET TYPE); REFRIGERANT R1234YF; DUAL A/C; RR HEATER + H/DUTY HEATER; FIRST-AID KIT PROVISION + EMERG TRIANGLE PROVISION; BUMPER CHANGE + REINF CROSS MEMBER; BUMPER CHANGE + REINF CROSS MEMBER; ONE TOUCH START SYSTEM + AUTO A/C, DUAL A/C; HEADLAMP WASHER (JET TYPE) + ONE TOUCH START SYS; SUPER SELECT 4WD + WOOD PRINT PANEL; AUDIO SYSTEM (6)+ONE TOUCH START SYSTEM; STRG AUDIO SW+TEL COMMUNICATION SYS+4 SPOKE S/WHL; 4 SPOKE STEERING WHEEL+HEADLAMP WASHER (JET TYPE); DUAL A/C+REFRIGERANT R1234YF; DUAL A/C+REFRIGERANT R1234YF; DUAL A/C+REFRIGERANT R1234YF; DUAL A/C+REFRIGERANT R1234YF; DUAL A/C+REFRIGERANT R1234YF; REINF CROSS MEMBER; ENGLAND SPEC; MUST INSTALL REFRI R1234YF; MUST INSTALL SIDE STEP Production: 201501-201905 Production Date: 201902 Trim Code: 04W Year: 2019 Region: OTHER Native Region: M80

Mitsubishi L200-TRITON-STRADA-G-EXP-MMTH 2019 — Relay,Flasher & Sensor / Control Unit,Sensor(Kos,Etc.)..Club Cab

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
— Part does not apply to this vehicle configuration. 82771 —
MF911066 BOLT,KEYLESS OPERATION EQUIP 4
Production:2018-11 – 2019-05 Spec:FLANGE ANTI-CROSS,6X16 Size:6X16 Shape:FLANGE ANTI-CROSS
— Part does not apply to this vehicle configuration. 82841 —
8639A138 BRACKET,CONTROL UNIT 1
Production:2018-11 – 2019-05
8637C387 CONTROL UNIT,KEYLESS OPERATION 1
Production:2019-01 – 2019-05
— Part does not apply to this vehicle configuration. 85802B —
— Part does not apply to this vehicle configuration. 88414B —
— Part does not apply to this vehicle configuration. 85919D —
MF434103 NUT,CHASSIS ELECTRICALS 1
Note:ALL Production:2018-11 – 2019-05 Spec:FLANGE,6 Size:6 Shape:FLANGE
8637A176 BUZZER,KEYLESS OPERATION,FR 1
Production:2018-11 – 2019-05 Remarks:BOLT FIXING TYPE
8637B410 ANTENNA,KEYLESS OPERATION,FR OTR LH 1
Production:2018-11 – 2019-05
8637B410 ANTENNA,KEYLESS OPERATION,FR OTR RH 1
Production:2018-11 – 2019-05
MU481269 CLIP,CHASSIS ELECTRICALS 2
Note:ALL Production:2015-01 – 2019-05
MR288150 CLIP,CHASSIS ELECTRICALS 6
Note:ALL Production:2015-01 – 2019-05 Color:BLACK
8637B410 ANTENNA,KEYLESS OPERATION,FR INR 1
Production:2018-11 – 2019-05
8030A061 PLUG,INSTRUMENT PANEL 1
Note:DIESEL Production:2018-11 – 2019-05
8637B629 KEYLESS OPERATION KEY BOX 1
Production:2018-11 – 2019-05
42 310 standard — —
42 610 standard — —
52 150 standard — —

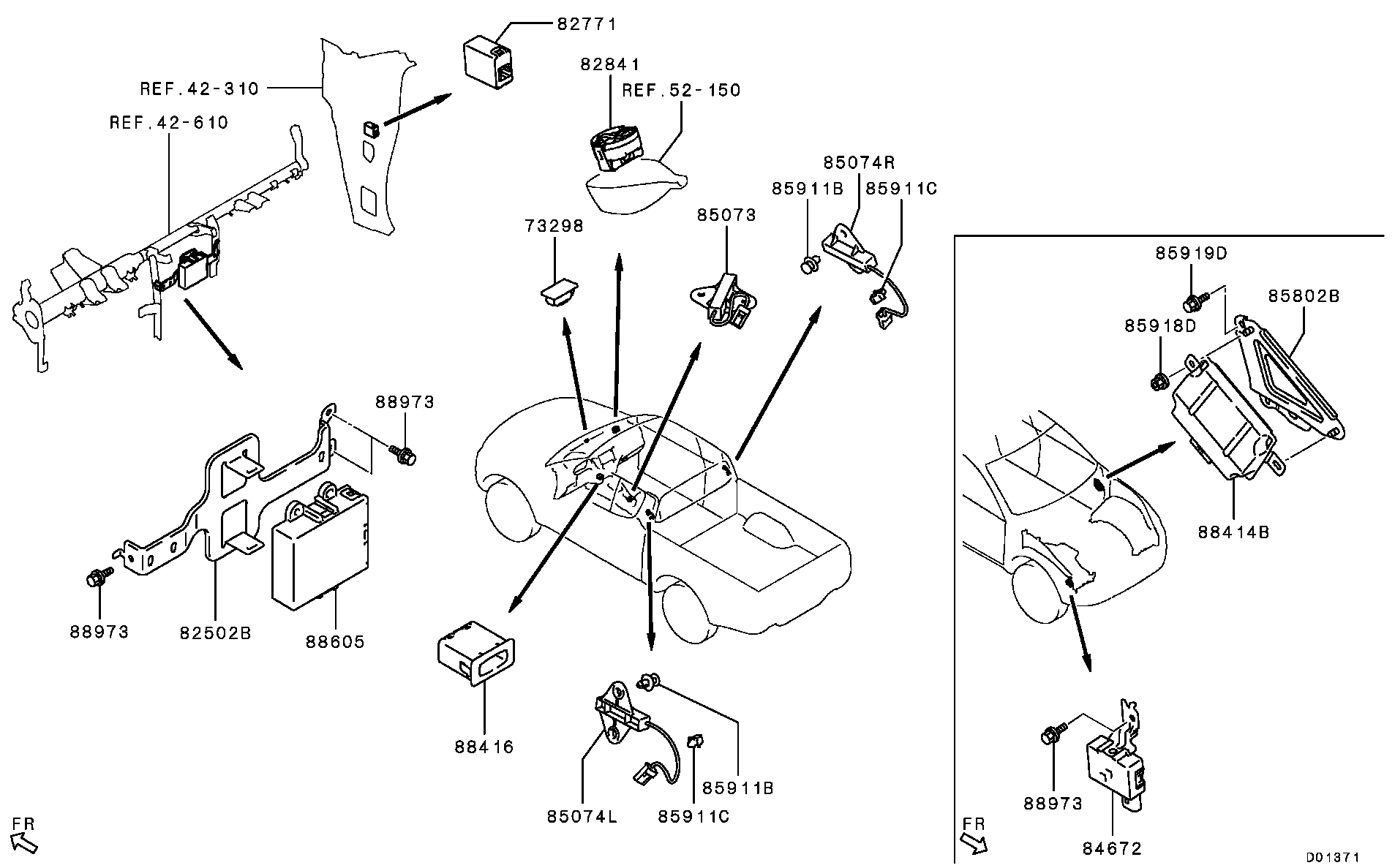

Diagram

15 parts
Mitsubishi L200-TRITON-STRADA-G-EXP-MMTH 2019 — Relay,Flasher & Sensor / Control Unit,Sensor(Kos,Etc.)..Club Cab
