Open RegionYearModelModelCode Details
Europe 2019 L200 EUR MMTH KL6T
Catalog: MMC202408 Color Code: U25B Frame Mask: KK,KL# Model Short: KL6T Modification: 2200DIESEL(4N14) - H-LINE(C-CAB),6FM/T LHD Options: S60: DIFF LOCK; BRAKE PAD CHANGE; AUTO SPEED CONTROL (= CRUISE CONTROL); SPEED LIMITER; STEERING AUDIO SWITCH; AUDIO SYSTEM (6); ELR WITH PRETENSIONER D2P1; EMERGENCY TRIANGLE PROVISION; ELECTRONIC CHROMIC ROOM MIRROR; FIRST-AID KIT PROVISION; PRIVACY GLASS; R/CONT MIRROR (CONVEX) (A); COLOR RR STEP BUMPER; REAR WATCH CAMERA SYSTEM; TEL COMMUNICATION SYSTEM (B); ONE TOUCH START SYSTEM; TAIL LAMP; REFRIGERANT R1234YF; AIR FILTER; AUTO SPEED CONT+TEL+STRG AUDIO SW+SPEED LIMITER; FIRST-AID KIT PROVISION + EMERG TRIANGLE PROVISION; AIR BAG + ELR WITH PRETENSIONER D2P1; AUDIO SYSTEM (6)+ONE TOUCH START SYSTEM; AUDIO SYSTEM (6)+ONE TOUCH START SYSTEM; AIR FILTER+REFRIGERANT R1234YF; TEL COMUNICATION SYSTEM + AIR BAG; ELECTRONIC CHROMIC ROOM MIRROR + RAIN SENSOR; AIR BAG (DRIVER,PASSENGER,SIDE,CURTAIN,KNEE); RAIN SENSOR; CENTRAL EUROPE SPEC; SOUTHERN EUROPE SPEC; MUST INSTALL REFRI R1234YF; (DUMMY) Production: 201906-202407 Production Date: 201910 Trim Code: 55X Year: 2019 Region: EU Native Region: M60

Mitsubishi L200-EUR-MMTH 2019 — Front Door Trim & Pull Handle / Power Window..Double Cab

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
MR402859 CLIP,POWER WINDOW SWITCH 2
Production:2019-06 – 2022-12
7641A066XA PANEL,FR DOOR POWER WINDOW SWITCH ASSISTANT SIDE 1
Production:2019-06 – 2021-02 Color:BLACK/SILVER
5716A349 BRACKET,FR DOOR PULL HANDLE 2
Note:DIESEL Production:2019-06 – 2021-02
MF453046 SCREW,FR DOOR TRIM 4
Note:ALL Production:2019-06 – … Spec:TAPPING,6X14 Size:6X14 Shape:TAPPING
MS480003 GROMMET,FR DOOR TRIM 4
Note:ALL Production:2019-06 – … Spec:SCREW,6,HOLE=8.5X8.5 Size:6,HOLE=8.5X8.5 Shape:SCREW
MB153448 CLIP,FR DOOR TRIM 2
Note:ALL Production:2019-06 – … Spec:4.6 Size:4.6
7221C426 TRIM,FR DOOR SASH,RH 1
Note:ALL Production:2019-06 – … Color:BLACK
7221C425 TRIM,FR DOOR SASH,LH 1
Note:ALL Production:2019-06 – … Color:BLACK
MU000573 CLIP,FR DOOR TRIM 2
Note:ALL Production:2019-06 – … Spec:7 Size:7 Color:NATURAL
MB409436 SCREW,FR DOOR TRIM 2
Note:ALL Production:2019-06 – … Spec:TAPPING,4X12 Size:4X12 Shape:TAPPING
5716A616XA HANDLE,FR DOOR INSIDE,RH 1
Production:2019-06 – 2021-02 Color:BLACK/CHROME
5716A615XA HANDLE,FR DOOR INSIDE,LH 1
Production:2019-06 – 2021-02 Color:BLACK/CHROME
MU000314 GROMMET,FR DOOR TRIM 2
Note:ALL Production:2019-06 – … Spec:SCREW Shape:SCREW
7221B054XB CAP,FR DOOR INSIDE HANDLE COVER 1
Production:2019-06 – 2021-02 Remarks:RH Color:BLACK
7221B053XB CAP,FR DOOR INSIDE HANDLE COVER 1
Production:2019-06 – 2021-02 Remarks:LH Color:BLACK
MF453080 SCREW,FR DOOR TRIM 2
Note:ALL Production:2019-06 – … Spec:TAPPING,4X20 Size:4X20 Shape:TAPPING
MF453093 SCREW,FR DOOR TRIM 2
Note:ALL Production:2019-06 – … Spec:TAPPING,5X16 Size:5X16 Shape:TAPPING Color:BLACK
MU480034 GROMMET,FR DOOR TRIM 2
Note:ALL Production:2019-06 – … Spec:SCREW,5 Size:5 Shape:SCREW
7221D736XC TRIM,FR DOOR,RH 1
Production:2019-06 – 2021-02 Spec:FABRIC Material:FABRIC Color:BLACK
7221D735XC TRIM,FR DOOR,LH 1
Production:2019-06 – 2021-02 Spec:FABRIC Material:FABRIC Color:BLACK
MU000504 CLIP,FR DOOR TRIM 16
Production:2019-06 – 2021-02 Spec:8.5 Size:8.5 Remarks:W/O PACKING Color:WHITE
5706A772 WEATHERSTRIP,FR DOOR BELT,INR RH 1
Production:2019-06 – 2021-02
5706A771 WEATHERSTRIP,FR DOOR BELT,INR LH 1
Production:2019-06 – 2021-02
7641A057XA PANEL,FR DOOR POWER WINDOW SWITCH DRIVER SIDE 1
Production:2019-06 – 2021-02 Color:BLACK/SILVER
MF453093 SCREW,FR DOOR TRIM 2
Note:ALL Production:2019-06 – … Spec:TAPPING,5X16 Size:5X16 Shape:TAPPING Color:BLACK

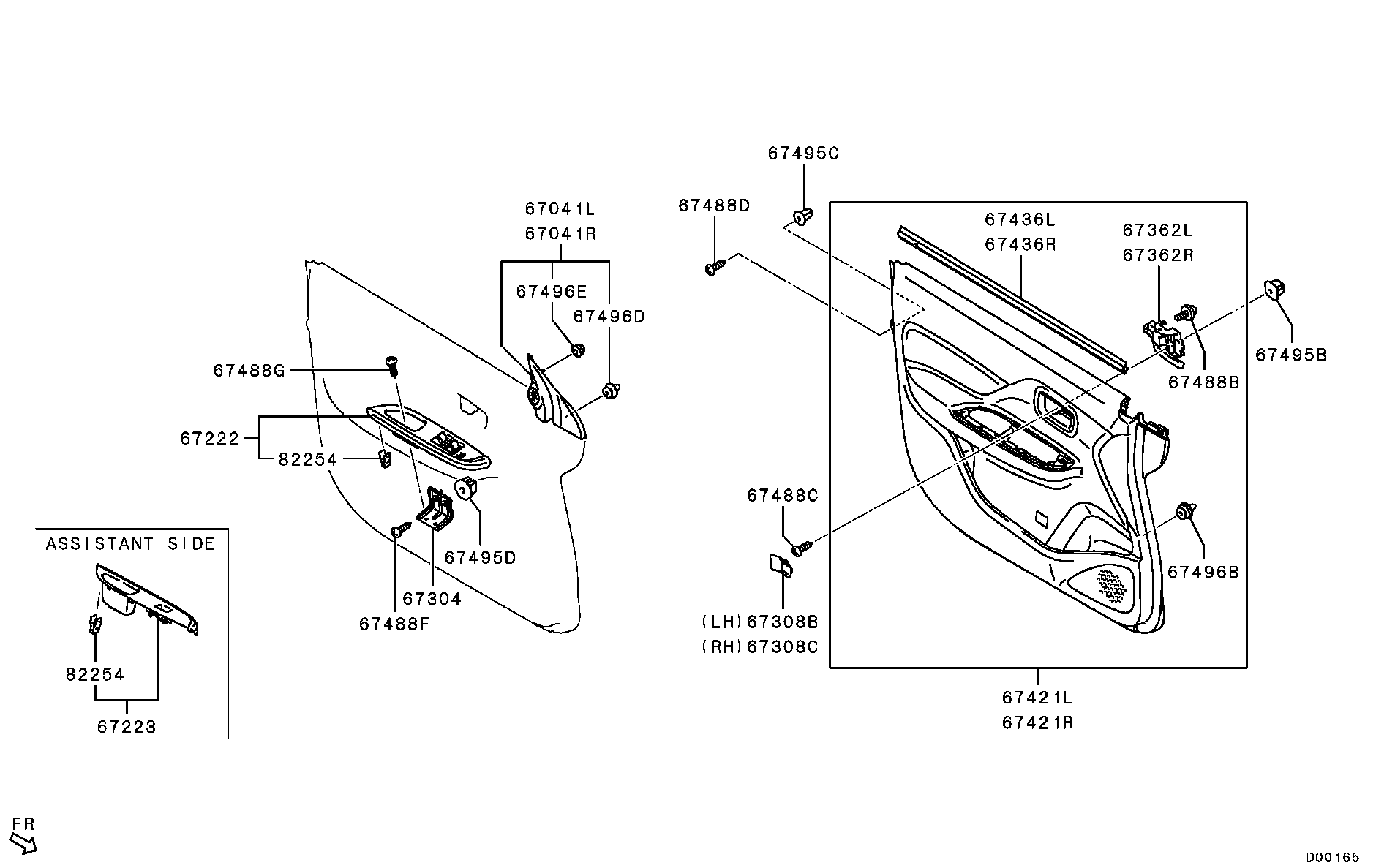

Diagram

25 parts
Mitsubishi L200-EUR-MMTH 2019 — Front Door Trim & Pull Handle / Power Window..Double Cab
