Open RegionYearModelModelCode Details
General 2013 L200 L200 SPORTERO G EXP MMTH KB4T
Catalog: MMC202408 Color Code: W32B Frame Mask: KA,B0# Model Short: KB4T Modification: 2500DIESEL/4WD(TRUCK) - U-LINE(DOUBLE CAB/ES4),5FM/T GCC Options: E93: ANTI-POLLUTION ENGINE (96/69/EC); H/DUTY SUSP (RR); ANTI-SKID BRAKE CONTROL SYSTEM; URETHANE COVER STEERING WHEEL; ELR WITH PRETENSIONER; FIRST-AID KIT; EMERGENCY TRIANGLE; EXTINGUISHER; RR WINDOW DEFOGGER; SPECIAL ORNAMENT (B); HOOK; STRIPE TAPE (A); PLATED BUMPER; HIGH-MOUNT STOP LAMP; CAPACITY-UP A/C; BENELUX SPEC HARNESS (M80H03); STABILITY CONTROL + ABS; RR UNDER VIEW MIRROR + REAR WATCH CAMERA SYSTEM; P/W + R/CONT MIR LESS; ELR W/PRETENSIONER + CTR DOOR LOCK; LEATHER + PARTITION NET; ABS + H/DUTY SUSP; A/C + HOT WIRE; AUDIO + PRETENSIONER; AUDIO + PRETENSIONER; FIRST AID KIT + EMERGENCY TRIANGLE; SPARE + AL/WHL + BXX; DOOR MIRROR + SPEAKER; LEATHER SEAT + RR HEATER; FIRST AID KIT + EMERGENCY TRIANGLE; VIN PLATE CHANGE FOR GCC; REAR BODY; TIRE PRESSURE GAUGE; TOOL SET; AIR BAG (DRIVER + PASSENGER SIDE) Production: 200505-201503 Production Date: 201306 Trim Code: 33U Year: 2013 Region: OTHER Native Region: M80

Mitsubishi L200-L200-SPORTERO-G-EXP-MMTH 2013 — Engine Control / LHD..Wire Type

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
MF240050 BOLT,ACCEL CONTROL EQUIP 2
Note:ALL Production:2006-08 – 2015-03 Spec:WASHER ASSEMBLED,8X14 Size:8X14 Shape:WASHER ASSEMBLED Remarks:4T
— Part does not apply to this vehicle configuration. 08977C —
— Part does not apply to this vehicle configuration. 08977B —
— Part does not apply to this vehicle configuration. 08342Z —
MR527100 STOPPER,ACCEL PEDAL ARM 1
Note:ALL Production:2005-05 – 2015-03
MU000310 NUT,ACCEL CONTROL EQUIP 2
Note:ALL Production:2005-05 – 2015-03 Spec:FLANGE,8 Size:8 Shape:FLANGE
— Part does not apply to this vehicle configuration. 08100 —
MF243648 BOLT,ACCEL CONTROL EQUIP 3
Note:ALL Production:2006-08 – 2015-03 Spec:WASHER ASSEMBLED,8X14 Size:8X14 Shape:WASHER ASSEMBLED
1420A024 SCREW,ACCEL CONTROL EQUIP 1
Note:ALL Production:2007-02 – 2015-03 Spec:6X30 Size:6X30
MF430724 NUT,ACCEL CONTROL EQUIP 1
Note:ALL Production:2006-08 – 2015-03 Spec:JAM,6 Size:6 Shape:JAM
MF243649 BOLT,ACCEL CONTROL EQUIP 2
Note:ALL Production:2006-08 – 2015-03 Spec:WASHER ASSEMBLED,8X16 Size:8X16 Shape:WASHER ASSEMBLED
— Part does not apply to this vehicle configuration. 08958Z —
— Part does not apply to this vehicle configuration. 08968Z —
MR992933 PEDAL,ACCEL 1
Production:2013-05 – 2013-09
MS240022 BOLT,ACCEL CONTROL EQUIP 2
Note:ALL Production:2005-12 – 2015-03 Spec:WASHER ASSEMBLED,6X20 Size:6X20 Shape:WASHER ASSEMBLED Remarks:COLORED
— Part does not apply to this vehicle configuration. 08806Z —

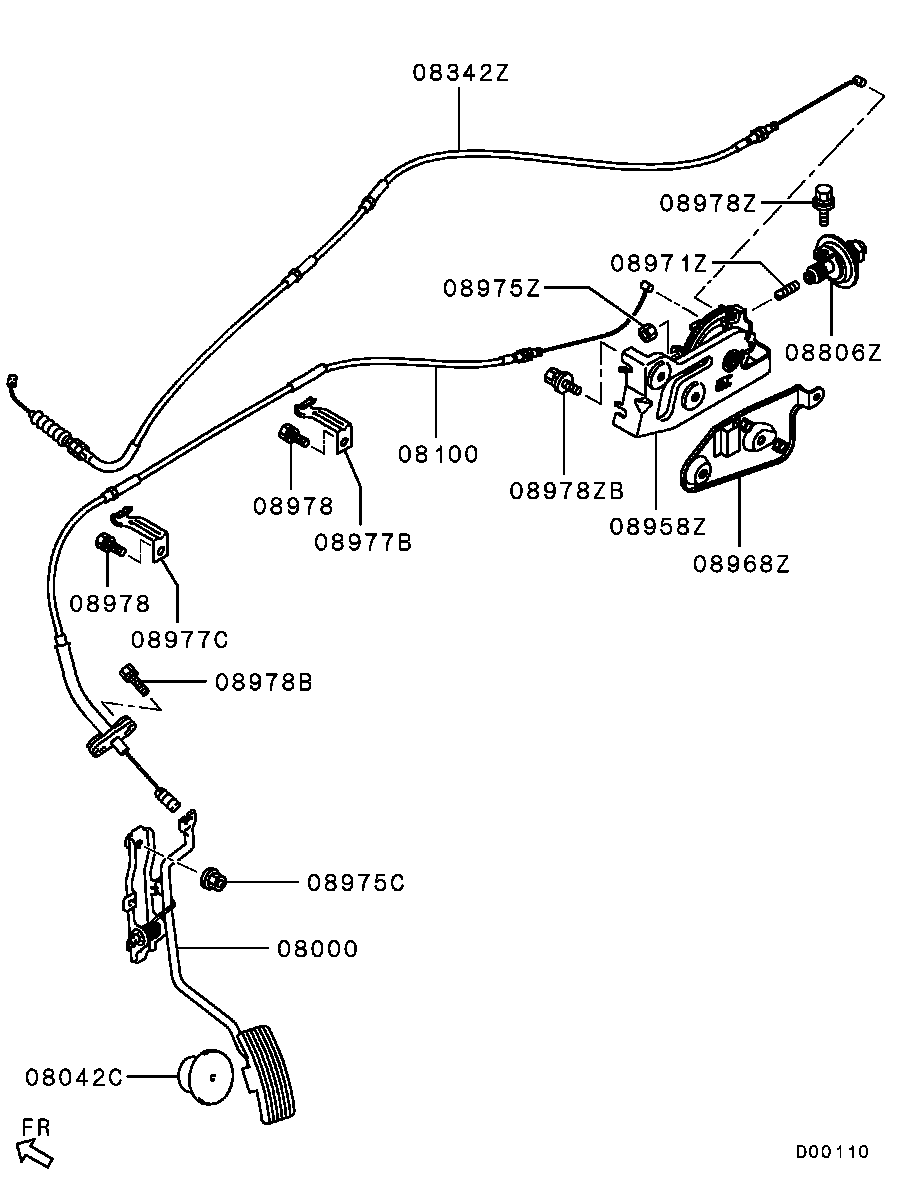

Diagram

9 parts
Mitsubishi L200-L200-SPORTERO-G-EXP-MMTH 2013 — Engine Control / LHD..Wire Type
