Open RegionYearModelModelCode Details
General 2012 LX450D 460 570 URJ201L-GNTGKV
Catalog: LEXUS202608 Engine: 5700CC 32-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 202 Trim Code: LQ21 Production: 200711-201201 Model Short: URJ201L-GNTGKV Region: OTHER Native Region: GR

Lexus LX450D-460-570 2012 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
89227-50130 COMPUTER, MULTIPLEX TILT & TELESCOPIC 1
Note:URJ20# Production:2012-01 – 2015-09
81980-60110 FLASHER ASSY, TURN SIGNAL 1
Note:URJ201..LHD Production:2012-01 – 2015-09
82673-60060 BRACKET, JUNCTION BLOCK, NO.2 1
Note:URJ201..LHD Production:2012-01 – 2015-09
90982-09019 FUSE, FUSE BLOCK 1
Note:URJ20# Production:2012-01 – 2015-09 Spec:5A,MINI FUSE,TAN,LH,RH
90982-09020 FUSE, FUSE BLOCK 1
Note:URJ20# Production:2012-01 – 2015-09 Spec:7.5A,MINI FUSE,BROWN,LH,RH
90982-09021 FUSE, FUSE BLOCK 1
Note:URJ20# Production:2012-01 – 2015-09 Spec:10A,MINI FUSE,RED,LH,RH
90982-09022 FUSE, FUSE BLOCK 1
Note:URJ20# Production:2012-01 – 2015-09 Spec:15A,MINI FUSE,BLUE,LH,RH
90982-09023 FUSE, FUSE BLOCK 1
Note:URJ20# Production:2012-01 – 2015-09 Spec:20A,MINI FUSE,YELLOW,LH,RH
90982-09024 FUSE, FUSE BLOCK 1
Note:URJ20# Production:2012-01 – 2015-09 Spec:25A,MINI FUSE,LH
90982-09025 FUSE, FUSE BLOCK 1
Note:URJ20# Production:2012-01 – 2015-09 Spec:30A,MINI FUSE,GRN,LH,RH
82733-60F81 BLOCK, COWL SIDE JUNCTION, LH 1
Note:URJ201..GCC Production:2012-01 – 2013-01 Spec:GCC SPEC(EXCEPT SAUDI ARABIA)
82673-60040 BRACKET, JUNCTION BLOCK, NO.1 1
Note:URJ201..LHD Production:2012-01 – 2015-09
82731-60252 BLOCK, COWL SIDE JUNCTION, RH 1
Note:URJ201..LHD Production:2012-01 – 2012-12 Replacements:82731-60253 (fitment: unknown)
89940-60160 COMPUTER ASSY, HEADLAMP SWIVEL 1
Note:URJ201..LHD Production:2012-01 – 2015-09
89533-60242 COMPUTER, 4 WHEEL DRIVE CONTROL 1
Note:URJ20# Production:2012-01 – 2015-09 Replacements:89533-60390 (fitment: unknown)
85903-52020 COMPUTER SUB-ASSY, SHIFT LOCK CONTROL 1
Note:URJ20# Production:2012-01 – 2015-09
84550-16060 SWITCH ASSY, PARKING BRAKE 1
Note:URJ201..LHD Production:2012-01 – 2015-09
85943-60050 COMPUTER, WINDSHIELD WIPER 1
Note:URJ201..LHD Production:2012-01 – 2015-09
89181-60080 COMPUTER, STEERING CONTROL 1
Note:URJ201..LHD Production:2012-01 – 2015-09
84345-51010 ADJUSTER, STOP LAMP SWITCH MOUNTING 1
Note:URJ20# Production:2012-01 – 2015-09
84340-69075 SWITCH ASSY, STOP LAMP 1
Note:URJ20# Production:2012-01 – 2015-09
89815-60140 COMPUTER, SEAT BELT CONTROL 1
Note:URJ201..GCC Production:2012-01 – 2015-09 Spec:GCC SPEC(EXCEPT SAUDI ARABIA)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER
85999-60140 BRACKET, RELAY 1
Note:URJ201..GCC Production:2012-01 – 2015-09 Spec:GCC SPEC(EXCEPT SAUDI ARABIA)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER
89111-60080 COMPUTER, NETWORK GATEWAY 1
Note:URJ201..LHD Production:2012-01 – 2014-06 Replacements:89111-60110 (fitment: unknown)
85535-60110-C0 COVER, POWER OUTLET SOCKET, CENTER 1
Note:URJ201..GCC Production:2012-01 – 2015-09 Spec:BLACK,TRIM2#,3#,4#,5#
85530-60110 SOCKET ASSY, POWER OUTLET, NO.2 1
Note:URJ20# Production:2012-01 – 2015-09
895A0-60040 RELAY ASSY, STOP LAMP CONTROL 1
Note:URJ201..LHD Production:2012-01 – 2015-09
94150-80600 standard —
90159-60602 standard —
91673-80616 standard —
90159-50311 standard —
93315-14012 standard —
91673-A0622 standard —
94151-80600 standard —
90119-06942 standard —
93219-15010 standard —

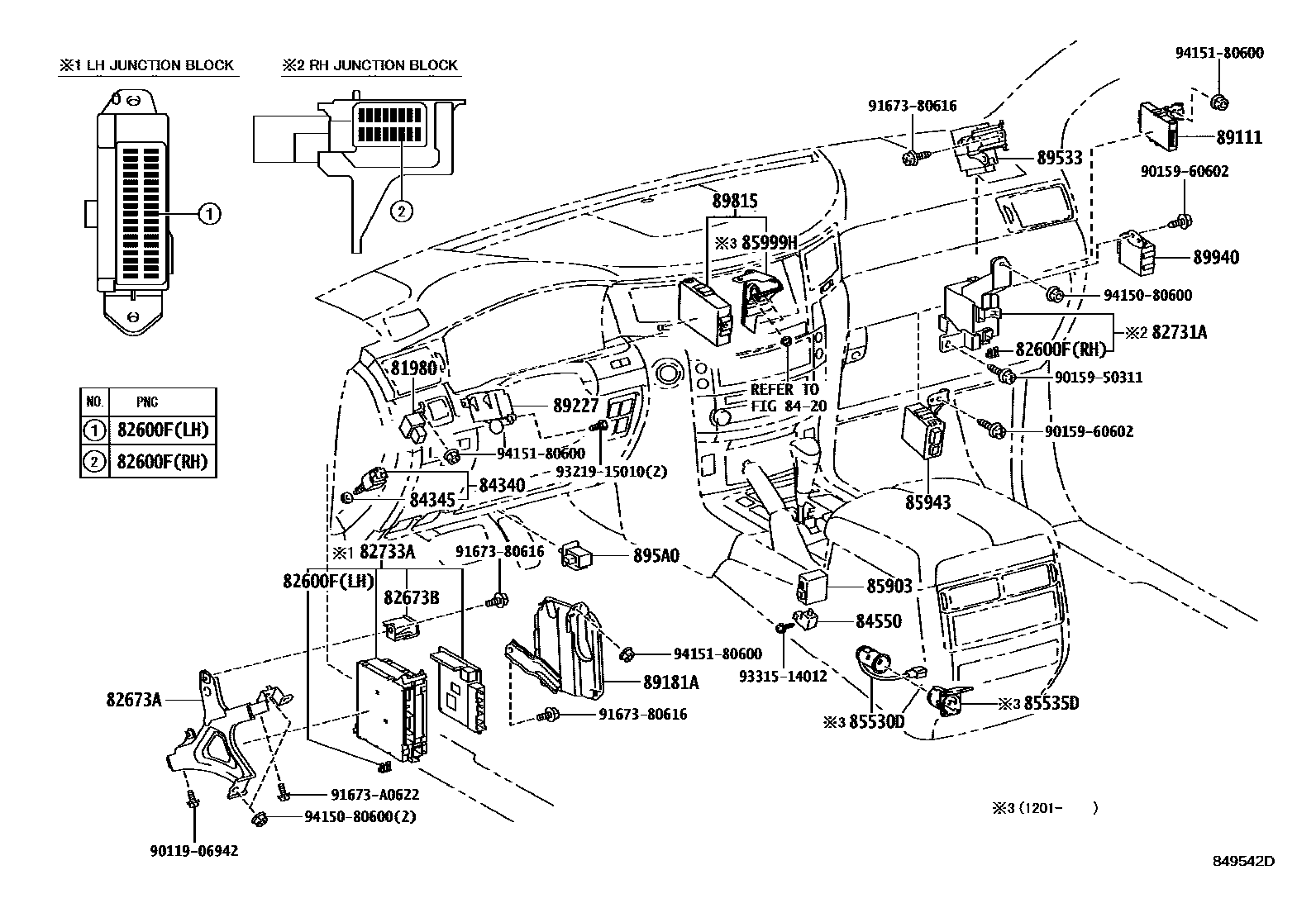

Diagram

36 parts
Lexus LX450D-460-570 2012 — Switch & Relay & Computer
