Lexus LX450D-460-570 2020 — Roof Panel & Back Panel
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 63104-60060 | REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | 1 | |
Note:URJ201 Production:2015-09 – … | |||
| 63149-60010 | REINFORCEMENT, ROOF PANEL, NO.1 REAR | 1 | |
Note:URJ201 Production:2015-09 – … | |||
| 63102-60110 | PANEL SUB-ASSY, WINDSHIELD HEADER | 1 | |
Note:URJ201 Production:2015-09 – … | |||
| 63105-60280 | FRAME SUB-ASSY, BACK DOOR OPENING | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 63111-60580 | PANEL, ROOF | 1 | |
Note:URJ201..ARL,GCC Production:2015-09 – … | |||
| 63107-60040 | REINFORCEMENT, ROOF PANEL, NO.2 | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 63169-60020 | PLATE, ROOF PANEL REINFORCEMENT, RH | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| 63179-60010 | PLATE, ROOF PANEL REINFORCEMENT, LH | 1 | |
Note:URJ201,VDJ201 Production:2015-09 – … | |||
| — | Part does not apply to this vehicle configuration. | 63187A | — |
| — | Part does not apply to this vehicle configuration. | 63185H | — |
| — | Part does not apply to this vehicle configuration. | 63479 | — |
| 63129-60030 | PROTECTOR, WINDSHIELD HEADER | 2 | |
Note:URJ201 Production:2019-04 – … | |||
| 90119-08C47 | standard | — | |

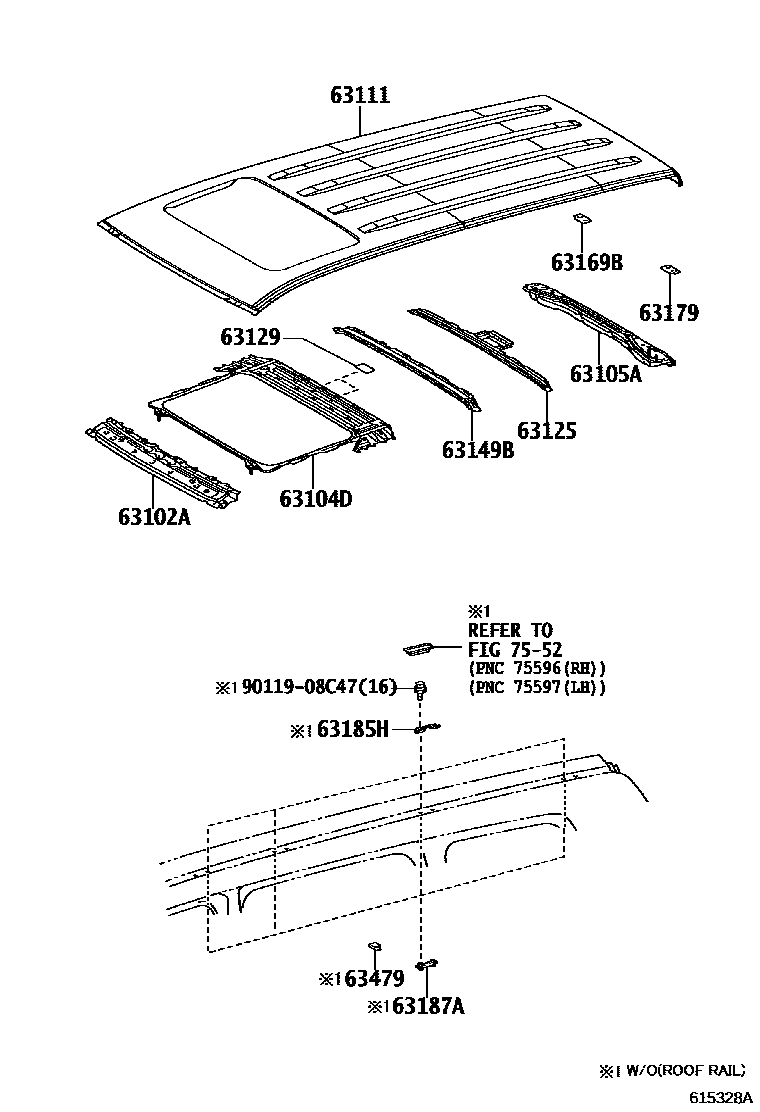

Diagram
10 parts
