Open RegionYearModelModelCode Details
USA / Canada 2009 RX350 450H GYL15L-AWXGKA
Catalog: LEXUS202608 Engine: 3500CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Vehicle Grade: STANDARD TYPE Color Code: 077 Trim Code: LB00 Production: 200903-201203 Model Short: GYL15L-AWXGKA Region: NA Native Region: US

Lexus RX350-450H 2009 — Windshield Washer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85381-12300 NOZZLE SUB-ASSY, WASHER 2
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 Spec:ANGLE 0
85381-12310 NOZZLE SUB-ASSY, WASHER 2
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 Spec:ANGLE -2
85381-12320 NOZZLE SUB-ASSY, WASHER 2
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 Spec:ANGLE +2
85330-60190 MOTOR AND PUMP ASSY, WINDSHIELD WASHER 1
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03
85319-33230 PACKING, FRONT WASHER 1
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03
85315-48180 JAR ASSY, WINDSHIELD WASHER 1
Note:GYL1#..JPP Production:2009-03 – 2012-03
85386-60070 CAP, WINDSHIELD WASHER JAR 1
Note:GYL1#..JPP Production:2009-03 – 2012-03
85336-60300 PROTECTOR, WASHER JAR 1
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03
85349-32150 JOINT, WINDSHIELD WASHER HOSE, NO.1 1
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03
85375-16160 JOINT, WINDSHIELD WASHER ELBOW, NO.1 1
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03
85349-32150 JOINT, WINDSHIELD WASHER HOSE, NO.2 1
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03
85321-28020 VALVE, WINDSHIELD WASHER HOSE 1
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03
90099-33080 HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) 1
Note:GYL1#..JPP Production:2009-03 – 2012-03 Spec:L=1450(*H,L=280)
90099-33080 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 1
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 Spec:L=1450(*H,L=1340)
90099-33080 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 1
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 Spec:L=1450(*H,L=200)
90099-33080 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 1
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 Spec:L=1450(*H,L=700)
90099-33080 HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) 2
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 Spec:L=1450(*H,L=560)
85387-48320 CLAMP NO.1 (FOR WINDSEIELD WASHER) 1
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03
85397-52100 SWITCH ASSY,LEVEL WARNING 1
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03
85319-48180 HOSE, INLET 1
Note:GYL1#..JPP Production:2009-03 – 2012-03
82711-10500 standard —
82711-1E350 standard —
82711-3A610 standard —
90119-06442 standard —
90179-06274 standard —
90469-07011 standard —

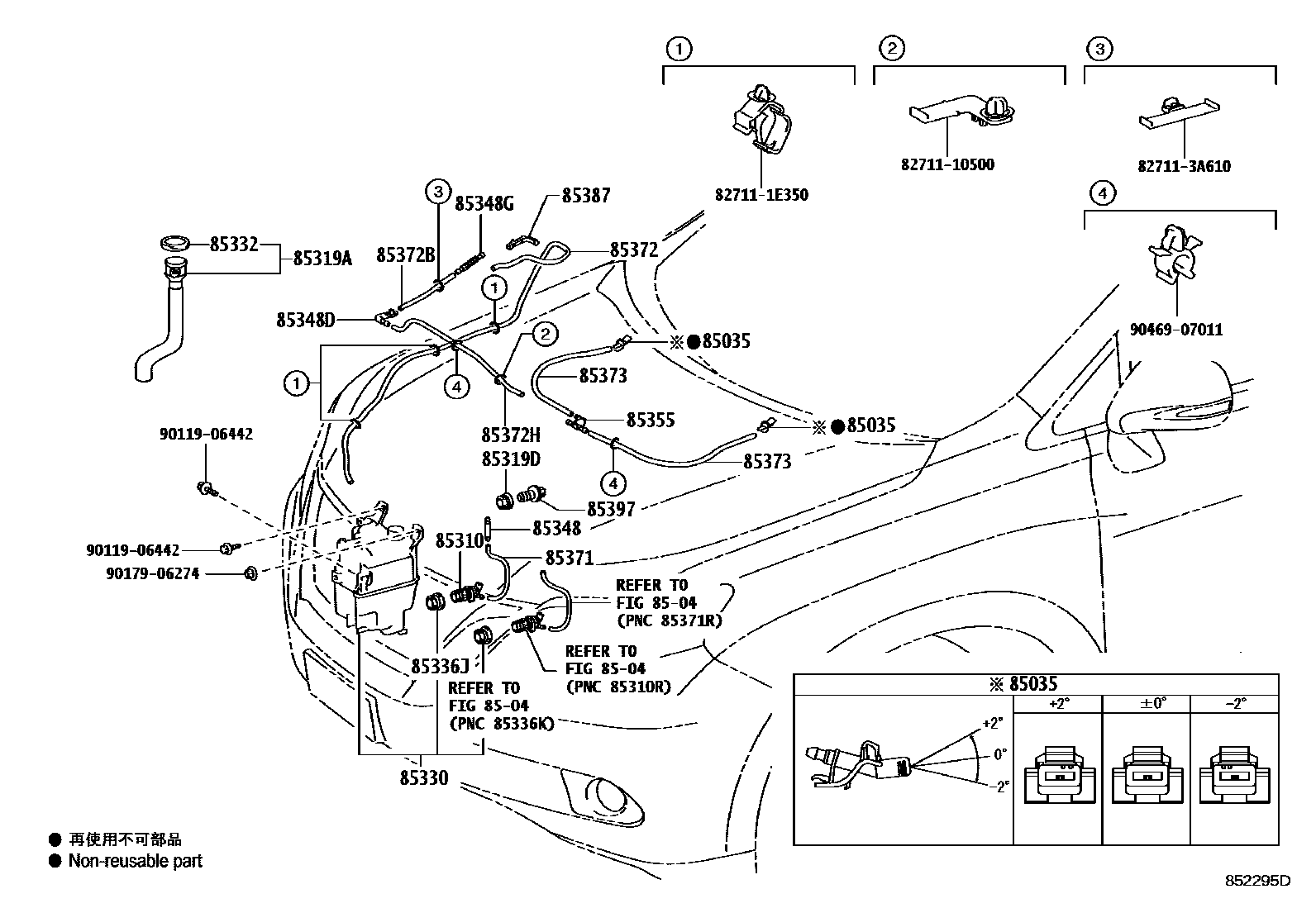

Diagram

26 parts
Lexus RX350-450H 2009 — Windshield Washer
