Open RegionYearModelModelCode Details
USA / Canada 2009 RX350 450H GYL15L-AWXGKA
Catalog: LEXUS202608 Engine: 3500CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Vehicle Grade: STANDARD TYPE Color Code: 077 Trim Code: LB00 Production: 200903-201203 Model Short: GYL15L-AWXGKA Region: NA Native Region: US

Lexus RX350-450H 2009 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
86516-48020 CONDENSER 1
Note:GYL1#..JPP Production:2009-03 – 2010-08
23080-31151 RESISTER, FUEL PUMP 1
Note:2GRFXE..GYL1#..JPP Production:2009-03 – 2010-05 Replacements:23080-31152 (fitment: unknown)
89257-26020 COMPUTER, COOLING FAN 2
Note:GYL1#..JPP Production:2009-03 – 2012-03
— Part does not apply to this vehicle configuration. 85942 —
90119-06915 standard —
90068-04037 standard —

Diagram

5 parts

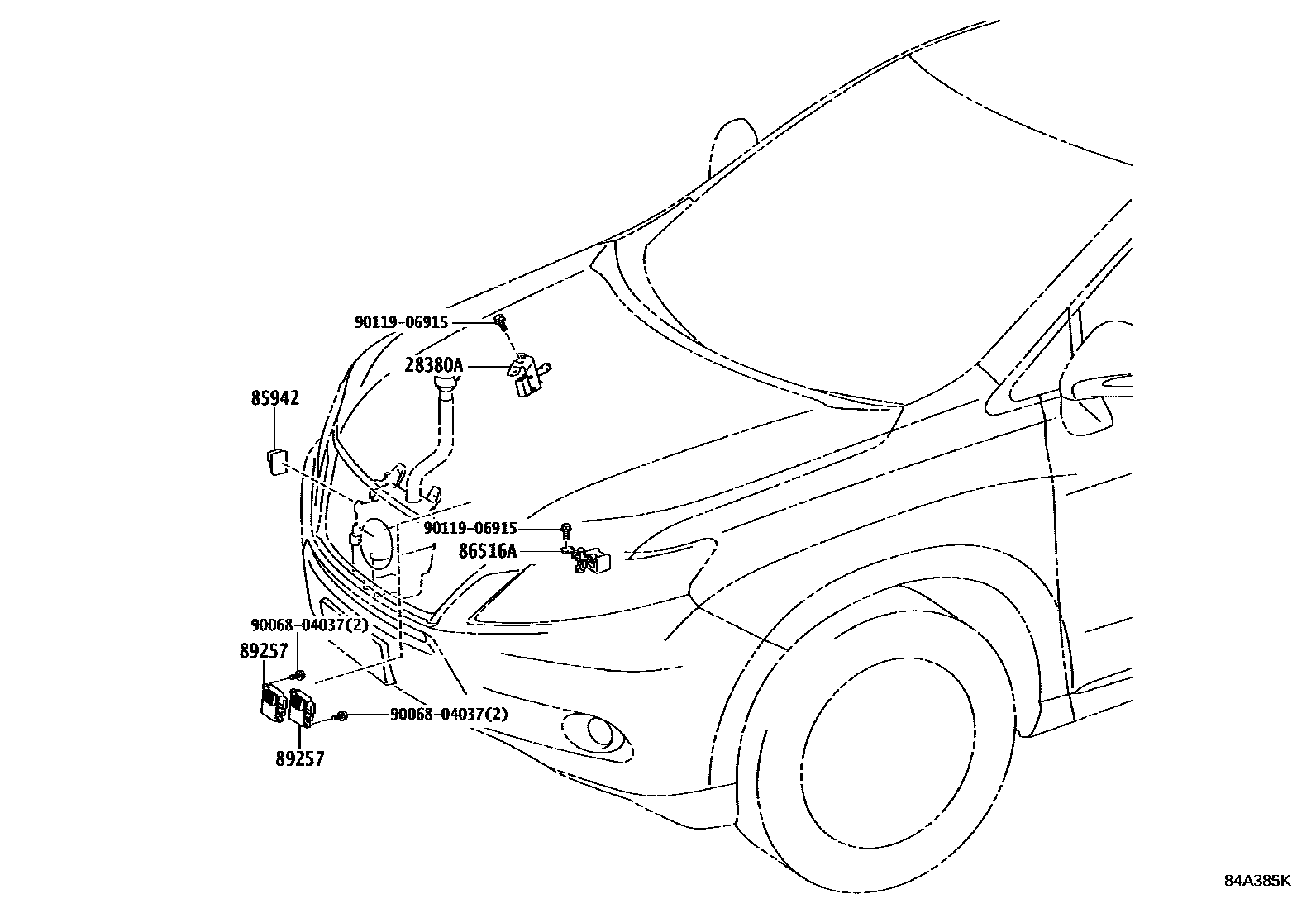

Lexus RX350-450H 2009 — Switch & Relay & Computer
