Lexus RX-SERIES 2017 — Interior Lamp
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 81340-30110 | LAMP ASSY, VANITY | 2 | |
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 | |||
| 90981-11062 | BULB (FOR VANITY LAMP) | 2 | |
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 Spec:12V 8W | |||
| 81360-48120-A0 | LAMP ASSY, SPOT | 1 | |
Note:AGL2#,GGL25,GYL25..STD Production:2015-09 – 2019-08 Spec:ECRU,TRIM00,01,02,03,04,5#,6# | |||
| 81230-30200 | LAMP ASSY, FRONT DOOR COURTESY, LH | 1 | |
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 Spec:BULB TYPE | |||
| 81230-30200 | LAMP ASSY, FRONT DOOR COURTESY, RH | 1 | |
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 Spec:BULB TYPE | |||
| 90981-12010 | BULB(FOR FRONT DOOR COURTESY LAMP LH) | 1 | |
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 Spec:12V 5W | |||
| 90981-12010 | BULB(FOR FRONT DOOR COURTESY LAMP RH) | 1 | |
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 Spec:12V 5W | |||
| 81230-30200 | LAMP ASSY, REAR DOOR COURTESY, LH | 1 | |
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 Spec:BULB TYPE | |||
| 81230-30200 | LAMP ASSY, REAR DOOR COURTESY, RH | 1 | |
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 Spec:BULB TYPE | |||
| 90981-12010 | BULB(FOR REAR DOOR COURTESY LAMP LH) | 1 | |
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-04 Spec:12V 5W | |||
| 90981-12010 | BULB(FOR REAR DOOR COURTESY LAMP RH) | 1 | |
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-04 Spec:12V 5W | |||
| 81080-30010 | LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | 1 | |
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 | |||
| 81080-58100 | LAMP ASSY, GLOVE BOX | 1 | |
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2017-04 | |||
| 81080-58100 | LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | 1 | |
Note:AGL2#,GGL25,GYL25 Production:2016-12 – 2017-03 | |||
| 81080-58100 | LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | 1 | |
Note:AGL2#,GGL25,GYL25 Production:2016-12 – 2017-03 | |||
| 81080-58100 | LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | 2 | |
Note:AGL2#,GGL25,GYL25 Production:2016-11 – 2017-04 | |||
| — | Part does not apply to this vehicle configuration. | 81081 | — |
| 81330-58010 | LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | 3 | |
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 | |||
| 99132-12050 | BULB, LUGGAGE COMPARTMENT LAMP | 3 | |
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 Spec:12V 5W | |||

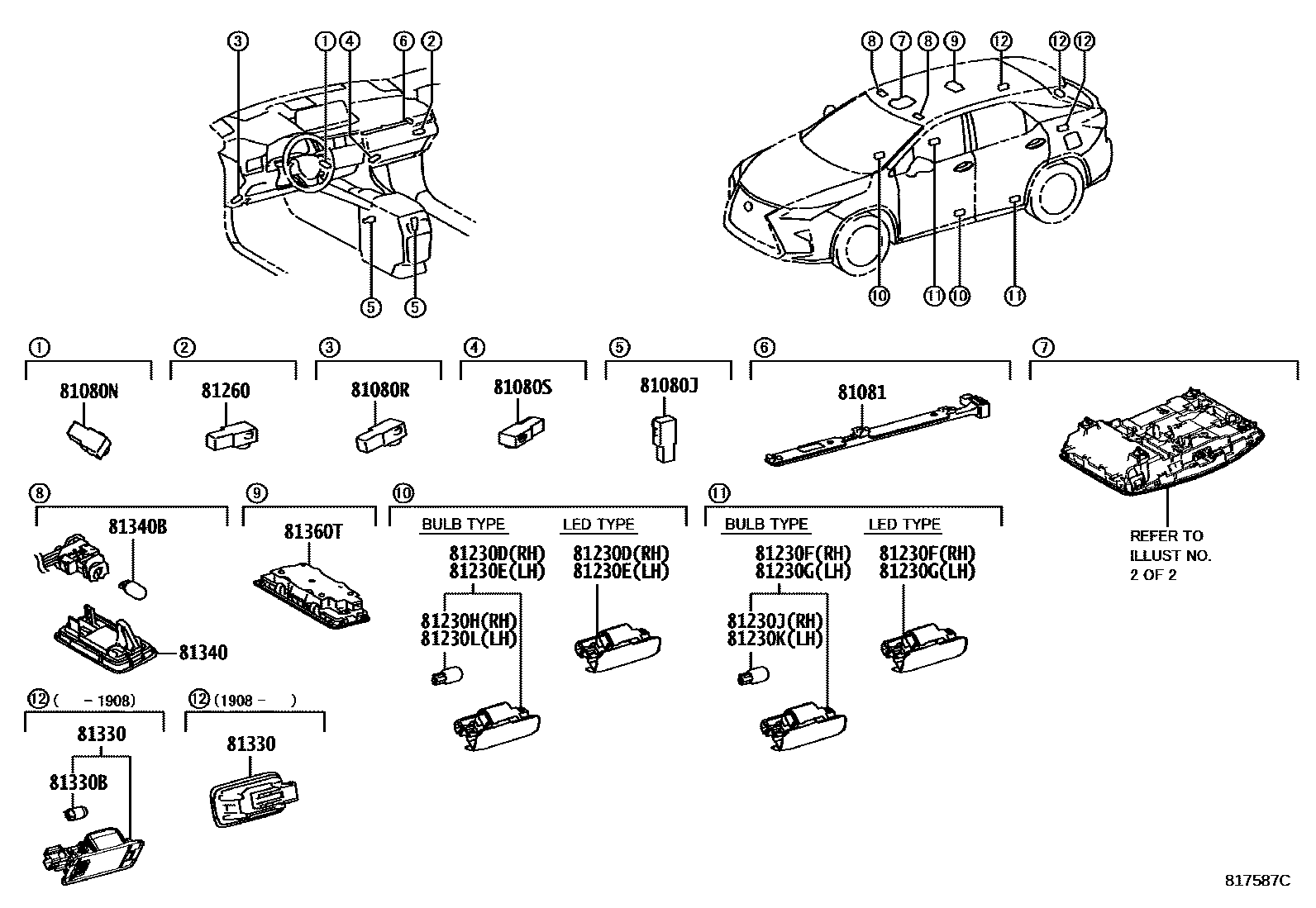

Diagram
18 parts
