Open RegionYearModelModelCode Details
Europe 2017 RX SERIES AGL25L-AWTGZW
Catalog: LEXUS202608 Engine: 2000CC 16-VALVE DOHC EFI TURBO Transmission Description: AUTOMATIC TRANSMISSION Body Description: WAGON Vehicle Grade: STANDARD TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Color Code: 1J7 Trim Code: LB04 Production: 201509-201908 Model Short: AGL25L-AWTGZW Region: EU Native Region: EU

Lexus RX-SERIES 2017 — Front Door Panel & Glass

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
67001-48160 PANEL SUB-ASSY, FRONT DOOR, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67002-48160 PANEL SUB-ASSY, FRONT DOOR, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67837-48030 SEAL, FRONT DOOR VENT, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67838-48020 SEAL, FRONT DOOR VENT, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
68610-48080 CHECK ASSY, FRONT DOOR, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
68620-48060 CHECK ASSY, FRONT DOOR, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67111-48080 PANEL, FRONT DOOR, OUTER RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67112-48080 PANEL, FRONT DOOR, OUTER LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67401-48020 FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67402-48020 FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
87963-48020 COVER, OUTER MIRROR INSTALL HOLE, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
87964-48020 COVER, OUTER MIRROR INSTALL HOLE, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
68215-48030 WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
68216-48030 WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
68101-48180 GLASS SUB-ASSY, FRONT DOOR, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 Replacements:68101-48181 (fitment: unknown)
68102-48170 GLASS SUB-ASSY, FRONT DOOR, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 Replacements:68102-48171 (fitment: unknown)
68125-48010 GLASS, FRONT DOOR FIX WINDOW, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
68126-48010 GLASS, FRONT DOOR FIX WINDOW, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
68141-48080 RUN, FRONT DOOR GLASS, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
68151-48080 RUN, FRONT DOOR GLASS, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67663-48040 GARNISH, DOOR FRAME, UPPER RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67664-48040 GARNISH, DOOR FRAME, UPPER LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67833-47010 COVER, FRONT DOOR SERVICE HOLE, NO.2 RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67833-47010 COVER, FRONT DOOR SERVICE HOLE, NO.2 LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67855-48010 PROTECTOR, FRONT DOOR PANEL, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67856-48010 PROTECTOR, FRONT DOOR PANEL, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67403-48080 FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67404-48080 FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67837-48050 SEAL, FRONT DOOR DUST PROOF 6
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67867-12150 RETAINER, FRONT DOOR WEATHERSTRIP, RH 17
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67867-12150 RETAINER, FRONT DOOR WEATHERSTRIP, LH 17
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67861-48110 WEATHERSTRIP, FRONT DOOR, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67862-48110 WEATHERSTRIP, FRONT DOOR, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67811-30100 PAD, FRONT DOOR SILENCER 2
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67867-48030 CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) 8
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67869-20030 CLIP, FRONT DOOR WEATHERSTRIP 6
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
67923-48060 CUSHION, FRONT DOOR STIFFENER, NO.1 2
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
75921-48060 TAPE, BLACK OUT, NO.1 RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
75922-48060 TAPE, BLACK OUT, NO.1 LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
75965-48010 STRIPE, FRONT DOOR NO.4 RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
75966-48010 STRIPE, FRONT DOOR NO.4 LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
75985-48050 STRIPE, FRONT DOOR, NO.3 RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
75986-48050 STRIPE, FRONT DOOR, NO.3 LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
87912-48030 PROTECTOR, OUTER MIRROR 4
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
— Part does not apply to this vehicle configuration. 67715 —
67831-48070 COVER, FRONT DOOR SERVICE HOLE, RH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2018-04 Replacements:67831-48071 (fitment: unknown)
67832-48070 COVER, FRONT DOOR SERVICE HOLE, LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2018-04 Replacements:67832-48071 (fitment: unknown)
90467-09206 CLIP(FOR FRONT DOOR SERVICE HOLE COVER) 10
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
90109-08295 standard —
90119-06983 standard —
90151-50026 standard —
90159-60303 standard —
90189-04200 standard —
67869-47010 standard —
94151-80600 standard —
93560-54025 standard —
68714-50040 standard —
90541-09069 standard —
90950-01506 standard —
90950-01958 standard —
90950-01A02 standard —
90950-01620 standard —
82711-14760 standard —
90189-06227 standard —

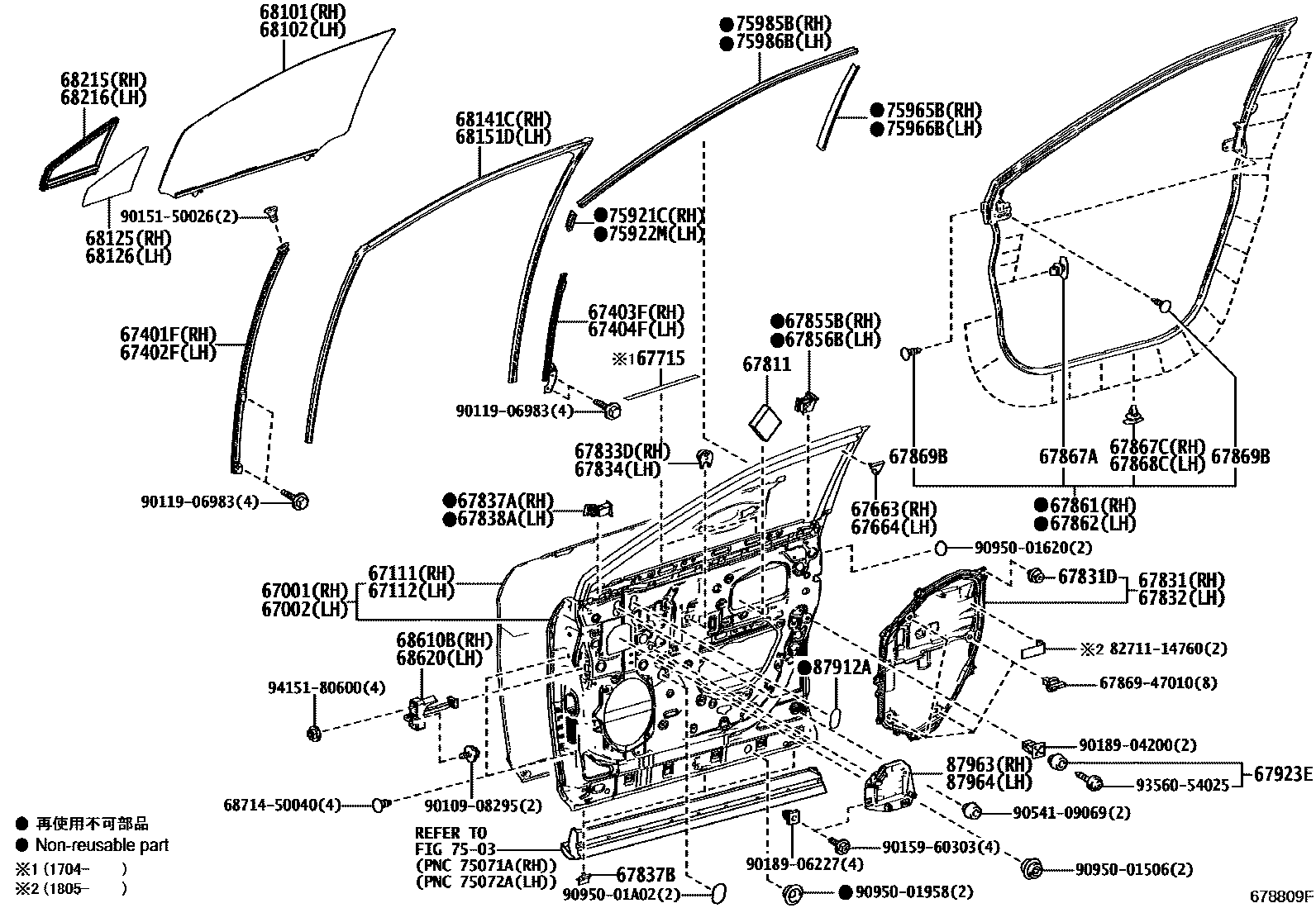

Diagram

63 parts
Lexus RX-SERIES 2017 — Front Door Panel & Glass
