Open RegionYearModelModelCode Details
Europe 2017 RX SERIES AGL25L-AWTGZW
Catalog: LEXUS202608 Engine: 2000CC 16-VALVE DOHC EFI TURBO Transmission Description: AUTOMATIC TRANSMISSION Body Description: WAGON Vehicle Grade: STANDARD TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Color Code: 1J7 Trim Code: LB04 Production: 201509-201908 Model Short: AGL25L-AWTGZW Region: EU Native Region: EU

Lexus RX-SERIES 2017 — Armrest & Visor

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
74221-48040-E0 COVER, DOOR ARMREST, RH 1
Note:AGL2#,GGL25,GYL25..STD Production:2015-09 – 2019-08 Spec:NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
74222-48040-E0 COVER, DOOR ARMREST, LH 1
Note:AGL2#,GGL25,GYL25..STD Production:2015-09 – 2019-08 Spec:NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
74261-48030-E0 COVER, REAR DOOR ARMREST, RH 1
Note:AGL2#,GGL25,GYL25..STD Production:2015-09 – 2019-08 Spec:NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
74262-48030-E0 COVER, REAR DOOR ARMREST, LH 1
Note:AGL2#,GGL25,GYL25..STD Production:2015-09 – 2019-08 Spec:NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
74271-48110 PANEL, REAR DOOR ARMREST BASE, UPPER RH 2
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-01 Replacements:74271-48111 (fitment: unknown)
74271-48110 PANEL, REAR DOOR ARMREST BASE, UPPER LH 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 Replacements:74271-48111 (fitment: unknown)
74231-48190 PANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 Replacements:74231-48191 (fitment: unknown)
74232-48180 PANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08 Replacements:74232-48181 (fitment: unknown)
90468-08048 standard —

Diagram

9 parts

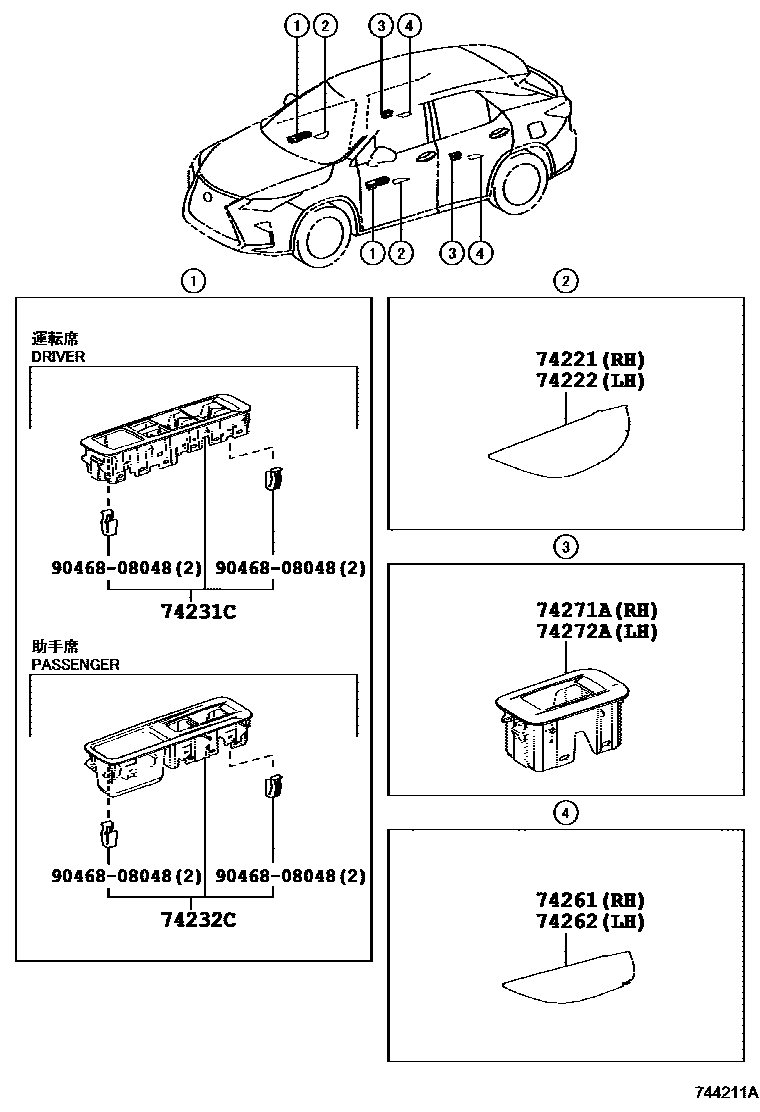

Lexus RX-SERIES 2017 — Armrest & Visor
